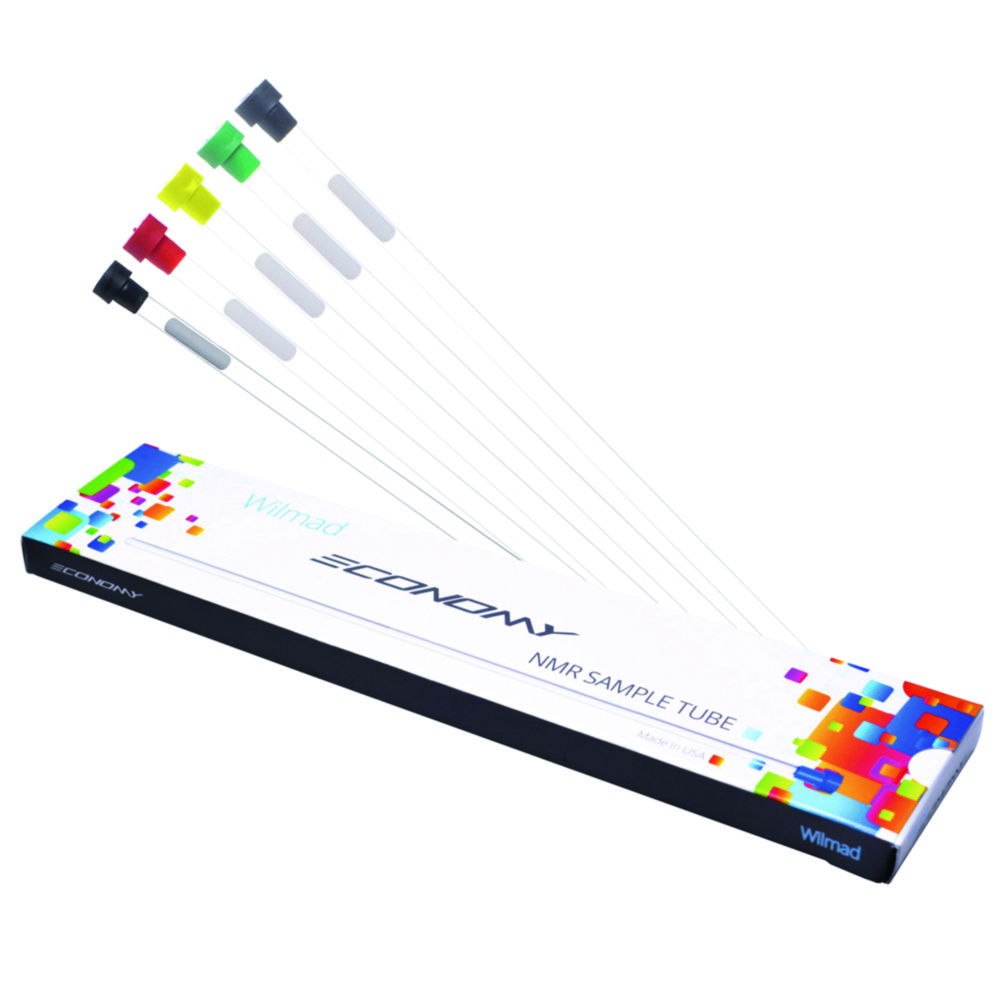

NMR Tubes 5 mm, Wilmad, Economy
The thin walled Wilmad Economy NMR tubes are designed for routine use in all NMR spectrometers. They fit tightly in any spinner turbine and have zero NMR background. For experiments with small organic molecules (Molecular Weight ~500) at ambient temperatures. Cooling/heating of these tubes may lead to breakage.
- Made from borosilicate glass, ASTM E438 Type 1 Class B standard
- Camber and concentricity values listed are the Total Indicator Reading (TIR)
- Includes disposable caps
- External diameter: 4.947 ±0.019 mm
- Internal diameter: 4.1 mm
- Wall thickness: 0.43 mm
Toote variatsioonid
| Catalog number | PK | Camber | Concentricity | Ext. Ø | Int. Ø | Length | Material | Wall thickness | Tolerance ext. Ø | Max. frequency | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.287 513 | 1.00 | 50 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 100 MHz | ||
| 6.287 516 | 1.00 | 25 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 200 MHz | ||
| 6.287 514 | 1.00 | 50 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 100 MHz | ||
| 6.287 515 | 1.00 | 25 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 200 MHz | ||
| 6.287 517 | 1.00 | 13 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 300 MHz | ||
| 6.287 519 | 1.00 | 13 µm | 13 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 400 MHz | ||
| 6.287 518 | 1.00 | 13 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 300 MHz | ||
| 6.287 520 | 1.00 | 13 µm | 13 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 400 MHz | ||
| 6.287 521 | 1.00 | 6 µm | 13 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 500 MHz | ||
| 6.287 525 | 1.00 | 3.8 µm | 2.5 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 700 MHz | ||
| 6.287 523 | 1.00 | 3.8 µm | 3.8 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | ||
| 6.287 522 | 1.00 | 6 µm | 13 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 500 MHz | ||
| 6.287 526 | 1.00 | 3.8 µm | 2.5 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 700 MHz | ||
| 4.683 485 | 5.00 | 3.8 µm | 2.5 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 700 MHz | ||
| 4.683 482 | 5.00 | 6 µm | 13 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 500 MHz | ||
| 4.683 480 | 5.00 | 13 µm | 13 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 400 MHz | ||
| 4.683 478 | 5.00 | 13 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 300 MHz | ||
| 4.683 470 | 5.00 | 25 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 200 MHz | ||
| 4.683 460 | 5.00 | 50 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 100 MHz | ||
| 4.683 479 | 5.00 | 13 µm | 13 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 400 MHz | ||
| 4.683 481 | 5.00 | 6 µm | 13 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 500 MHz | ||
| 4.683 477 | 5.00 | 13 µm | 51 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 300 MHz | ||
| 4.683 483 | 5.00 | 3.8 µm | 3.8 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | ||
| 6.287 524 | 1.00 | 3.8 µm | 3.8 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | ||
| 4.683 486 | 5.00 | 3.8 µm | 2.5 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 700 MHz | ||
| 4.683 471 | 5.00 | 25 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 200 MHz | ||
| 4.683 461 | 5.00 | 50 µm | 51 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 100 MHz | ||
| 4.683 484 | 5.00 | 3.8 µm | 3.8 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz |
