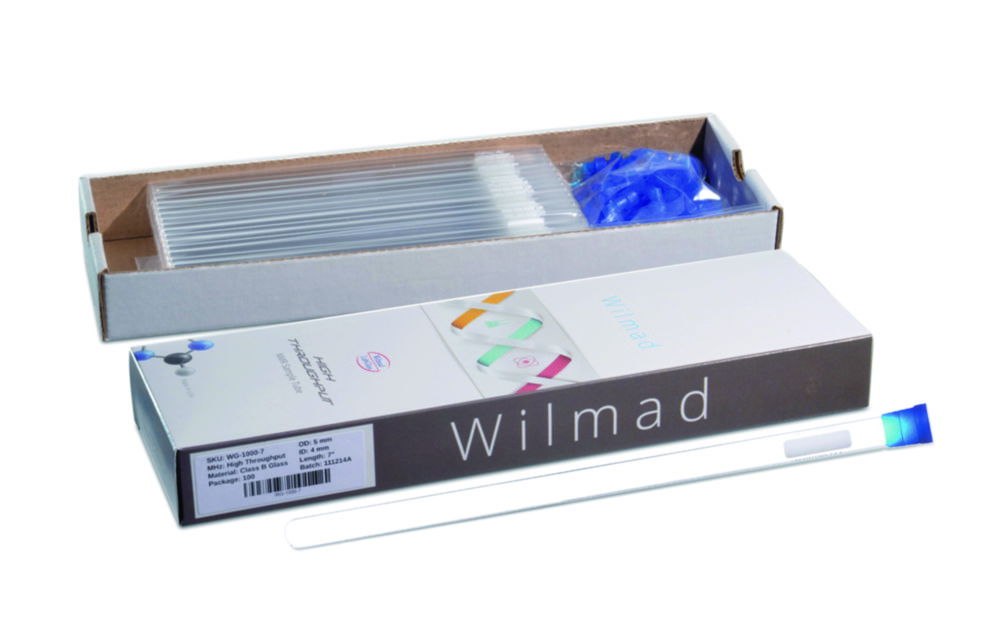

NMR Tubes, 5 mm, Wilmad®, High Throughput
The thin-walled high-throughput Wilmad® NMR tubes have an average camber of 60 microns to guarantee the clarity of the spectrum for small molecule (MW <250) samples up to 600 MHz. Designed for routine use in most low to mid field NMR spectrometers.
- Made from borosilicate glass, ASTM E438 Type 1 Class B standard
- Camber and concentricity values listed are the Total Indicator Reading (TIR)
- Includes disposable caps
- WG-1000-7-SJ is supplied with authentic Bruker SampleJet cap
Toote variatsioonid
| Catalog number | PK | Camber | Ext. Ø | Int. Ø | Length | Material | Wall thickness | Tolerance ext. Ø | Max. frequency | Ext. Ø | Frequency | Int. Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.287 511 | 100.00 | 60 µm | 4,947 mm | 4.1 mm | 203 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | 4,947 mm ± 0.019 | 600 MHz | 4.1 mm | ||
| 4.683 454 | 1.00 | 60 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | 4,947 mm ± 0.019 | 600 MHz | 4.1 mm | ||
| 6.287 509 | 100.00 | 60 µm | 4,947 mm | 4.1 mm | 178 mm | Borosilicate | 0,43 mm | 0.019 mm | 600 MHz | 4,947 mm ± 0.019 | 600 MHz | 4.1 mm |
