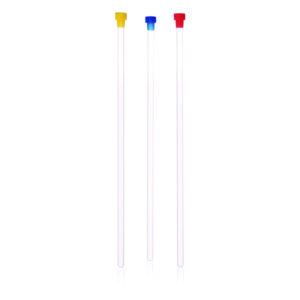

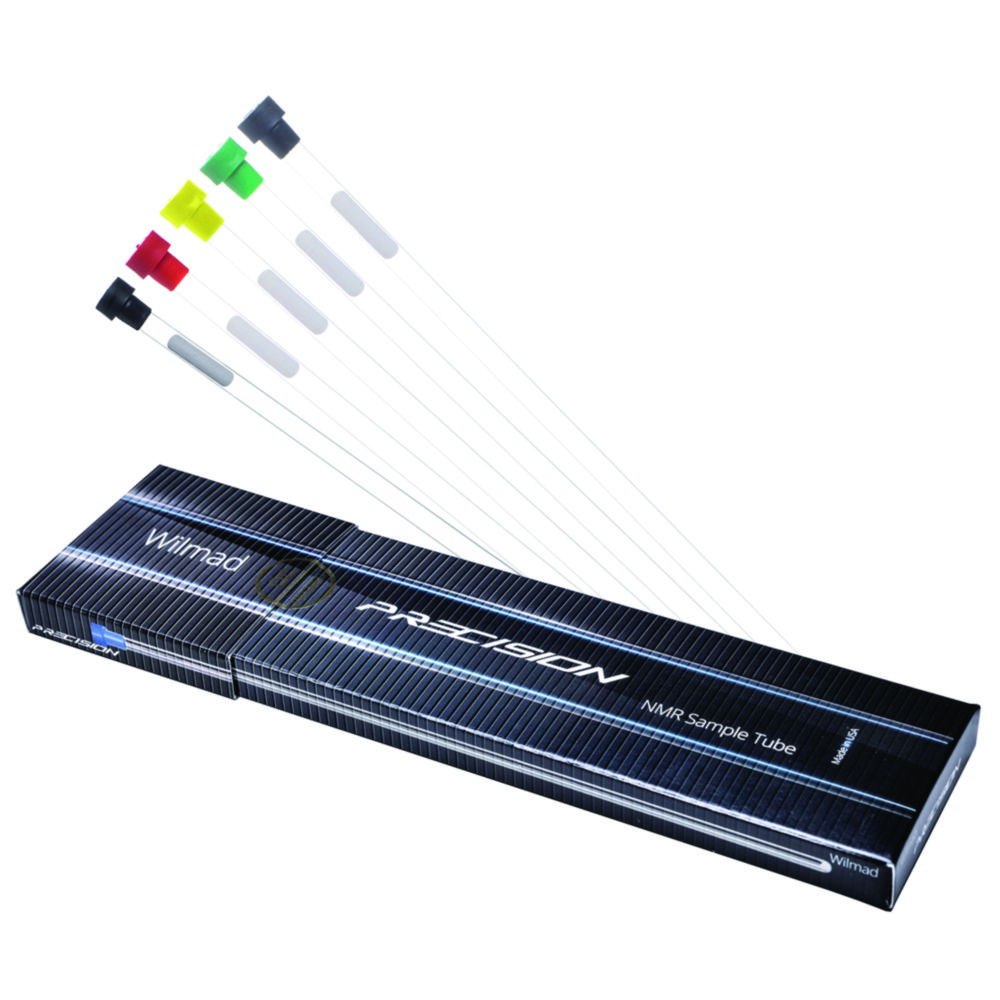

NMR Tubes, 5 mm, Wilmad, Precision
Thin-walled Precision NMR tubes. To maximize Signal-Noise-Ratio, Precision NMR tubes have minimal paramagnetic impurities that would impact shimming. For experiments requiring critical shimming quality (high/ultrahigh field, nonspinning, multi-dimensional, multi-nuclei, DNP experiments and studies involving biological samples).
- Made from borosilicate glass, ASTM E438 Type 1 Class A
- Hydrolytic class 1
- Inner surface is resistant to strong acid and base at ambient temperature
- For temperatures up to 230 °C and within a temperature step of 120 °C
- Include disposable caps
- External diameter: 4.9635 ±0.0065 mm
- Internal diameter: 4.2065 ±0.0065 mm (4.21 ±0.13 mm at 100 MHz)
- Wall thickness: 0.38 mm
Toote variatsioonid
| Catalog number | PK | Camber | Concentricity | Ext. Ø | Int. Ø | Length | Material | Wall thickness | Tolerance ext. Ø | Max. frequency | Tolerance int. Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.287 484 | 1.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 6.287 487 | 1.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 6.287 486 | 1.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 6.287 485 | 1.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 6.287 488 | 1.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 6.287 497 | 1.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 6.287 492 | 1.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 6.287 493 | 1.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 6.287 491 | 1.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 6.287 489 | 1.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 6.287 496 | 1.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 6.287 494 | 1.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 6.287 504 | 1.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 6.287 495 | 1.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 6.287 502 | 1.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 6.287 503 | 1.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 6.287 507 | 1.00 | 3.8 µm | 2.5 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 1000 MHz | 0.0065 mm | ||
| 6.287 505 | 1.00 | 3.8 µm | 3.8 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 800 MHz | 0.0065 mm | ||
| 6.287 506 | 1.00 | 3.8 µm | 3.8 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 800 MHz | 0.0065 mm | ||
| 6.287 508 | 1.00 | 3.8 µm | 2.5 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 1000 MHz | 0.0065 mm | ||
| 4.682 839 | 5.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 4.682 842 | 5.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 4.682 838 | 5.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 6.287 498 | 1.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 4.682 840 | 5.00 | 51 µm | 76 µm | 4,9635 mm | 4.21 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 100 MHz | 0.13 mm | ||
| 6.287 490 | 1.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 4.682 841 | 5.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 6.287 499 | 1.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 6.287 500 | 1.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 6.287 501 | 1.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 4.683 070 | 5.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 4.683 071 | 5.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 4.683 093 | 5.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 4.683 069 | 5.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 4.682 843 | 5.00 | 51 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 200 MHz | 0.0065 mm | ||
| 4.682 853 | 5.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 4.682 863 | 5.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 4.682 858 | 5.00 | 25 µm | 51 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 300 MHz | 0.0065 mm | ||
| 4.683 083 | 5.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 4.683 073 | 5.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 4.683 068 | 5.00 | 13 µm | 51 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 350 MHz | 0.0065 mm | ||
| 4.683 136 | 5.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 229 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 4.683 072 | 5.00 | 25 µm | 25 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 400 MHz | 0.0065 mm | ||
| 4.683 131 | 5.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 4.683 128 | 5.00 | 6 µm | 13 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 600 MHz | 0.0065 mm | ||
| 4.683 088 | 5.00 | 13 µm | 25 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 500 MHz | 0.0065 mm | ||
| 4.683 158 | 5.00 | 3.8 µm | 2.5 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 1000 MHz | 0.0065 mm | ||
| 4.683 156 | 5.00 | 3.8 µm | 3.8 µm | 4,9635 mm | 4.2065 mm | 178 mm | Borosilicate | 0,38 mm | 0.0065 mm | 800 MHz | 0.0065 mm | ||
| 4.683 159 | 5.00 | 3.8 µm | 2.5 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 1000 MHz | 0.0065 mm | ||
| 4.683 157 | 5.00 | 3.8 µm | 3.8 µm | 4,9635 mm | 4.2065 mm | 203 mm | Borosilicate | 0,38 mm | 0.0065 mm | 800 MHz | 0.0065 mm |
