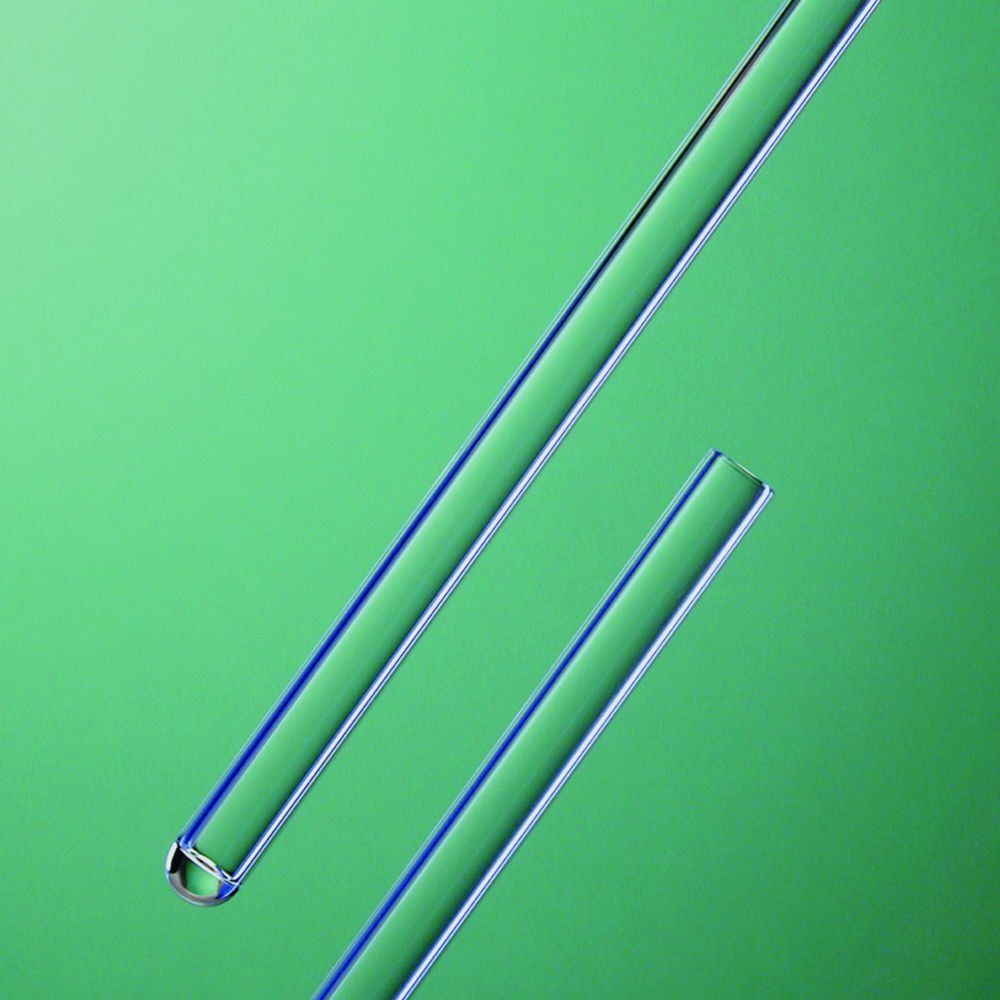

NMR tubes, length 100 mm, for Bruker MATCH™ system
These NMR tubes were developed with the special length of exactly 100 mm and are thus specifically adjusted for the Bruker MATCH™ system.
Toote variatsioonid
| Catalog number | PK | Ext. Ø | Int. Ø | Length | Wall thickness | Tolerance ext. Ø | Tolerance int. Ø | Ext. Ø | Int. Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7.673 678 | 10.00 | 2.5 mm | 2.1 mm | 100 mm | 0.20 mm | 0.010 mm | 0.010 mm | 2.5 mm ± 0.010 | 2.1 mm ± 0.010 | ||
| 6.281 693 | 10.00 | 4.25 mm | 3.45 mm | 100 mm | 0.40 mm | 0.03 mm | 0.03 mm | 4.25 mm ± 0.03 | 3.45 mm ± 0.03 | ||
| 7.673 677 | 10.00 | 4.0 mm | 3.3 mm | 100 mm | 0.35 mm | 0.025 mm | 0.025 mm | 4.0 mm ± 0.025 | 3.3 mm ± 0.025 | ||
| 6.281 691 | 10.00 | 1.0 mm | 0.7 mm | 100 mm | 0,15 mm | 0.010 mm | 0.010 mm | 1.0 mm ± 0.010 | 0.7 mm ± 0.010 | ||
| 6.281 694 | 10.00 | 5.0 mm | 4.20 mm | 100 mm | 0.40 mm | 0.025 mm | 0.025 mm | 5.0 mm ± 0.025 | 4.20 mm ± 0.025 | ||
| 7.673 679 | 10.00 | 1.7 mm | 1.3 mm | 100 mm | 0.20 mm | 0.010 mm | 0.010 mm | 1.7 mm ± 0.010 | 1.3 mm ± 0.010 | ||
| 7.673 680 | 10.00 | 3.0 mm | 2.4 mm | 100 mm | 0.30 mm | 0.025 mm | 0.025 mm | 3.0 mm ± 0.025 | 2.4 mm ± 0.025 | ||
| 6.281 692 | 10.00 | 2.0 mm | 1.6 mm | 100 mm | 0.20 mm | 0.010 mm | 0.010 mm | 2.0 mm ± 0.010 | 1.6 mm ± 0.010 |
