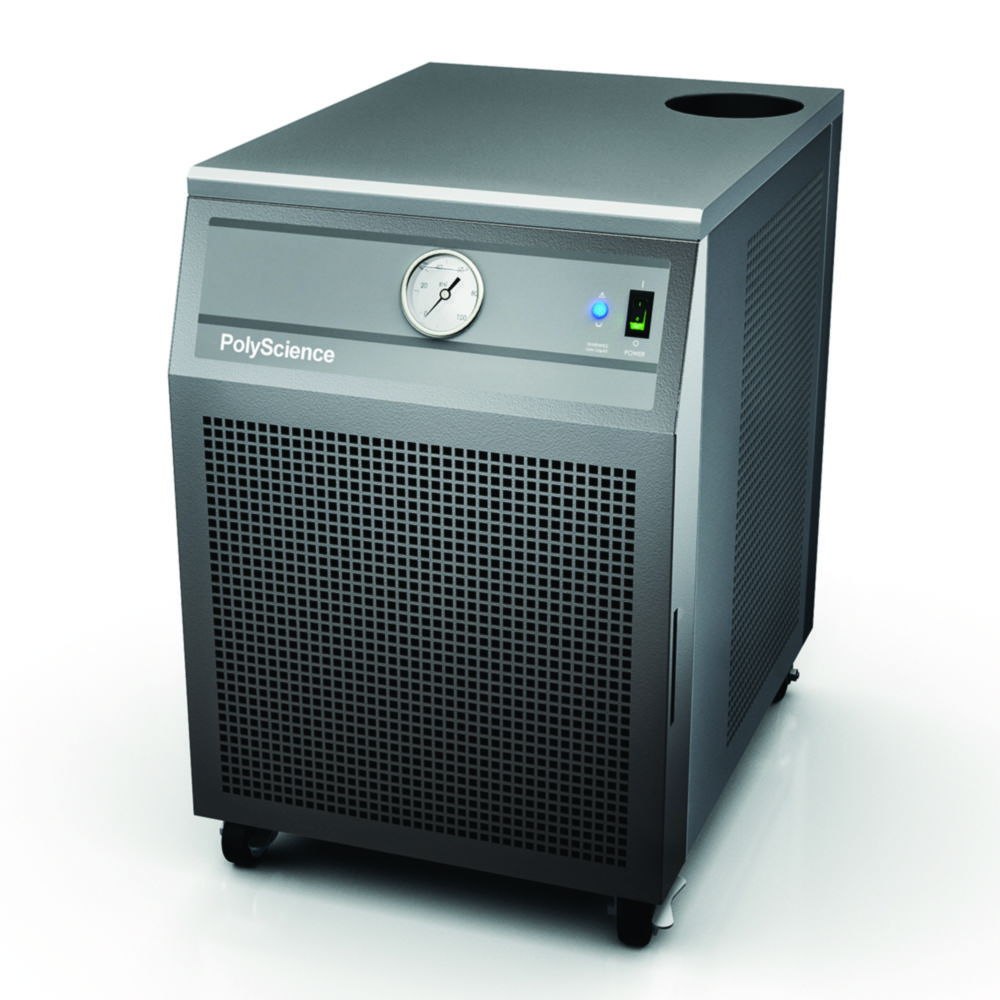

Non-refrigerated cooler Model 3370

  • An economical cooling solution for applications where cooling fluid temperature is higher than ambient and temperature control is not required
  • Quiet liquid-to-air cooling
  • Positive displacement (P) or turbine pump (TB)
  • Built-in low liquid level indicator

Toote variatsioonid

Catalog numberPKExternal dimensions (WxDxH)Ext. depthExt. heightExt. widthMax. flow rateMax. temperatureMax. voltageMax. volume bathMin. temperaturePower supplyTemperatureTemperatureTypeVolume bathKogus
4.658 6781.00381 x 520 x 546 mm520 mm546 mm381 mm70 °C240 V4.2 l5 °C240 V, 50 HzRTRT+5 ... 70 °C3370TB4.2 l
4.658 6771.00381 x 520 x 546 mm520 mm546 mm381 mm70 °C240 V4.2 l5 °C240 V, 50 HzRTRT+5 ... 70 °C3370P94.2 l
