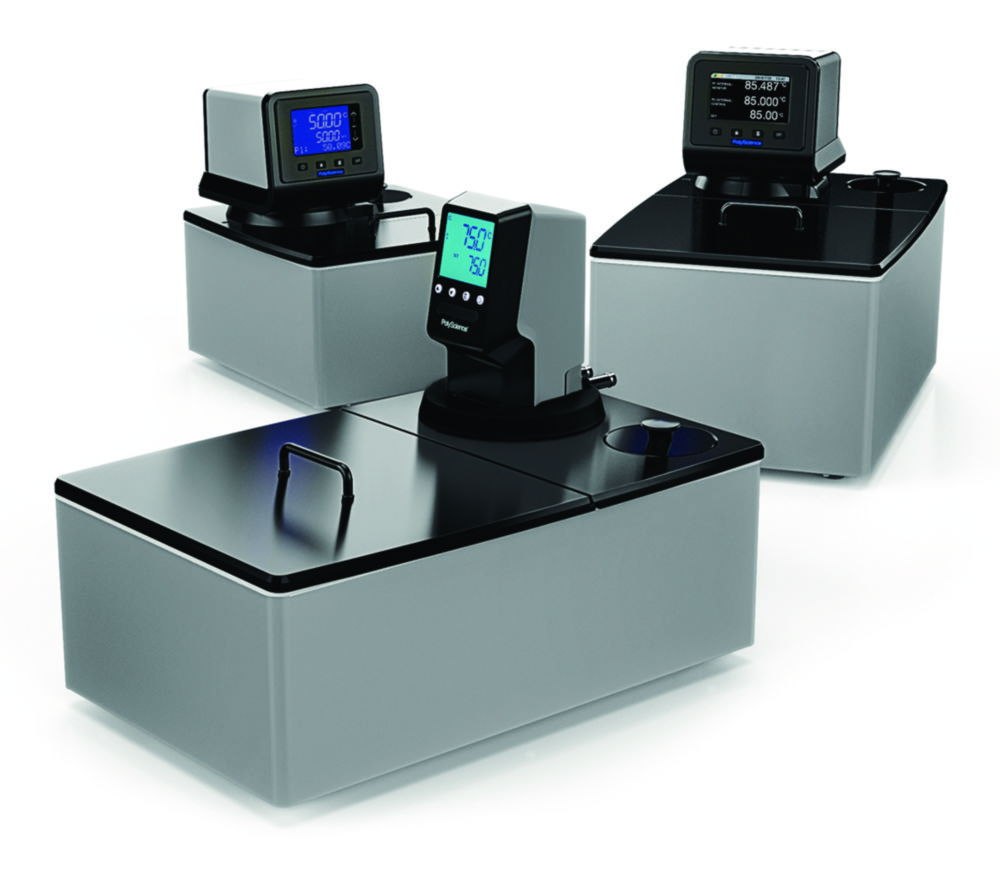

Open bath system AP, with stainless steel bath
Bath system with Advanced Programmable (AP) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.
- Intuitive 4.3″ SmartTouch display
- Large 180° rotatable Swivel 180™ display
- Pressure/suction pump with variable speed and external circulation capability in open and closed control loops
- USB, Ethernet, RS-232/RS-485 interface
- Connection for external Pt100 temperature sensor
- OpenMode time/temperature programming
- Event scheduling (time and date) with real-time clock
- 11 languages selectable
- Review temperature trends for up to 10 days
- Multiple selectable ‘home’ screens
- Automatic and/or user adjustable performance optimisation
- 10-point calibration capability
- Class I (NFL) acc. to DIN 12876-1
Toote variatsioonid
| Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | Material bath | Max. flow rate | atr_llg_max_suction_capacity | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Programmable | Temp. Stability | Temperature | Temperature | Type of display | Volume bath | Width opening | With lid | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 255 mm | 353 x 342 x 378 mm | 342 mm | 378 mm | 353 mm | 2200 W | Stainless steel | 12.2 l/min | 150 °C | 240 V | 10 l | -10 °C | 4.658 642 | 240 V, 50 Hz | Yes | ±0,005 °C | RT | RT+10 ... 150 °C | LCD | 10 l | 99 mm | Yes | Yes | 1.00 | |||
| 214 mm | 531 x 342 x 429 mm | 342 mm | 429 mm | 531 mm | 2200 W | Stainless steel | 12.2 l/min | 150 °C | 240 V | 28 l | -10 °C | 4.658 648 | 240 V, 50 Hz | Yes | ±0,005 °C | RT | RT+10 ... 150 °C | LCD | 28 l | 257 mm | Yes | Yes | 1.00 | |||
| 110 mm | 340 x 206 x 378 mm | 206 mm | 378 mm | 340 mm | 2200 W | Stainless steel | 12.2 l/min | 150 °C | 240 V | 6 l | -10 °C | 4.658 639 | 240 V, 50 Hz | Yes | ±0,005 °C | RT | RT+10 ... 150 °C | LCD | 6 l | 100 mm | Yes | Yes | 1.00 |
