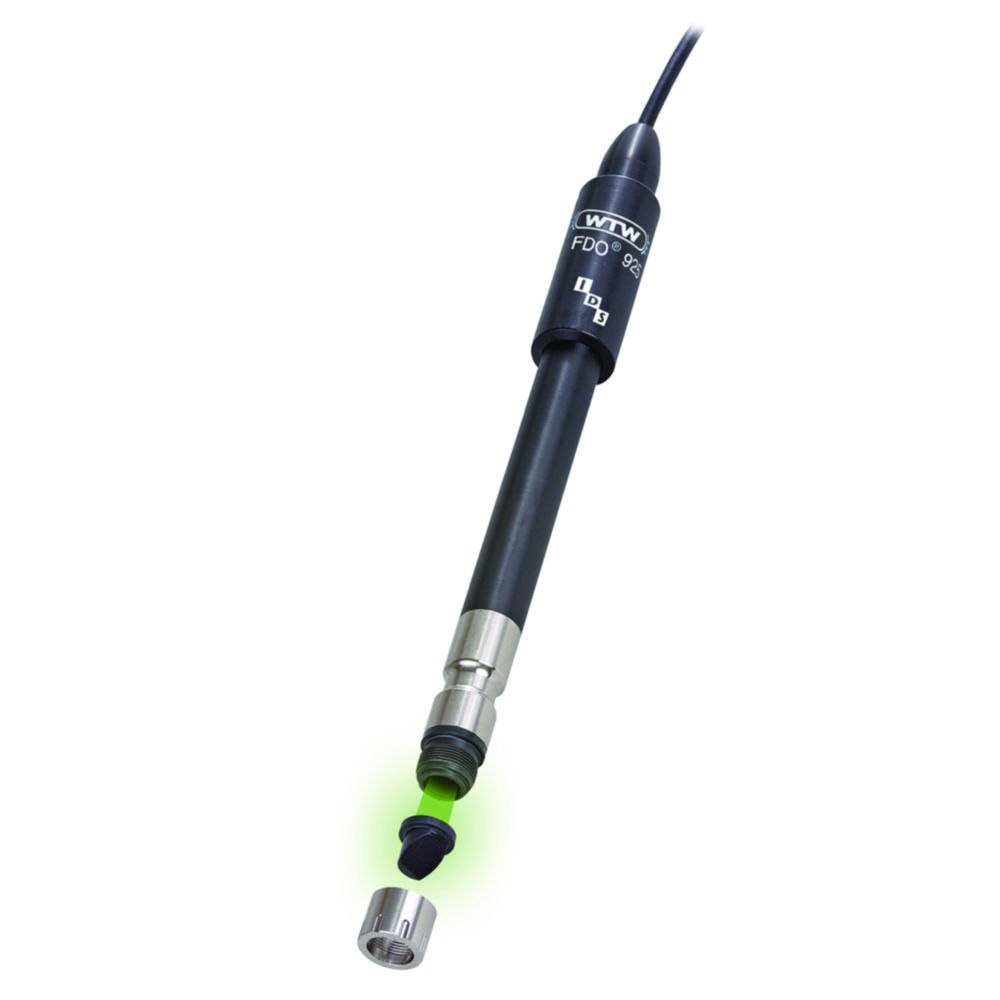

Optical D.O. Sensor FDO® 925
Optical IDS D.O. sensor for portable MultiLine® IDS and InoLab® Multi IDS benchtop meters. Measures the dissolved oxygen according DIN ISO 17289:2014-12. For applications in the lab and in process, outdoor and waste water treatment plants. Low maintenance (t99 < 60 s). No oxygen consumption, with inclined membrane for avoiding air bubbles. Factory calibrated membrane with smart chip. Built-in NTC 30 kOhm temperature sensor.
Toote variatsioonid
| Cable length | Concentration | Connection plug | Shaft length | Material shaft | Max. temperature | Min. temperature | Catalog number | Partial pressure | Saturation | Shaft Ø | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 m | 0 ... 20 mg/l (20 °C) | Digital | 150 mm | POM | 50 °C | 0 °C | 6.239 577 | 0 ... 400 mbar (20 °C) | 0 ... 200 % (20 °C) | 15.3 mm | 0 ... 50 °C | NTC 30 kOhm | FDO® 925-3 | 1.00 | ||
| - | 0 ... 20 mg/l (20 °C) | Plug head | 150 mm | POM | 50 °C | 0 °C | 6.259 423 | 0 ... 400 mbar (20 °C) | 0 ... 200 % (20 °C) | 15.3 mm | 0 ... 50 °C | NTC 30 kOhm | FDO® 925-P | 1.00 | ||
| 1.5 m | 0 ... 20 mg/l (20 °C) | Digital | 150 mm | POM | 50 °C | 0 °C | 6.238 174 | 0 ... 400 mbar (20 °C) | 0 ... 200 % (20 °C) | 15.3 mm | 0 ... 50 °C | NTC 30 kOhm | FDO® 925 | 1.00 |
