Optima® 17 capillary columns for GC

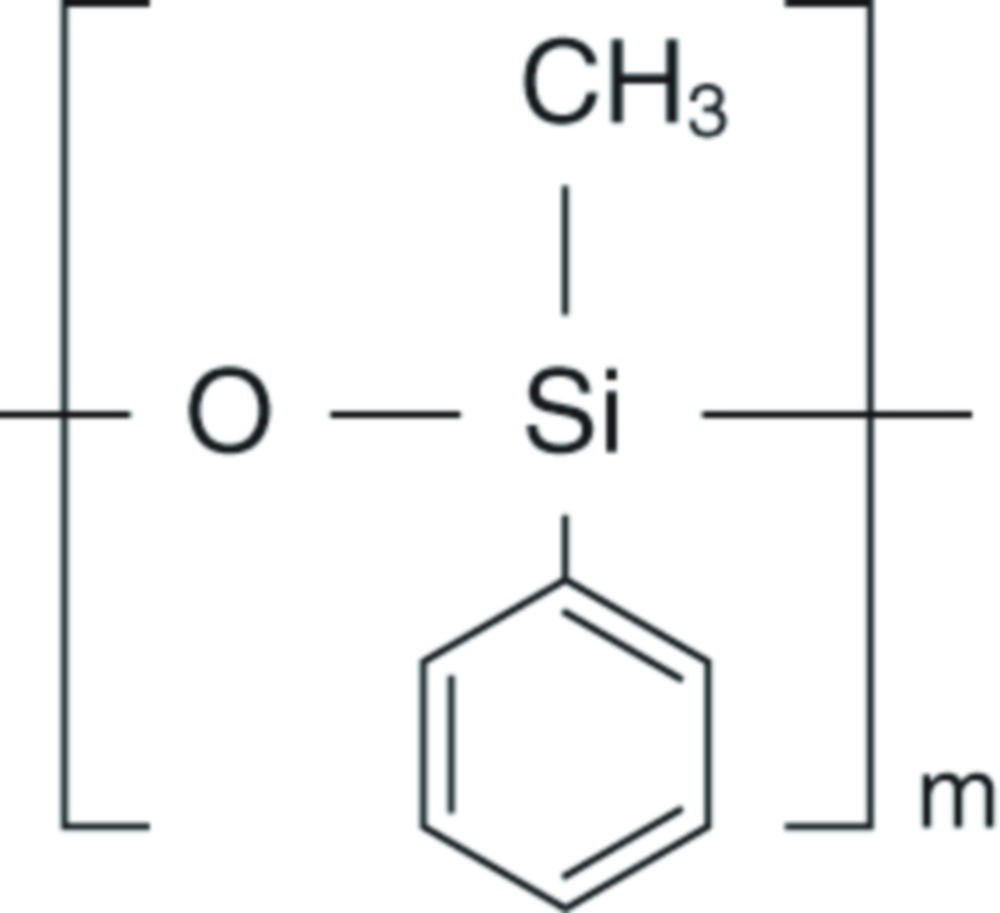

phenylmethylpolysiloxane (50 % phenyl)
medium polar phase
preferred applications: steroids, pesticides, drug analyses
USP G3
similar phases: OV-17, DB-17, HP50+, HP17, SPB-50, SP-2250, Rtx-50, CP-Sil 24 CB, 007-17, ZB50
max. temperature for isothermal operation: 320°C, max. temperature for short isotherms in a temperature programme: 340°C, for 0.53mm ID columns the max. temperatures are 300 and 320°C, resp.
Toote variatsioonid
| Catalog number | PK | Int. Ø | Length | Film thickness | Material column | Polarity | USP listing | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 4.003 028 | 1.00 | 0.25 mm | 50 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 112 | 1.00 | 0.32 mm | 25 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 048 | 1.00 | 0.25 mm | 50 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 114 | 1.00 | 0.32 mm | 50 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 029 | 1.00 | 0.25 mm | 60 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 113 | 1.00 | 0.32 mm | 30 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 046 | 1.00 | 0.25 mm | 25 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 197 | 1.00 | 0.32 mm | 60 m | 0.35 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 047 | 1.00 | 0.25 mm | 30 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 027 | 1.00 | 0.25 mm | 30 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 049 | 1.00 | 0.25 mm | 60 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 115 | 1.00 | 0.32 mm | 60 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 026 | 1.00 | 0.25 mm | 25 m | 0.25 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 193 | 1.00 | 0.32 mm | 30 m | 0.15 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 195 | 1.00 | 0.32 mm | 30 m | 0.35 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 183 | 1.00 | 0.25 mm | 50 m | 0.15 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 185 | 1.00 | 0.32 mm | 25 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 194 | 1.00 | 0.32 mm | 25 m | 0.35 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 191 | 1.00 | 0.53 mm | 25 m | 1.00 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 196 | 1.00 | 0.32 mm | 50 m | 0.35 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 186 | 1.00 | 0.32 mm | 30 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 192 | 1.00 | 0.53 mm | 30 m | 1.00 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 188 | 1.00 | 0.32 mm | 60 m | 0.50 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 184 | 1.00 | 0.25 mm | 60 m | 0.15 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 236 | 1.00 | 0.10 mm | 10 m | 0.10 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 181 | 1.00 | 0.25 mm | 25 m | 0.15 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 182 | 1.00 | 0.25 mm | 30 m | 0.15 µm | Quartz glass | Mid-polar | G3 | ||
| 4.003 187 | 1.00 | 0.32 mm | 50 m | 0.50 µm | Quartz glass | Mid-polar | G3 |
