OPTIMA® 5 MS capillary columns for GC

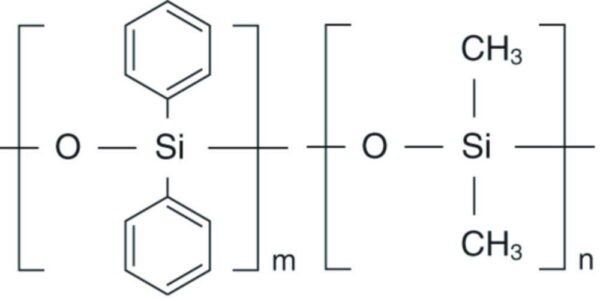

5% diphenyl – 95% dimethylpolysiloxane
nonpolar phase with low bleeding, deal for GC/MS and ECD applications and general analyses at trace level perfect inertness for basic compounds.
Similar phases: DB-5 MS, HP-5 MS, Ultra-2, Equity-5, CP-Sil 8 CB low bleed/MS, Rtx-5SIL-MS, Rtx-5 MS, 007-5 MS, BPX5, MDN-5S, AT-5 MS, VF-5 MS.
max. temperature for isothermal operation: 340°C, max. temperature for short isotherms in a temperature programme: 360 °C
Toote variatsioonid
| Catalog number | PK | Int. Ø | Length | Film thickness | Material column | Polarity | USP listing | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 4.003 100 | 1.00 | 0.25 mm | 60 m | 0.50 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 101 | 1.00 | 0.25 mm | 30 m | 1.00 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 092 | 1.00 | 0.32 mm | 50 m | 1.00 µm | Quartz | Nonpolar | G27, G36 | ||
| 7.080 092 | 1.00 | 0.25 mm | 30 m | 0.25 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 098 | 1.00 | 0.25 mm | 60 m | 0.25 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 091 | 1.00 | 0.32 mm | 25 m | 1.00 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 093 | 1.00 | 0.32 mm | 30 m | 0.50 µm | Quartz | Nonpolar | G27, G36 | ||
| 7.080 742 | 1.00 | 0.32 mm | 60 m | 1.00 µm | Quartz | Nonpolar | G27, G36 | ||
| 6.700 690 | 1.00 | 0.32 mm | 30 m | 0.25 µm | Quartz | Nonpolar | G27, G36 | ||
| 4.003 099 | 1.00 | 0.25 mm | 30 m | 0.50 µm | Quartz | Nonpolar | G27, G36 |
