Optima® FFAP capillary columns for GC

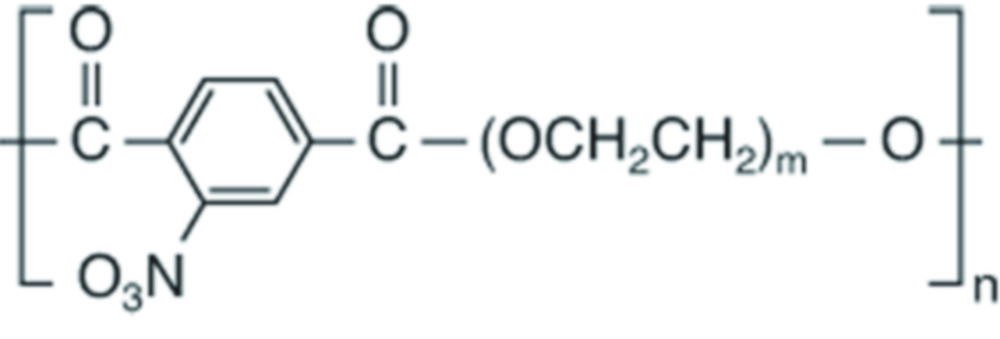

polyethylene glycol 2-nitroterephthalate
close equivalent USP G25 / G35
polar phase
recommended for FAME, free carboxylic acids
similar phases: Permabond FFAP , DB-FFAP, HP-FFAP, CP-Sil 58 CB, 007-FFAP, CP-FFAP CB, Nukol
for columns with 0.10 to 0.32mm ID the max. temperature for isothermal operation is 250°C, the max. temperature for short isotherms in a temperature programme is 260°C for 0.53mm ID columns the max. temperatures are 220 and 240°C, resp.
Toote variatsioonid
| Catalog number | PK | Int. Ø | Length | Film thickness | Material column | Polarity | USP listing | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.003 779 | 1.00 | 0.32 mm | 30 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 777 | 1.00 | 0.25 mm | 60 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 783 | 1.00 | 0.32 mm | 30 m | 0.50 µm | Quartz glass | Polar | G25,G35 | ||
| 4.003 111 | 1.00 | 0.53 mm | 25 m | 1.00 µm | Quartz glass | Polar | G25,G35 | ||
| 4.003 110 | 1.00 | 0.53 mm | 30 m | 0.50 µm | Quartz glass | Polar | G25,G35 | ||
| 4.003 079 | 1.00 | 0.10 mm | 10 m | 0.10 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 775 | 1.00 | 0.25 mm | 30 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 774 | 1.00 | 0.25 mm | 25 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 781 | 1.00 | 0.32 mm | 60 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 780 | 1.00 | 0.32 mm | 50 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 782 | 1.00 | 0.32 mm | 25 m | 0.50 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 776 | 1.00 | 0.25 mm | 50 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 778 | 1.00 | 0.32 mm | 25 m | 0.25 µm | Quartz glass | Polar | G25,G35 | ||
| 9.003 784 | 1.00 | 0.32 mm | 50 m | 0.50 µm | Quartz glass | Polar | G25,G35 |
