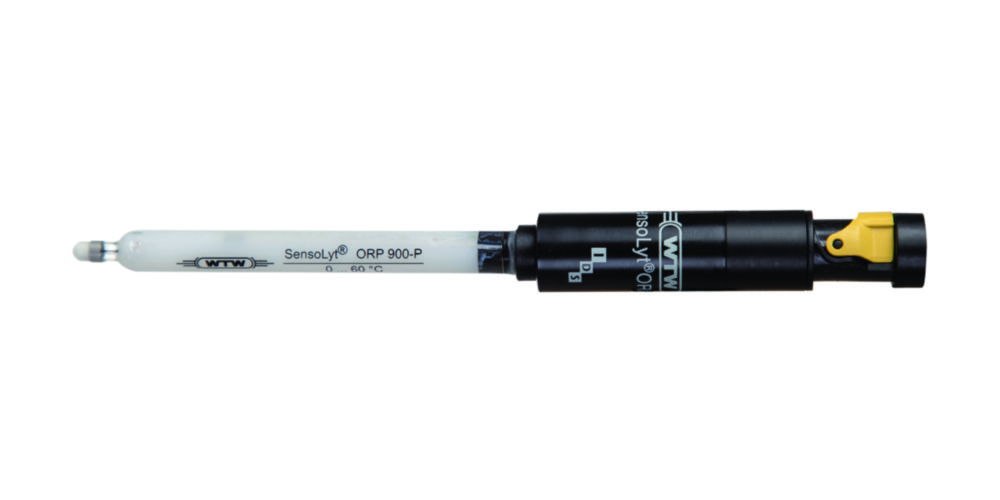

ORP electrode SensoLyt® ORP 900-P
Pressure resistant IDS platinum ORP electrode for depth measurement. With temperature sensor NTC 30 kOhm. Wireless-ready or connetion to AS/IDS cable. Pressure resistant up to 10 bar.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material sensor | Material shaft | Max. temperature | Min. temperature | mV range | Catalog number | Shaft Ø | Shape sensor | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Hole | Polymer | 120 mm | Platinum | Glass | 100 °C | 5 °C | -1250 ... 1250 | 7.660 170 | 12 mm | Ring | -5 ... 100 °C | NTC 30 kOhm | SensoLyt® ORP 900-P | 1.00 |
