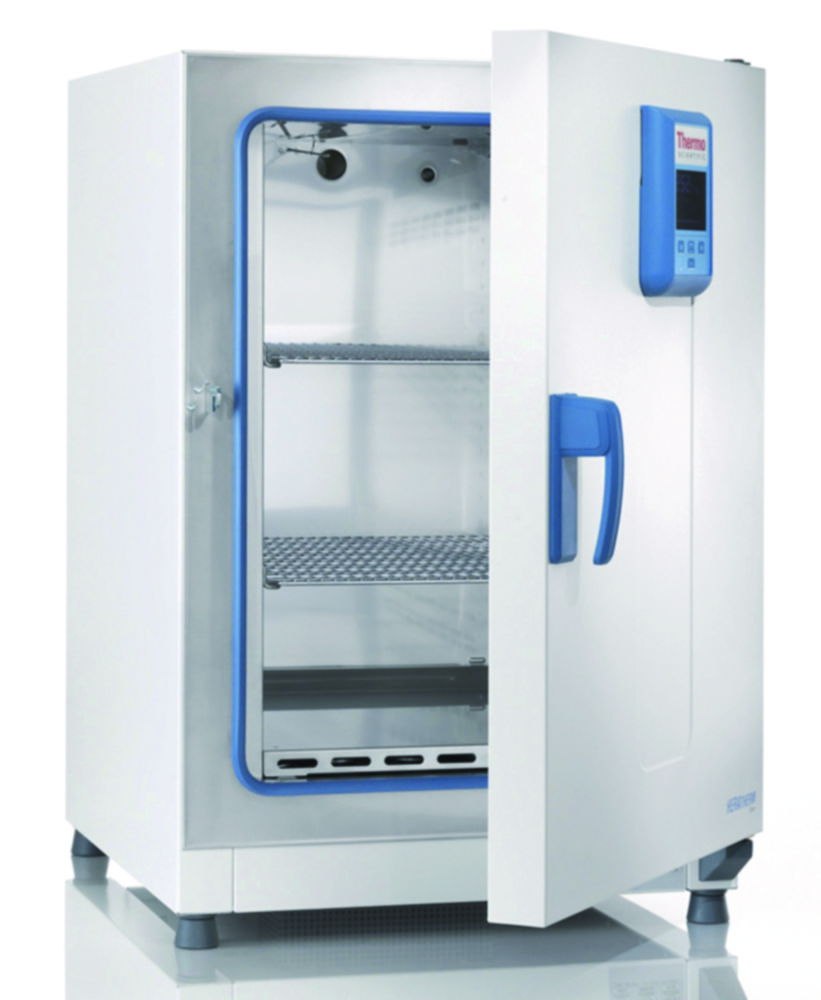

Ovens Heratherm™ Advanced Protocol, with gravity convection
As well as incorporating all the benefits of Thermo Scientific™ Heratherm™ General Protocol ovens, the Heratherm™ Advanced Protocol range boasts additional features providing even more flexibility, accuracy and dependability.
- Sophisticated timer extends the automation options available to the user: turn on or off after a pre-set time, choose between a recurring weekly timer or run oven based on the 24 hour clock
- Highest level of temperature uniformity
- Exceptionally low energy consumption
- Adjustable fan speed for application related airflow
- Programmable controller for temperature ramps and dwells (store up to 10 programs with 10 discrete steps, features electronically controlled fan speed and damper position)
- Access port allows the introduction of sensors for independent data monitoring
- A simple calibration routine ensures temperature accuracy over time
- Boost function enables rapid heating up
Toote variatsioonid
| Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | IP code | Material interior | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Rated capacity | Temp. Stability | Temperature | Type | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 389 mm | 565 mm | 720 mm | 530 mm | 480 mm | 328 mm | IP 20 | Stainless steel 1.4301 | 13 | 330 °C | 230 V | -10 °C | 61 l | 4.009 212 | 1800 W | ±0,3 °C | RT | OGH60 | 44 kg | Yes | 1.00 | ||
| 564 mm | 738 mm | 920 mm | 640 mm | 680 mm | 438 mm | IP 20 | Stainless steel 1.4301 | 19 | 330 °C | 230 V | -10 °C | 168 l | 4.009 214 | 3100 W | ±0,3 °C | RT | OGH180 | 69 kg | Yes | 1.00 | ||
| 389 mm | 565 mm | 820 mm | 640 mm | 580 mm | 438 mm | IP 20 | Stainless steel 1.4301 | 16 | 330 °C | 230 V | -10 °C | 99 l | 4.009 213 | 3100 W | ±0,3 °C | RT | OGH100 | 55 kg | Yes | 1.00 |
