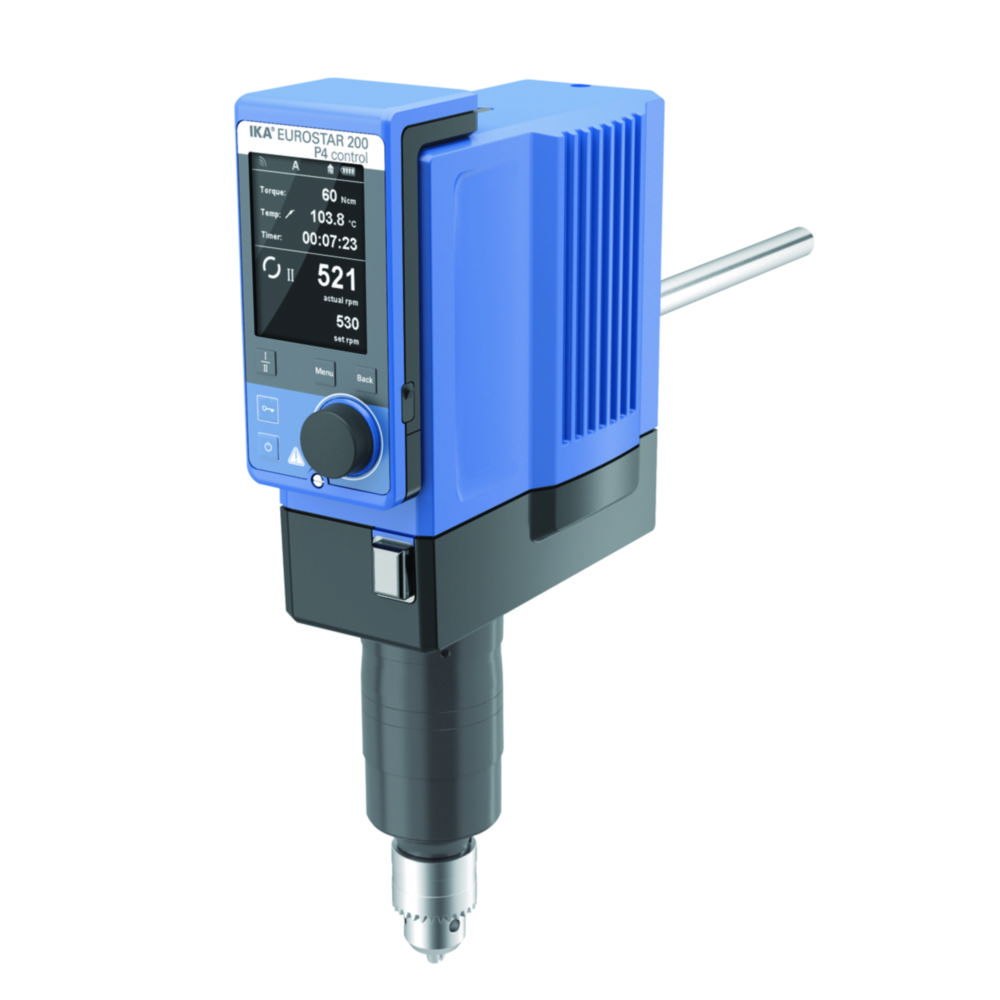

Overhead stirrer EUROSTAR 200 control P4
Extremely powerful laboratory stirrer for highly viscous applications for quantities up to 100 l (H2O). It is designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/4 to 530 rpm (two speed ranges). The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
- Multilingual TFT display
- Detachable remote control
- Programmable functions
- Integrated temperature measurement
- Interval operation
- Timer function
- Adjustable safety circuit
- Locked function
- Infinitely adjustable speed
- Speed range I: 4 to 110 rpm
- Speed range II:16 to 530 rpm
- Overload protection
- Short-term overload operation
Toote variatsioonid
| Clamping range | Depth | Dimensions (WxDxH) | Display | Height | IP code | Max. speed | Max. temperature | Max. torque | Max. Viscosity | Max. voltage | Min. speed | Min. temperature | Catalog number | Plug type | Power supply | Rated capacity | Speed | Temperature | Type | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 ... 10 mm | 231 mm | 91 x 231 x 379 mm | Digital | 379 mm | IP 40 | 530 1/min | 350 °C | 660 Ncm | 150000 mPa·s | 230 V | 4 1/min | -10 °C | 9.816 714 | CH | 230 V, 50...60 Hz | 134 W | 4 ... 530 1/min | -10 ... 350 °C | EUROSTAR 200 control P4 S 3 | 5.8 kg | 91 mm | Yes | 1.00 | ||
| 0.5 ... 10 mm | 231 mm | 91 x 231 x 379 mm | Digital | 379 mm | IP 40 | 530 1/min | 350 °C | 660 Ncm | 150000 mPa·s | 230 V | 4 1/min | -10 °C | 9.816 713 | UK | 230 V, 50...60 Hz | 134 W | 4 ... 530 1/min | -10 ... 350 °C | EUROSTAR 200 control P4 S 2 | 5.8 kg | 91 mm | Yes | 1.00 | ||
| 0.5 ... 10 mm | 231 mm | 91 x 231 x 379 mm | Digital | 379 mm | IP 40 | 530 1/min | 350 °C | 660 Ncm | 150000 mPa·s | 230 V | 4 1/min | -10 °C | 9.816 712 | EU | 230 V, 50...60 Hz | 134 W | 4 ... 530 1/min | -10 ... 350 °C | EUROSTAR 200 control P4 | 5.8 kg | 91 mm | Yes | 1.00 |
