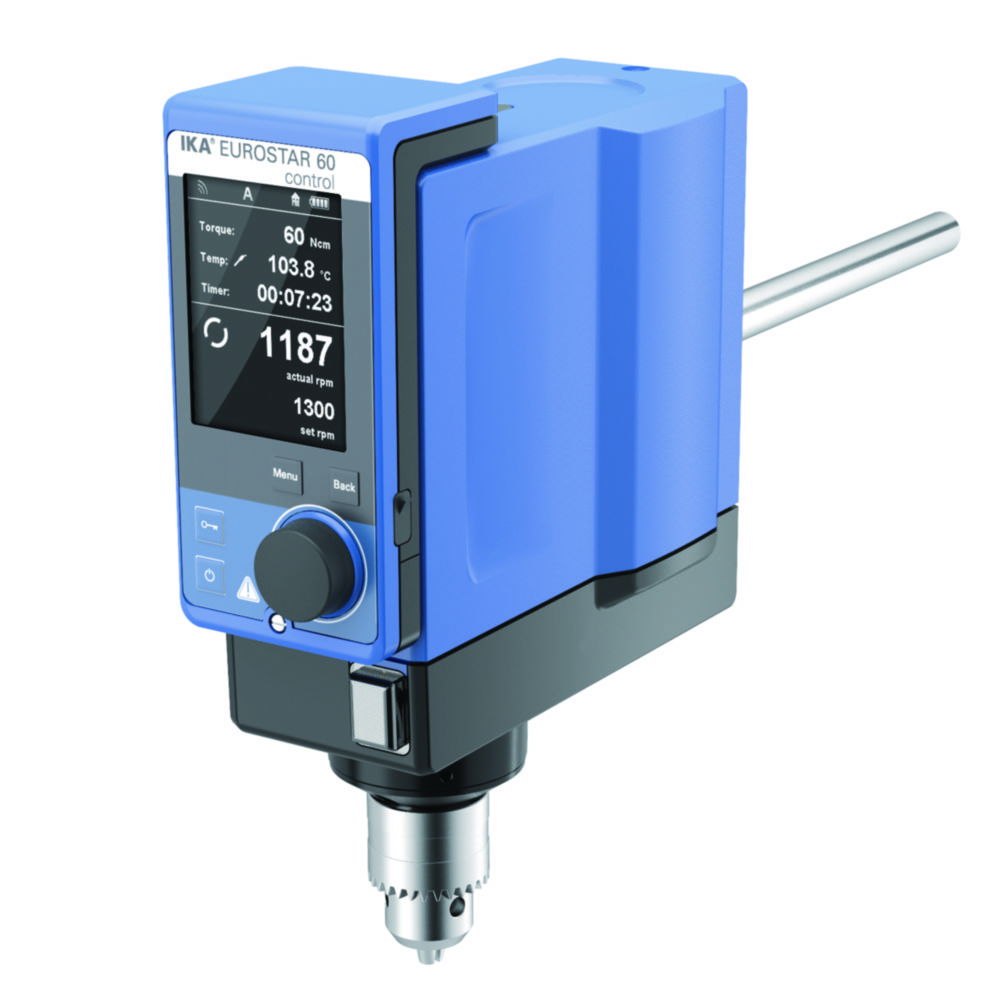

Overhead stirrer EUROSTAR 60 control
Universally used strong overhead stirrer for quantities up to 40l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/30 to 2000rpm. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
- Multilingual TFT display
- Programmable functions
- Integrated temperature measurement
- Interval operation
- Timer function
- Adjustable safety circuit
- Locked function
- H 67.60 temperature sensor and WH 11 WiCo holder included in delivery
Toote variatsioonid
| Clamping range | Depth | Dimensions (WxDxH) | Display | Height | IP code | Max. speed | Max. temperature | Max. torque | Max. Viscosity | Max. voltage | Min. speed | Min. temperature | Catalog number | Plug type | Power supply | Rated capacity | Speed | Temperature | Type | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 ... 10 mm | 230 mm | 86 x 230 x 267 mm | Digital | 267 mm | IP 40 | 2000 1/min | 350 °C | 60 Ncm | 50000 mPa·s | 230 V | 0 1/min | -10 °C | 9.816 705 | CH | 230 V, 50...60 Hz | 176 W | 0 ... 2000 1/min | -10 ... 350 °C | EUROSTAR 60 control S 3 | 4.7 kg | 86 mm | Yes | 1.00 | ||
| 0.5 ... 10 mm | 230 mm | 86 x 230 x 267 mm | Digital | 267 mm | IP 40 | 2000 1/min | 350 °C | 60 Ncm | 50000 mPa·s | 230 V | 0 1/min | -10 °C | 9.816 704 | UK | 230 V, 50...60 Hz | 176 W | 0 ... 2000 1/min | -10 ... 350 °C | EUROSTAR 60 control S 2 | 4.7 kg | 86 mm | Yes | 1.00 | ||
| 0.5 ... 10 mm | 230 mm | 86 x 230 x 267 mm | Digital | 267 mm | IP 40 | 2000 1/min | 350 °C | 60 Ncm | 50000 mPa·s | 230 V | 0 1/min | -10 °C | 9.816 703 | EU | 230 V, 50...60 Hz | 176 W | 0 ... 2000 1/min | -10 ... 350 °C | EUROSTAR 60 control | 4.7 kg | 86 mm | Yes | 1.00 |
