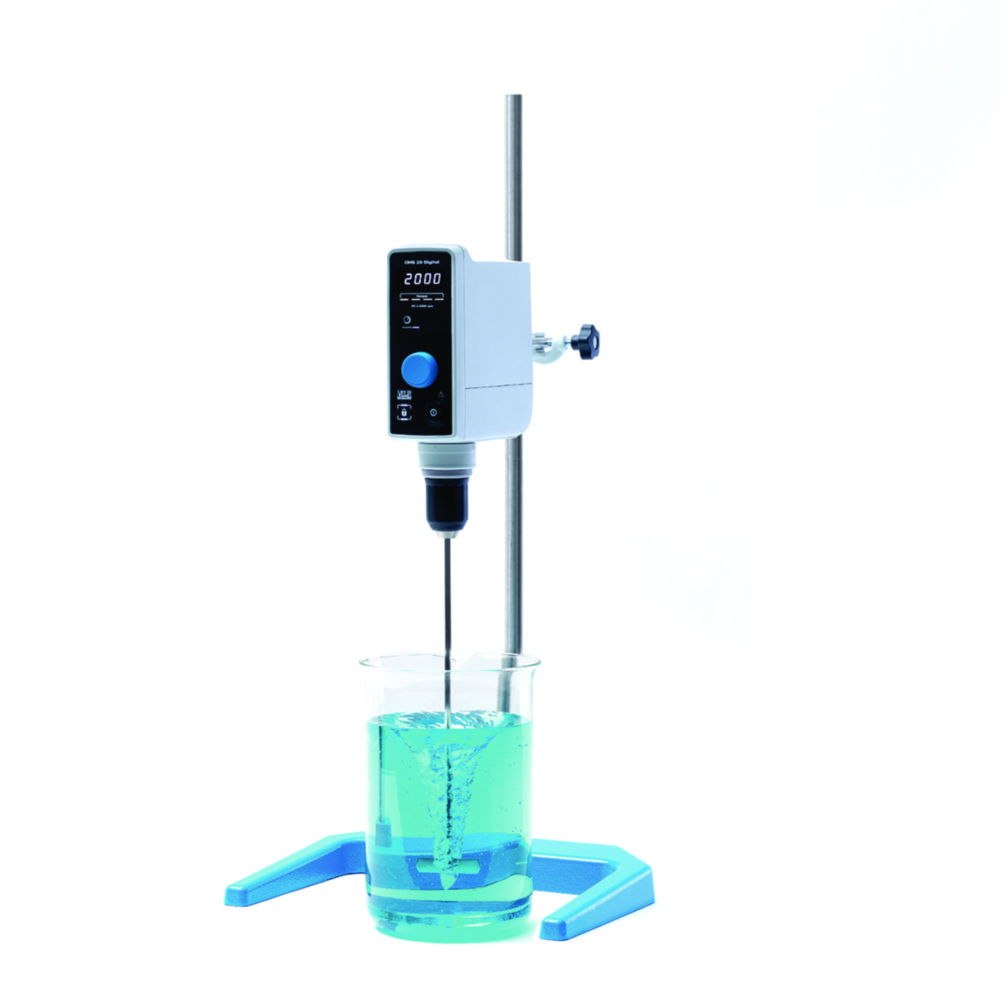

Overhead stirrers OHS Digital
Powerful, robust overhead stirrers with display and electronic speed control. With integrated timer and overload, overtemperature and overcurrent protection.
- Stable torque over the entire speed range with automatic compensation
- Torque indication in the display
- LED display
- Timer
- Key lock
- Brushless, quiet motor
- Rotor change without tools
- USB interface for installing software updates
Toote variatsioonid
| Clamping range | Depth | Dimensions (WxDxH) | Display | Height | IP code | Max. speed | Max. torque | Max. Viscosity | Max. voltage | Min. speed | Catalog number | Power supply | Speed | Type | Waranty | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 1300 1/min | 100 Ncm | 70000 mPa·s | 115 V | 30 1/min | 4.666 665 | 115 V, 60 Hz | 30 ... 1300 1/min | OHS 100 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 40 Ncm | 25000 mPa·s | 115 V | 30 1/min | 4.666 667 | 115 V, 60 Hz | 30 ... 2000 1/min | OHS 40 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 60 Ncm | 50000 mPa·s | 115 V | 30 1/min | 4.666 666 | 115 V, 60 Hz | 30 ... 2000 1/min | OHS 60 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 60 Ncm | 50000 mPa·s | 230 V | 30 1/min | 4.666 658 | 230 V, 50...60 Hz | 30 ... 2000 1/min | OHS 60 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 20 Ncm | 10000 mPa·s | 115 V | 30 1/min | 4.666 668 | 115 V, 60 Hz | 30 ... 2000 1/min | OHS 20 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 40 Ncm | 25000 mPa·s | 230 V | 30 1/min | 4.666 659 | 230 V, 50...60 Hz | 30 ... 2000 1/min | OHS 40 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 1300 1/min | 100 Ncm | 70000 mPa·s | 230 V | 30 1/min | 4.666 657 | 230 V, 50...60 Hz | 30 ... 1300 1/min | OHS 100 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 | ||
| 1 ... 13 mm | 235 mm | 90 x 235 x 285 mm | Digital | 285 mm | IP 54 | 2000 1/min | 20 Ncm | 10000 mPa·s | 230 V | 30 1/min | 4.666 660 | 230 V, 50...60 Hz | 30 ... 2000 1/min | OHS 20 Digital | 3 years | 4.1 kg | 90 mm | Yes | 1.00 |
