Oxygen meter NineFocus NF4000 Kit

High-performance, modular benchtop meter for determining dissolved oxygen. Sensor diagnostics with user guidance reduce downtime and monitors sensor condition. Automatic data transfer to LabX software supports full compliance with important industry regulatory standards such as CFR 21 Part 11 and ALCOA++. Up to three additional digital measurement modules can be added to increase productivity.

  • Detachable terminal with 7″ touchscreen
  • Intuitive One Click™ user interface in 14 languages
  • Flexible user management: user groups can be tailored to any need and settings can be protected against unwanted changes
  • Interfaces: 3 x USB-A, USB-C, Ethernet
  • Memory for 3000 result sets
  • Splash-proof and dust-proof (IP52)
  • Compatibility with analogue sensors (e.g. ISM) using analogue measurement modules (sold separately)

With the appropriate sensors, the device can also measure pH, redox potential, conductivity, and ion concentration (please order sensors separately). The measuring ranges therefore depend on the sensor used.

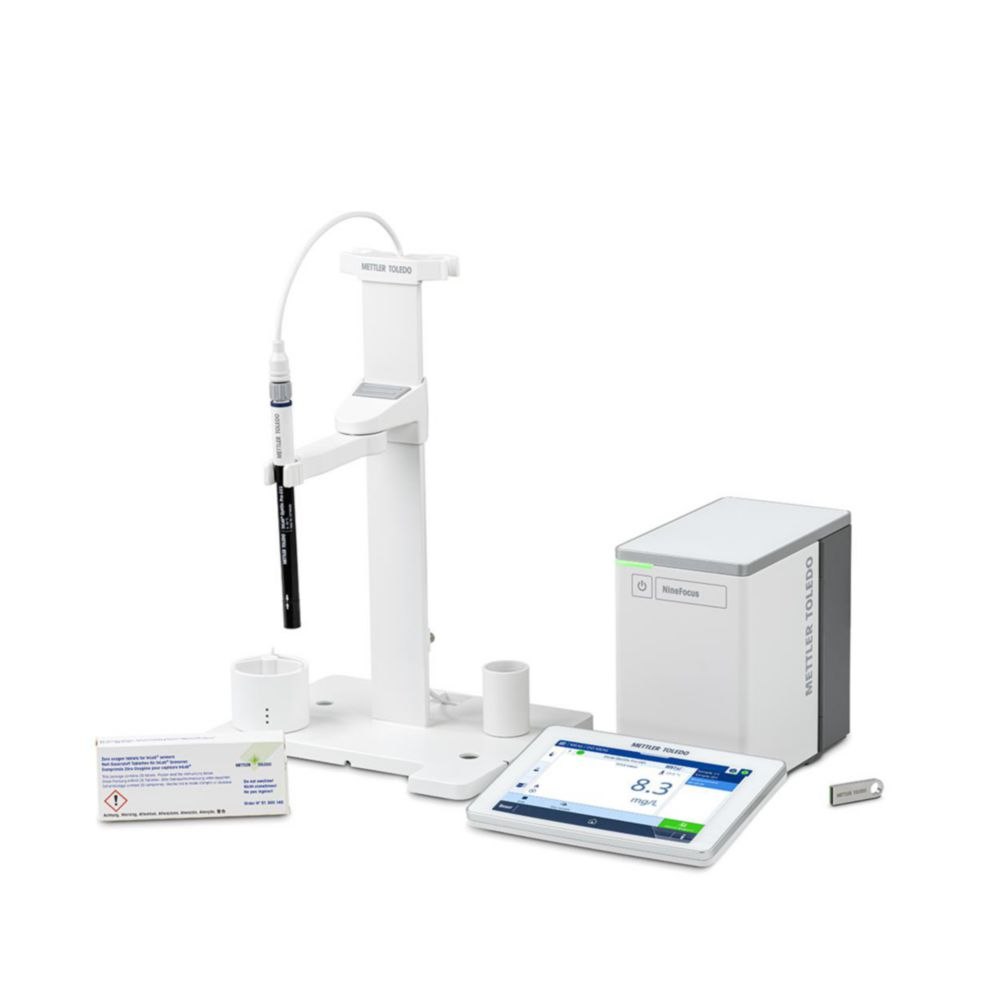

Scope of supply: Meter with built-in digital measuring module, terminal, electrode arm EasyPlace, oxygen electrode InLab® OptiOx Pro-DES, signal bridge, sensor cable, standards

Toote variatsioonid

ConcentrationDepthDimensions (WxDxH)HeightInterfacesIP codeMax. temperatureMax. voltageMin. temperatureMin. voltageCatalog numberPower supplyTemperatureTypeWeightWidthPKKogus
0 ... 50 mg/l (ppm)331 mm195 x 331 x 178 mm178 mm3 x USB-A, USB-C, EthernetIP 52130 °C240 V·AC-30 °C100 V·AC4.714 540100 ... 240 V·AC, 50 ... 60 Hz-30 ... 130 °CNF4000 Kit1604 g195 mm1.00
