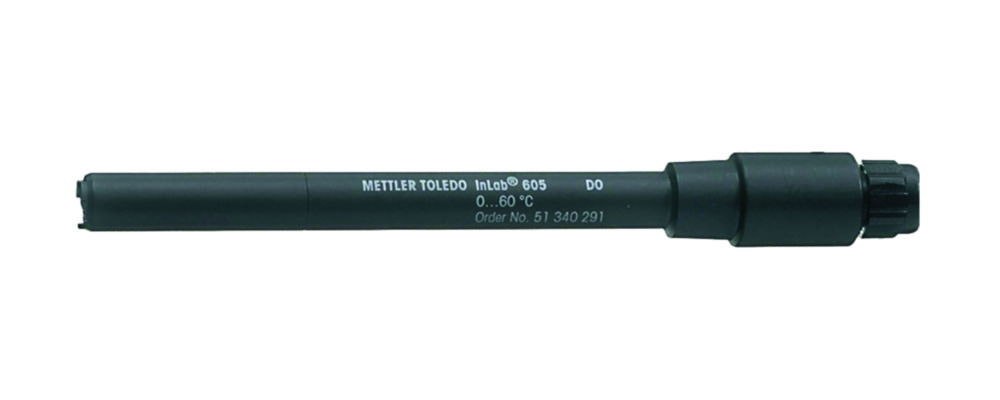

Oxygen sensor InLab® 605 / InLab® 605-ISM
Sensor for polarographic oxygen measurement with high accuracy and repeatability. For use in laboratory, field and industry. Robust construction. Diaphragm mechanically protected by steel mesh, shaft made of glass-fibre reinforced PPS. With integrated temperature sensor.
- InLab® oxygen sensors are designed for use with the SevenExcellence™ multi-channel tabletop meter and the portable SevenGo™ 6 meters
- InLab®-ISM oxygen sensors are equipped with Intelligent Sensor Management, which enables simple calibration in the air and permanent monitoring of the sensor status
Designed for use with the SevenExcellence™ multi-channel tabletop meter and the portable SevenGo™ 68 dual-channel instruments.
Toote variatsioonid
| Cable length | Concentration | Connection plug | Shaft length | Material shaft | Max. temperature | Min. temperature | Catalog number | Saturation | Shaft Ø | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5 m | 0 ... 20 mg/l | BNC/RCA | 120 mm | PPS | 60 °C | 0 °C | 9.041 584 | 0 ... 200 % | 12 mm | 0 ... 60 °C | NTC | InLab® 605-ISM-5m | 1.00 | ||
| 10 m | 0 ... 20 mg/l | BNC/RCA | 120 mm | PPS | 60 °C | 0 °C | 9.041 601 | 0 ... 200 % | 12 mm | 0 ... 60 °C | NTC | InLab® 605-10m | 1.00 | ||
| 1.8 m | 0 ... 20 mg/l | BNC/RCA | 120 mm | PPS | 60 °C | 0 °C | 9.041 583 | 0 ... 200 % | 12 mm | 0 ... 60 °C | NTC | InLab® 605-ISM | 1.00 | ||
| 10 m | 0 ... 20 mg/l | BNC/RCA | 120 mm | PPS | 60 °C | 0 °C | 9.041 585 | 0 ... 200 % | 12 mm | 0 ... 60 °C | NTC | InLab® 605-ISM-10m | 1.00 | ||
| 1.8 m | 0 ... 20 mg/l | BNC/RCA | 120 mm | PPS | 60 °C | 0 °C | 6.239 016 | 0 ... 200 % | 12 mm | 0 ... 60 °C | NTC | InLab® 605 | 1.00 |
