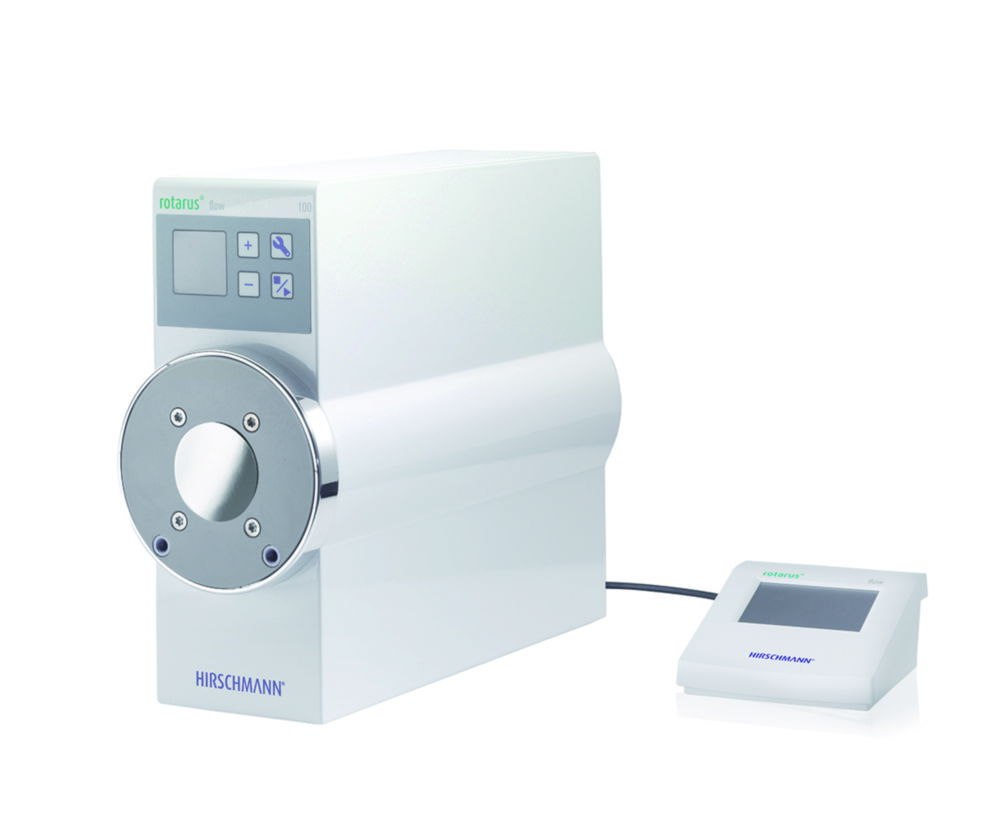

Peristaltic pumps rotarus® flow
Comfortable, precise and performant peristaltic pumps for continuous operation in various speed ranges. With control of speed and flow rate. Housings are available in white powder-coating (IP54 protection) and stainless steel (“i” models, IP65 protection). With integrated RFID technology for detection of pump head and hose as well as automatic blockage detection and hose burst control. A control panel for the most important functions is integrated directly at the pump housing, the external control panel is equipped with a touch screen. The connection technology of the pump heads guarantees rapid handling.
- External control panel, detachable
- Pump drives with two different motors (50 or 100 watts) are available depending on the application, flow rate and medium
- Exchangeable pump heads in single-channel or multi-channel design (not included in scope of delivery)
- Reversible conveying direction
- Quick exchange of pump heads without the use of tools
- TFT touch screen with user-friendly menu
- Calibratable
- Integrated method memory
- Flow rate, calibration function, method memory programmable on the operating module
- USB and RS232 interface for PC connection
- Pump heads of other manufacturers can be used without difficulty via adapter
Scope of supply: Peristaltic pump rotarus® flow, power supply, connection cable EU, UK, US, external control unit
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. flow rate | Max. speed | Max. voltage | Min. flow rate | Min. speed | Min. voltage | Catalog number | Plug type | Power supply | Speed | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 205 mm | 100 x 205 x 220 mm | 0.0001 ... 1500 ml/min | 220 mm | IP 54 | 100 1/min | 240 V | 0.2 1/min | 100 V | 6.266 858 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 0.2 ... 100 1/min | rotarus® flow 50 | 7.3 kg | 100 mm | 1.00 | ||||
| 270 mm | 100 x 270 x 220 mm | 0.0036 ... 5400 ml/min | 220 mm | IP 54 | 500 1/min | 240 V | 5 1/min | 100 V | 6.260 633 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 5 ... 500 1/min | rotarus® flow 100 | 10.1 kg | 100 mm | 1.00 | ||||
| 270 mm | 100 x 270 x 220 mm | 0.0036 ... 5400 ml/min | 220 mm | IP 65 | 500 1/min | 240 V | 5 1/min | 100 V | 7.983 869 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 5 ... 500 1/min | rotarus® flow 100i | 10.1 kg | 100 mm | 1.00 | ||||
| 205 mm | 100 x 205 x 220 mm | 0.0001 ... 1500 ml/min | 220 mm | IP 65 | 100 1/min | 240 V | 0.2 1/min | 100 V | 7.983 866 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 0.2 ... 100 1/min | rotarus® flow 50i | 7.3 kg | 100 mm | 1.00 |
