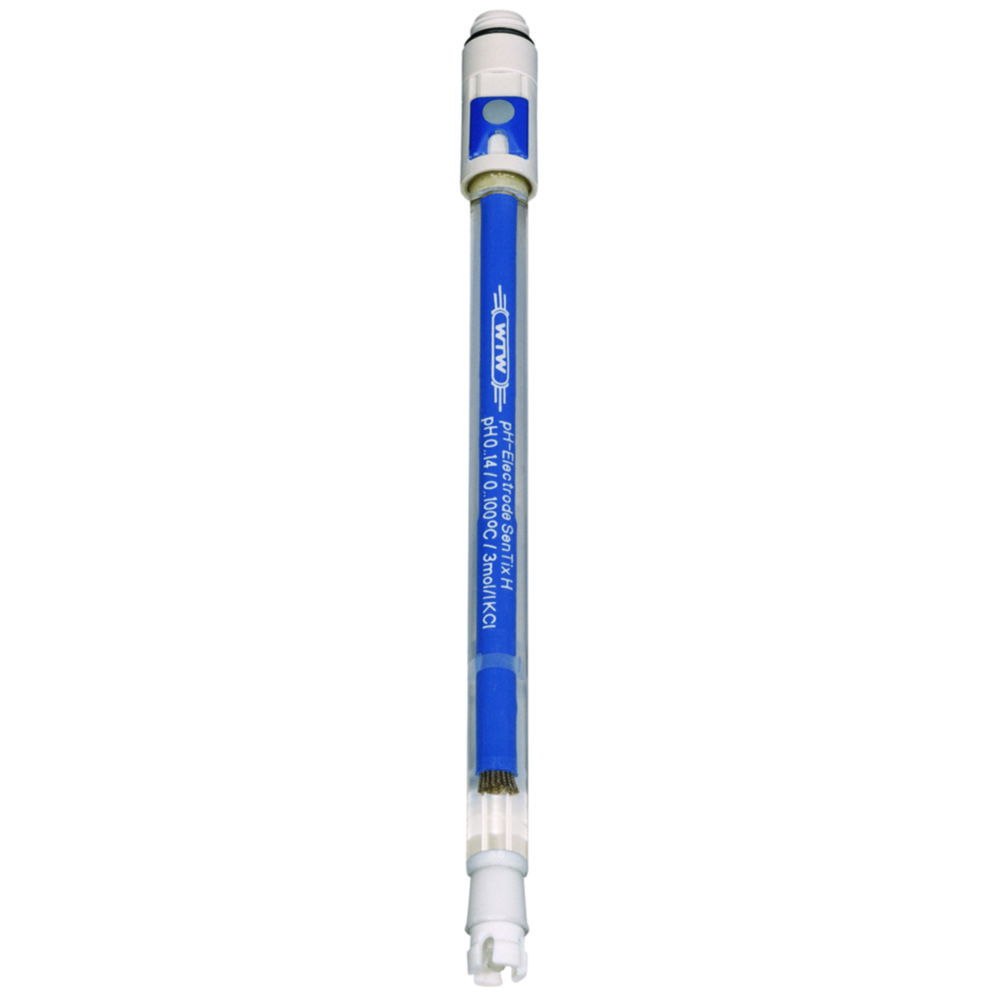

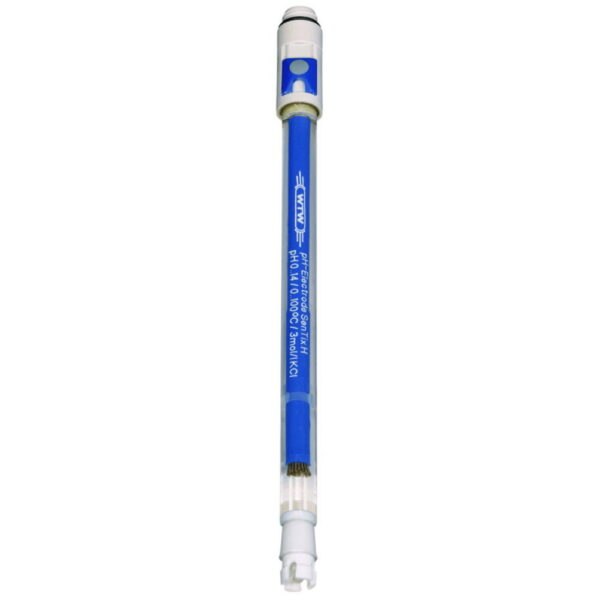

pH combination electrode, SenTix® H / SenTix® HW, refillable
Precision pH combination electrodes with glass shaft and liquid electrolyte. With plug head (AS/DIN or AS/BNC cable combination please order separately). SenTix® H for high alkaline solutions, SenTix® HW for low conductive samples.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shaft Ø | Shape membrane | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Sleeve | KCl 3 mol/l | 170 mm | Glass | 14 | 80 °C | 139459 | 0 °C | 9.040 845 | 0 ... 14 | 12 mm | Cylinder | 0 ... 80 °C | Without | SenTix® H | 1.00 | ||
| Plug head | Sleeve | KCl 3 mol/l | 170 mm | Glass | 14 | 60 °C | 139459 | 0 °C | 7.058 767 | 0 ... 14 | 12 mm | Cylinder | 0 ... 60 °C | Without | SenTix® HW | 1.00 |
