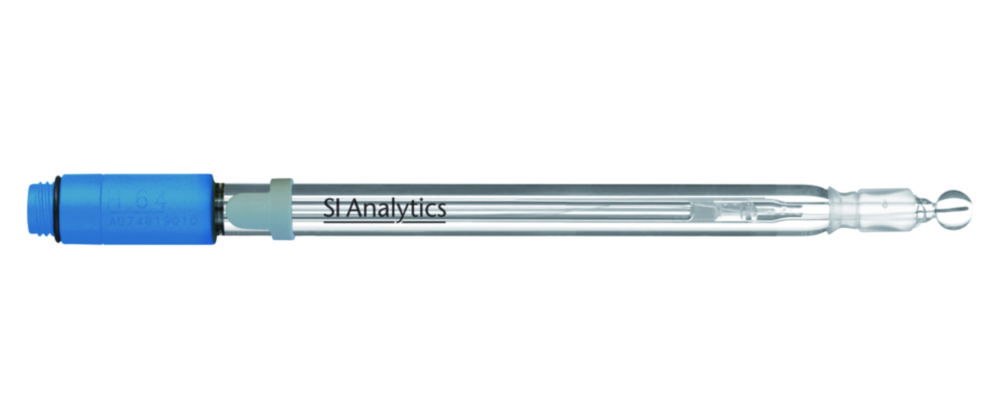

pH-combination electrodes
With plug head, glass shaft, platinum diaphragm (N 64 with sleeve diaphragm), 3mol/l KCl electrolyte, Silamid® reference system and 12mm dia. spherical membrane.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shaft Ø | Shape membrane | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Platinum | KCl 3 mol/l | 120 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 9.041 110 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Without | N 62 | 1.00 | ||
| Plug head | Platinum | KCl 3 mol/l | 120 mm | Glass | 14 | 100 °C | 139459 | -10 °C | 9.041 112 | 0 ... 14 | 12 mm | Sphere | -10 ... 100 °C | Without | H 62 | 1.00 | ||
| Plug head | Platinum | KCl 3 mol/l | 103 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 9.041 130 | 0 ... 14 | 10 mm | Sphere | -5 ... 100 °C | Without | N 65 | 1.00 | ||
| Plug head | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 9.041 120 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Without | N 64 | 1.00 | ||
| Plug head | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | -10 °C | 9.041 105 | 0 ... 14 | 12 mm | Sphere | -10 ... 100 °C | Without | H 61 | 1.00 | ||
| Plug head | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 9.041 100 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Without | N 61 | 1.00 |
