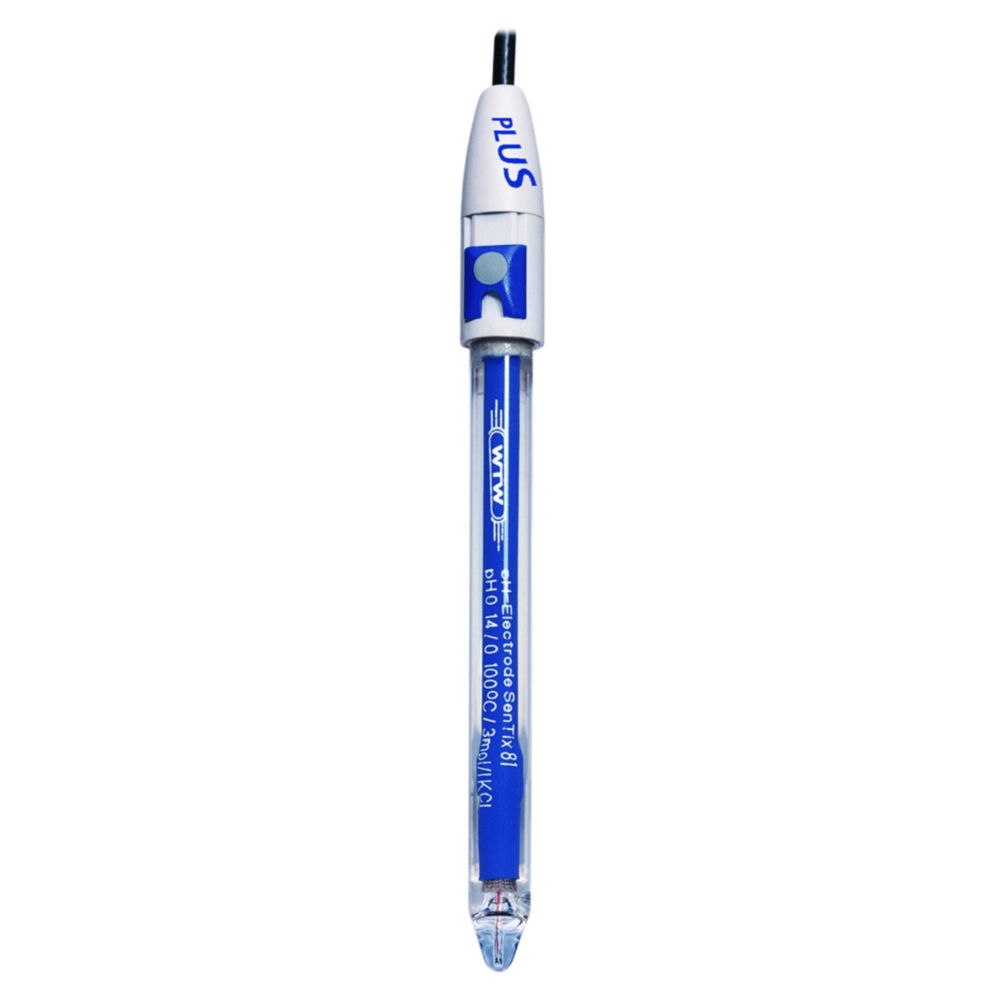

pH combination electrodes, liquid electrolyte, SenTix®, refillable

Standard pH combination electrodes with glass shaft, non-solid electrolytes. With fixed cable (1m). SenTix^® 60 with screw head (AS/DIN or AS/BNC cable combination please order separately).

Toote variatsioonid

Cable length	Connection plug	Diaphragm	Electrolyte	Shaft length	Material shaft	Max. pH value	Max. temperature	Min. pH value	Catalog number	pH range	Shaft Ø	Shape membrane	Temperature	Temperature sensor	Type	PK
1 m	BNC + cinch	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	6.327 708	0 ... 14	12 mm	Cone	0 ... 100 °C	NTC 30 kOhm	SenTix® 86	1.00
1 m	BNC + banana	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	6.326 897	0 ... 14	12 mm	Cone	0 ... 100 °C	Pt 1000	SenTix® 84	1.00
1 m	BNC + jack plug	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	6.327 375	0 ... 14	12 mm	Cone	0 ... 100 °C	NTC 10 kOhm	SenTix® 87	1.00
1 m	DIN + 4 mm banana	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	6.327 630	0 ... 14	12 mm	Cone	0 ... 100 °C	Pt 1000	SenTix® 83	1.00
1 m	BNC + 2 x 4 mm banana	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	6.492 856	0 ... 14	12 mm	Cone	0 ... 100 °C	Pt 1000	SenTix® 85	1.00
1 m	DIN + 4 mm banana	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	9.040 886	0 ... 14	12 mm	Cone	0 ... 100 °C	NTC 30 kOhm	SenTix® 81	1.00
1 m	DIN, watertight	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	9.040 881	0 ... 14	12 mm	Cone	0 ... 100 °C	Without	SenTix® 61	1.00
-	Plug head	Platinum wire	KCl 3 mol/l	120 mm	Glass	14	100 °C	139459	9.040 842	0 ... 14	12 mm	Cone	0 ... 100 °C	Without	SenTix® 60	1.00
