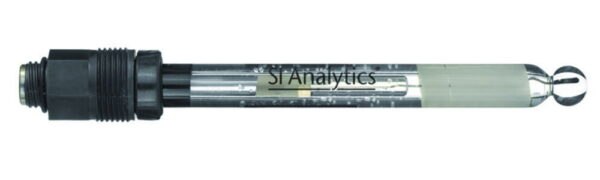

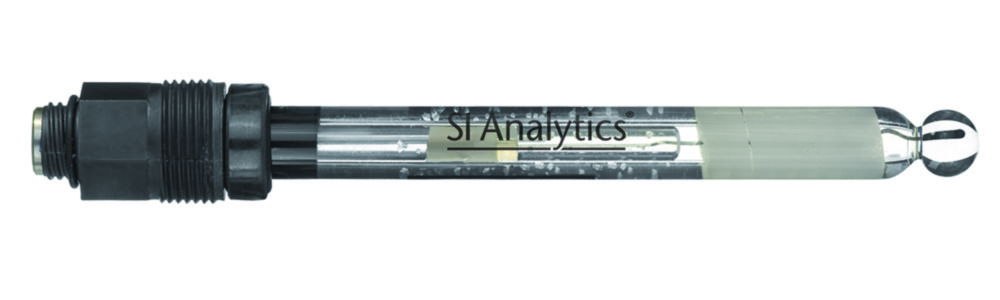

pH combination electrodes with gel electrolyte
Low-maintenance pH combination electrode for use in water management and process chemistry. Not refillable.
- With glass shaft and Silamid® reference
- Gel electrolyte with visible KCl reserve
- With factory test certificate 2.1 for pressure and temperature resistance
Scope of supply: Electrode with screw plug head (Pg 13.5 installation thread), HD seal, connection cable
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shaft Ø | Shape membrane | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Ceramic | Gel | 120 mm | Glass | 12 | 80 °C | 2 | 5 °C | 7.070 780 | 2 ... 12 | 12 mm | Sphere | 5 ... 80 °C | Without | L7781 HD | 1.00 |
