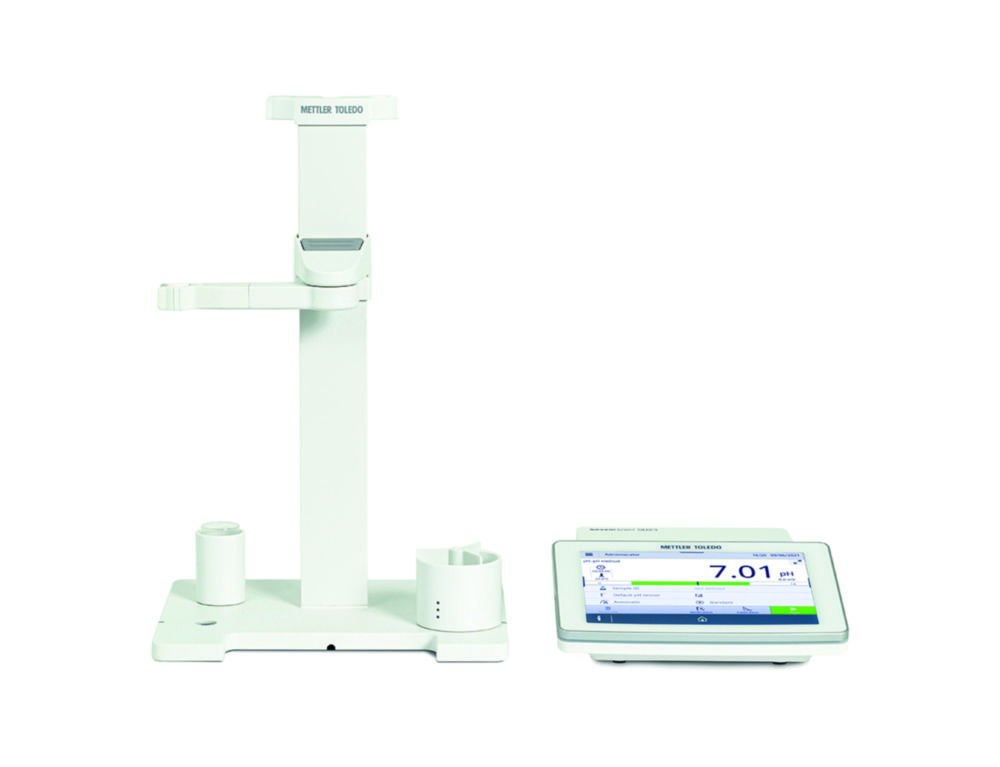

pH/conductivity meter SevenDirect™ SD23
The device SD23 is a robust benchtop meter for measuring pH/mV, conductivity, TDS, salinity, resistivity, and temperature.
- Large 7″ touch screen with intuitive user interface
- Electrode arm EasyPlace™ with holder for up to 3 sensors
- Intelligent Sensor Management (ISM®) ensures the correct use of the connected sensor
- Automatic data transfer to PC or printer
- Additional splash protection thanks to removable cover
- GLP compliant
Scope of supply: pH/conductivity meter, electrode arm EasyPlace™, protective cover, power supply, get-started-guide
Toote variatsioonid
| Catalog number | PK | Conductivity | Depth | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. pH value | Max. voltage | Min. pH value | Min. voltage | mV range | mV range accuracy | pH range accuracy | pH range | pH range resolution | Power supply | Salinity | Salinity accuracy | TDS accuracy | TDS range | Temperature | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.684 935 | 1.00 | 205 mm | 195 x 205 x 65 mm | 65 mm | 2 x USB-A, 1 x USB-B | IP 54 | 20.000 | 240 V | -2.000 | 100 V | -2000.0 ... 2000.0 | ±0.1 (-500.0 ... 500.0 mV)/±0.2 (-2000.0 ... 2000.0 mV) | ±0.002 | -2.000 ... 20.000 | 0.1/0.01/0.001 | 100 ... 240 V, 50/60 Hz | 0.00 ... 80.00 psu | 0.5 % of measured value | 0.5 % of measured value | 0.00 mg/l ... 1000 g/l | -30 ... 130 °C | SD23 | 850 g | 195 mm |
