pH electrodes ProcessLine

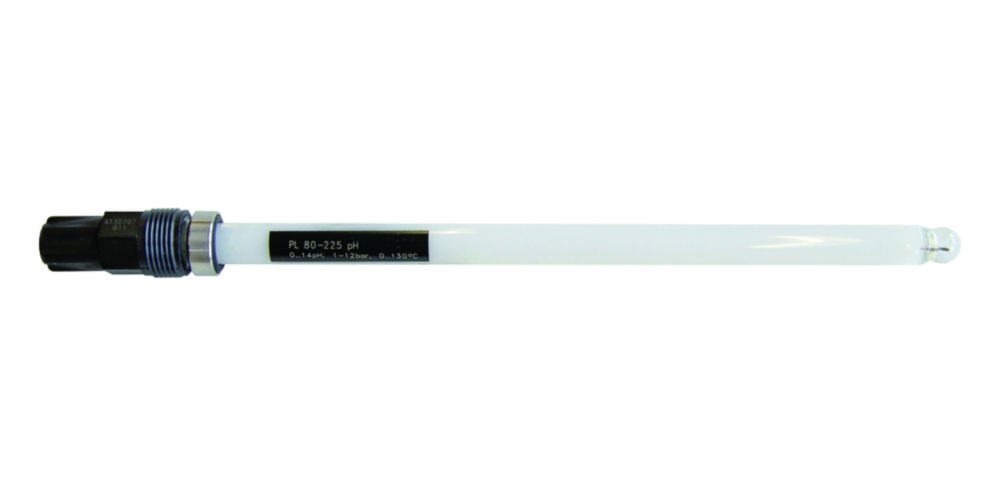

Low-maintenance pH combination electrode, glass shaft, Silamid®-reference system.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shaft Ø | Shape membrane | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VP plug head | Hole | DuraLid | 120 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.282 623 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Pt 1000 | PL 81-425pHT VP | 1.00 | ||
| S8 plug head | Hole | DuraLid | 325 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.261 678 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Without | PL 80-120pH | 1.00 | ||
| VP plug head | Hole | DuraLid | 120 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.259 996 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Pt 100 | PL 82-120pHT VP | 1.00 | ||
| VP plug head | Hole | DuraLid | 225 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.259 934 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Pt 1000 | PL 81-225pHT VP | 1.00 | ||
| VP plug head | Hole | DuraLid | 225 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.269 541 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Pt 100 | PL 82-225pHT VP | 1.00 | ||
| S8 plug head | Hole | DuraLid | 225 mm | Glass | 14 | 130 °C | 139459 | 0 °C | 6.240 901 | 0 ... 14 | 12 mm | Sphere | 0 ... 130 °C | Without | PL 80-225pH | 1.00 |
