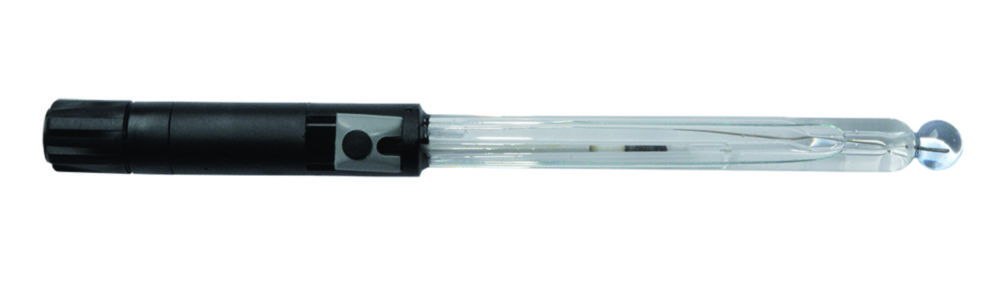

pH-Electrodes ScienceLine plus MF
With glass shaft, Silamid® reference system with silver ion barrier and double-electrolyte, electrolyte KCl 3 mol/l. SCPpHT-A170MF-3M-DIN-N additionally with ID function.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Shaft length | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shaft Ø | Shape membrane | Temperature | Temperature sensor | Type | PK | Cable length | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 4.672 221 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Without | SCPpH-H170MF | 1.00 | - | ||
| Plug head | Platinum | KCl 3 mol/l | 120 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 4.672 220 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Without | SCPpH-A120MF | 1.00 | - | ||
| BNC + banana | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 4.672 218 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Pt 1000 | SCPpHT-A170MF-3M-BNC-N | 1.00 | 3 m | ||
| DIN + banana | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 4.672 219 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Pt 1000 | SCPpHT-A170MF-3M-DIN-N | 1.00 | 3 m | ||
| DIN + banana | Platinum | KCl 3 mol/l | 170 mm | Glass | 14 | 100 °C | 139459 | 5 °C | 4.672 222 | 0 ... 14 | 12 mm | Sphere | -5 ... 100 °C | Pt 1000 | SCPpHT-H170MF-3M-DIN-N | 1.00 | 3 m |
