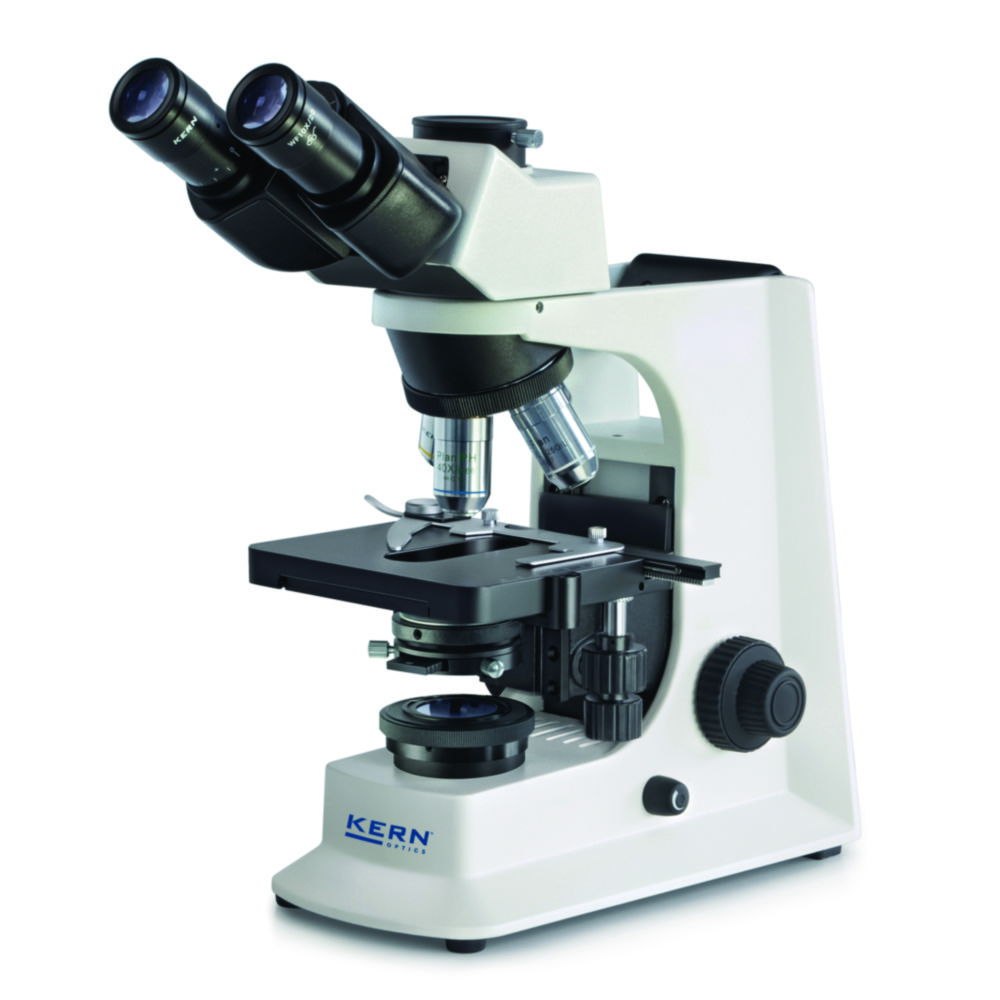

Phase contrast microscopes OBL 14/15
For extremely translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue) with phase contrast.
- Infinity optical system
- Tube 30° inclined, 360° rotatable
- Diopter adjustment at one eyepiece tube
- Coaxial pre-and fine focussing
- Abbe N.A. 1,25 precentered, for bright field and phase contrast
- Lightfield diaphragm
- 20 W halogen or 3 W LED illumination
Scope of supply: Microscope, protective dust cover, eye cups, user instructions
Toote variatsioonid
| Condenser | Depth | Depth stage | Dimensions (WxDxH) | Height | Light type | Max. voltage | Catalog number | Plug type | Power supply | Revolving nosepiece | Stage (WxD) | Tube | Type | Weight | Width | Width stage | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abbe N.A. 1,25 | 200 mm | 130 mm | 395 x 200 x 380 mm | 380 mm | LED | 230 V | 6.491 772 | EU | 230 V, 50 Hz | 4-fold | 145 x 130 mm | Trinocular | OBL 156 | 6.7 kg | 395 mm | 145 mm | 1.00 | ||
| Abbe N.A. 1,25 | 200 mm | 130 mm | 395 x 200 x 380 mm | 380 mm | LED | 230 V | 4.691 073 | EU | 230 V, 50 Hz | 4-fold | 145 x 130 mm | Binocular | OBL 146 | 6.7 kg | 395 mm | 145 mm | 1.00 |
