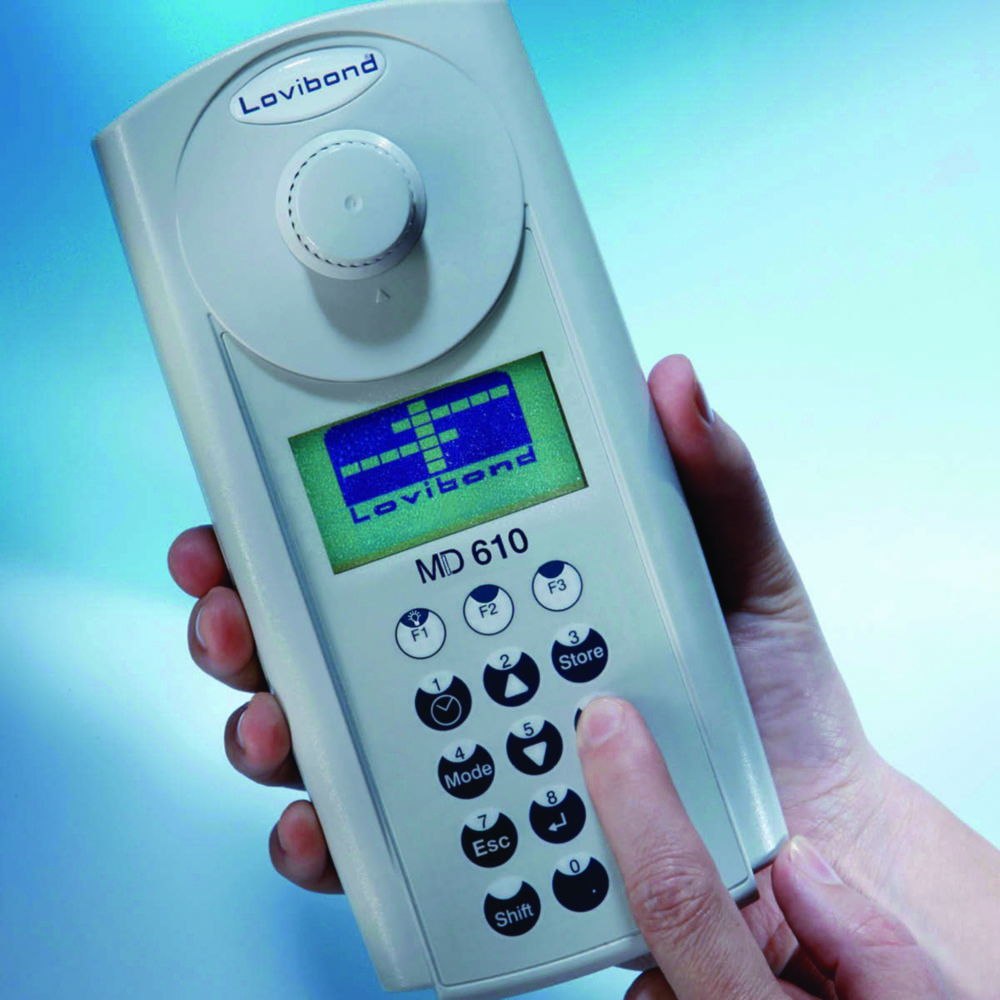

Photometer system MD 600 / MD 610

Modern, mobile photometers for rapid, reliable water testing
All important water analysis parameters from Aluminium to Zinc are covered by these two devices. Combined with the high precision of Lovibond^® reagents, a reliable and quick analysis of water samples is guaranteed. Reagent tablets, powder reagents, liquid reagents, or cuvette tests are used depending on the method. Please order separately. Six long-lasting LEDs serving as a light source in combination with interference filters guarantee the highest precision. The devices are designed without moving optical parts and thus have a maintenance-free measuring unit. Up to 1000 data records can be stored in the MD 600, MD 610 stores 500 data records.

• Highest/reproducible precision with interference filter
• Display with background lighting
• More than 120 pre-programmed methods
• Automatic selection of wavelength
• User guidance in German, English, French, Spanish, Italian, Portuguese, Polish
• Buffer for up to 1000 data records
• More than 35 user-specific methods possible
• Waterproof housing (as defined in IP 68, 1 hour at 0.1 meter)
• Handheld format, portable

MD 600 only:

• Infrared interface

MD 610 only:

• Bluetooth interface for connection to smart phones and tablets
• Cost-free iOS^®– and Android™-App for data management and email delivery

Scope of supply: The instrument is supplied complete and ready-to-use in a carrying case, incl. 4 batteries, 3 vials diam. 24 mm, 3 vials diam. 16 mm, 1 adapter each for 16 mm and 13 mm vials.

Please order reagents separately.

• Specifications
• Optics: High-quality Interference Filters
• Power Supply: 4 batteries (Mignon AA/LR6)
• Operation time: approx. 26 hours; continuous operation or 3500 tests
• Dimensions ( W x D x H): approx. 210 x 95 x 45 mm (unit)
  approx. 395 x 295 x 106 mm (case)
• Wavelengths: 530 / 560 / 610 / 430 / 580 / 660 nm
• Wavelength Accuracy: ±1 nm
• Photometric Accuracy: 0.005 A
