Photometer system MultiDirect

With Dual Beam Technology. The MultiDirect is a modern, microprocessor-controlled photometer with ergonomically designed keypad and large-format graphic display. It is equipped with a wide range of pre-programmed methods (e.g. ammonia, COD, phosphate) based on the proven range of Lovibond^® tablet reagents, liquid reagents, vial tests and powder reagents. The calibration and software-supported control options mean that the unit is also suitable for use as a testing instrument. The seven standard rechargeable batteries (supplied) ensure easy mobile use.

• Wide range of pre-programmed methods
• Large, graphics display
• RS232 interface
• Suitable for use with standard rechargeable batteries
• Updates for new methods and languages via the Internet
• 1000 data set memory
• Custom method recall is also possible

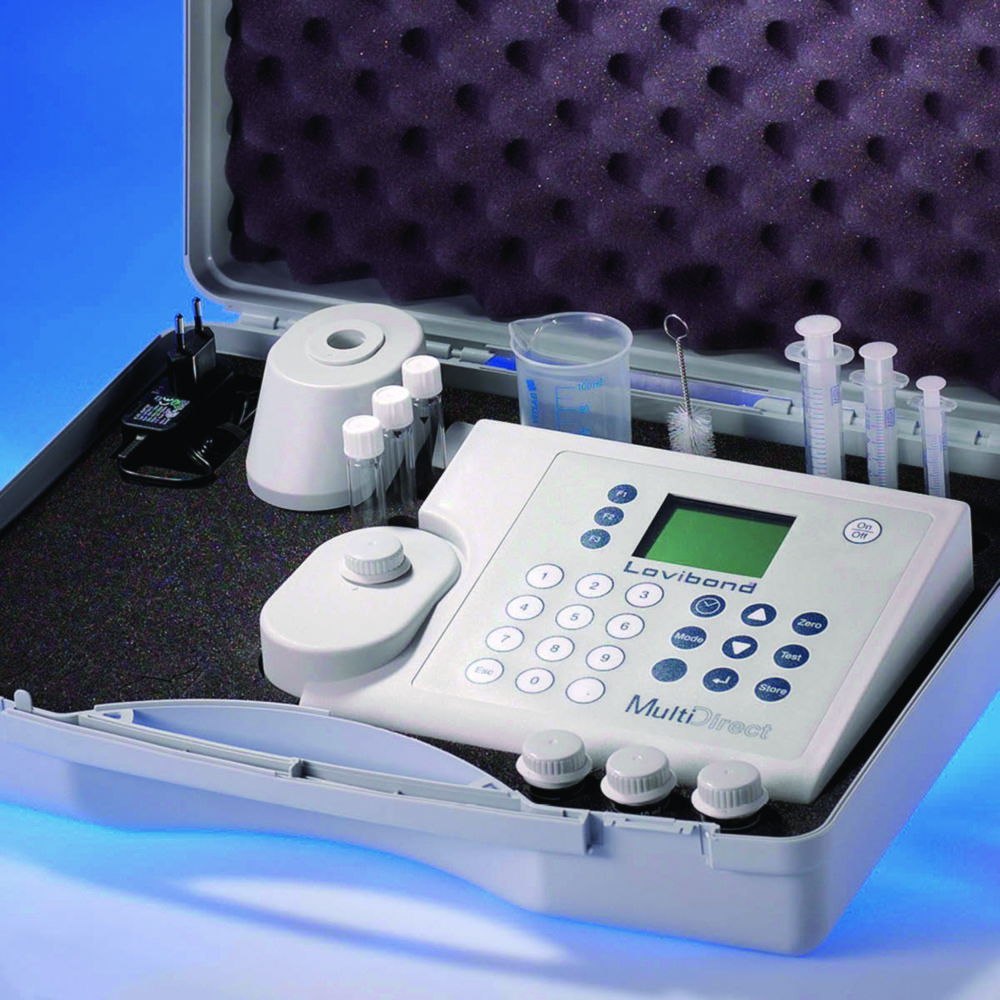

Scope of supply: MultiDirect, ready-to-use incl. 7 x rechargeable batteries and battery charger for 100 – 240V, 3 each 24mm and 16mm cuvettes, 16mm cuvette adapter, 3 x syringes, 1 x 100ml plastic beaker and case with waterproof insert. Without reagents and without battery (please order separately).

Verification Standard Kit: The verification standard kit for the MultiDirect is designed to reassure the user about the accuracy and the reliability of the results. The shelf life of the standard kit is two years from the date of production, provided that storage and use are in accordance with the instructions provided. Measurements are taken in mAbs.

• Specifications
  Optics:
  Dual-Beam Technology, High-quality Interference Filters
• Measuring time:
  Power supply: approx. 10 seconds
  7 Ni-MH-battery pack (1.5V AA), charged in the unit using external power pack
• Dimensions (W x D x H):
  Ambient operating conditions:
  Approval: 265mm x 70mm x 195mm
  up to max 90 % humidity (non condensing), approx. 5 … 40 °C
  CE
• Wavelengths: 430/ 530/ 560/ 580/ 610/ 660nm
