Photometers MD 100 Boiler Water/Cooling Water

Photometer instruments, specially designed for cooling and boiler water analysis. Thanks to the handy format and the user-friendly indicator chemistry, most of the important parameters can be determined on site. The photometers are supplied pre-calibrated with test methods, simply add the appropriate Lovibond^® reagent sets (tablets, powder packs and liquids).

• Scroll Memory
• Automatic Switch-Off
• Real-Time-Clock and Date
• Calibration Mode
• Backlit Display
• Storage Function
• One Time Zero (OTZ)
• Waterproof (IP 68)

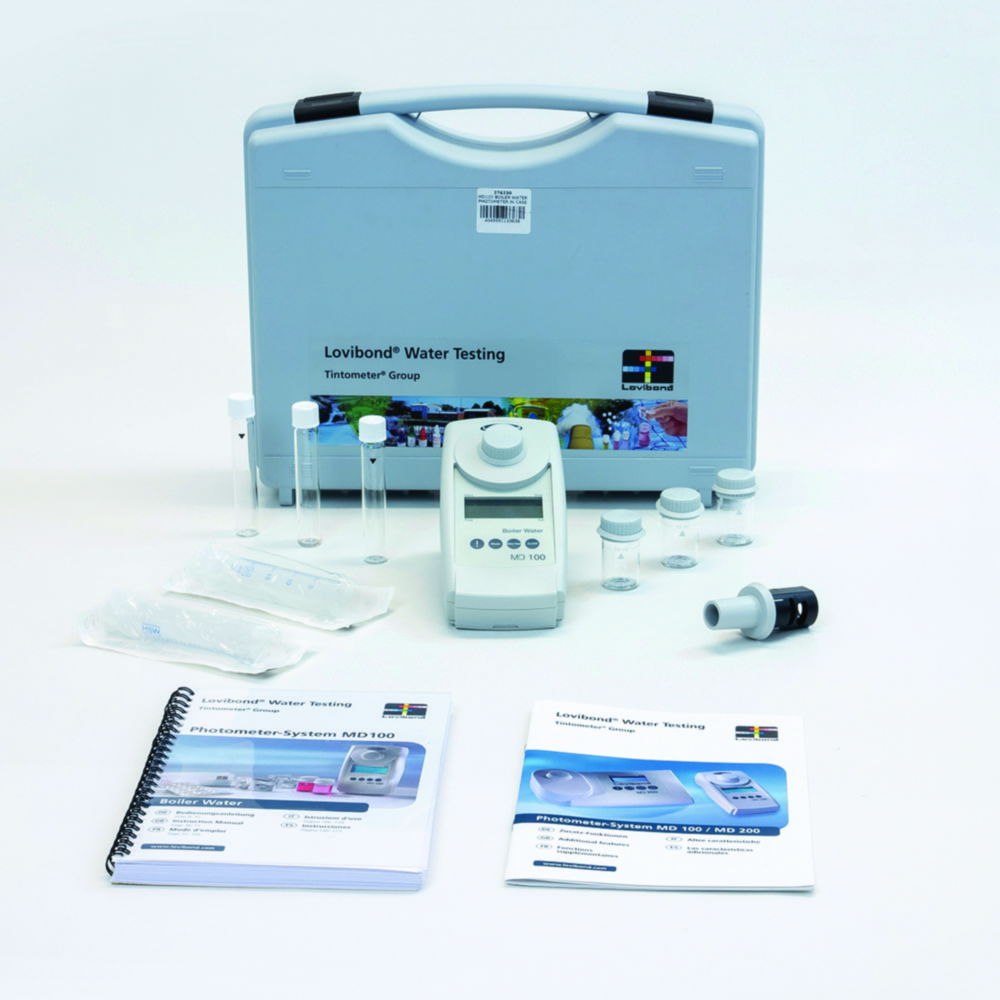

Scope of supply: instrument in a sturdy plastic case, batteries, 3 glass vials, standard accessories, instruction manual.
Please order reagents separately! Please pay attention that some reagents could be used for Boiler Water or Cooling Water only.

• Optics LEDs, interference filters (IF) and photo sensor in transparent sample chamber
• Wavelength Accuracy ± 1 nm
• Photometric Accuracy
  Photometric Resolution 3% FS (T = 20°C – 25°C)
  0,01 A
• Power Supply 4 micro batteries (AAA), capacity approx. 17 hours or 5000 tests
• Auto-Off automatic switch-off
• Display backlit LCD (on keypress)
• Storage internal ring memory for 16 data sets
• Interfaces infrared interface for test data transfer
• Additional Feature real time clock and date
• Calibration factory calibration and user calibration. Reset to factory calibration possible
• Dimensions 155 x 75 x 35 mm (L x W x H)
• Weight basic unit approx. 260 g
• Environmental conditions temperature: 5 – 40 °C, rel. humidity: 30 -90% (non condensing)
