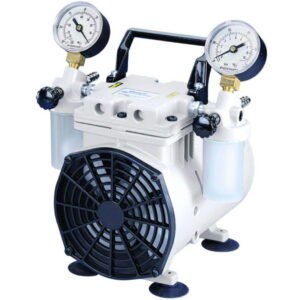

Piston pump, complete
Piston pumps are a reliable partner for physical applications, notably with aqueous solutions. Being a vacuum pump and compressor, it can be used for a wide variety of applications such as filtration, gas sampling, vacuum drying, desiccation and automation technology. The integrated vacuum and pressure gauges and regulators allow the pressure to be continuously monitored and adjusted. For use with dry or aqueous vapor applications only.
- Oil free
- Easy to clean
- Easy maintenance
- Easy handling and control features
- Robust construction
- Pressure connection with exhaust silencer
- Suction/pressure connection: hose nozzle DN 8 for hose inner diameter 8 mm
Scope of delivery: vacuum pump, vacuum and pressure regulators with gauges, inlet water trap and muffler
- Specifications
- Suction/pressure connection: DN 8
- Ambient temperature: 10 … 40 °C
- Max. Operating gas temperature: 60 °C
- Noise DIN EN ISO 2151: 56 dB (A)
- IP code: IP 20
Toote variatsioonid
| Power W | Dimensions (W x D x H) mm | Ultimate pressure mbar | Max. pressure bar | Flow rate l / min. | Weight kg | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 93 | 206 x 224 x 254 | 93 | 5.8 | 28 | 5.3 | 6.287 586 | 1.00 | ||
| 190 | 254 x 191 x 77 | 80 | 5.2 | 38 | 6.3 | 6.287 587 | 1.00 | ||
| 93 | 206 x 224 x 254 | 133 | 7.9 | 18 | 5.3 | 6.287 585 | 1.00 |
