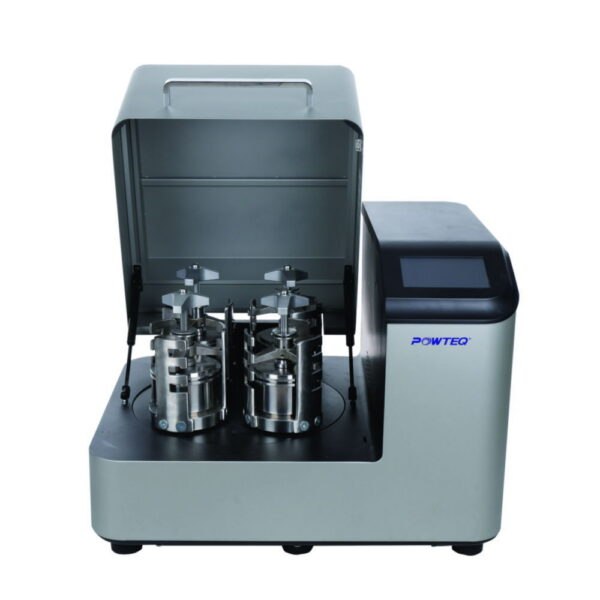

Planetary Ball Mill BM40

For rapid grinding of soft, hard, brittle and fibrous materials down to a final fineness of less than 1 µm in laboratories and pilot plants. Also suitable for colloid grinding. Suitable for use in geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying, pharmacy, chemistry, biology and analysis preparation.

• Grinding platform with 4 stations for up to 8 grinding bowls
• Suitable for continuous operation
• Grinding time digitally adjustable from 0 to 999 minutes
• Variable speed of the sun wheel from 30 to 400 min^-1
• For dry and wet grinding
• Programmable grinding parameters
• Automatic reversal of direction to avoid agglomerations
• Ventilated grinding chamber for cooling the grinding bowl
• Control via 7″ LCD display with one-button operation
• Safety interlock
• Grinding bowls made of different materials and with different capacities available as accessories

Grinding bowls and balls are not included in the scope of supply and must be ordered separately.

• Specifications
• Feed size: <10 mm
• Final fineness: <1 µm, <0.1 µm (colloidal grinding)
• Speed range:
  Effective sun wheel diameter:
  Performance: 30 … 400 min^-1 (sun wheel)
  360 mm
  1500 W
• Dimensions (W x D x H): 645 x 768 x 621 mm
• Weight: 170 kg
• Power supply: 220 V, 50 Hz
