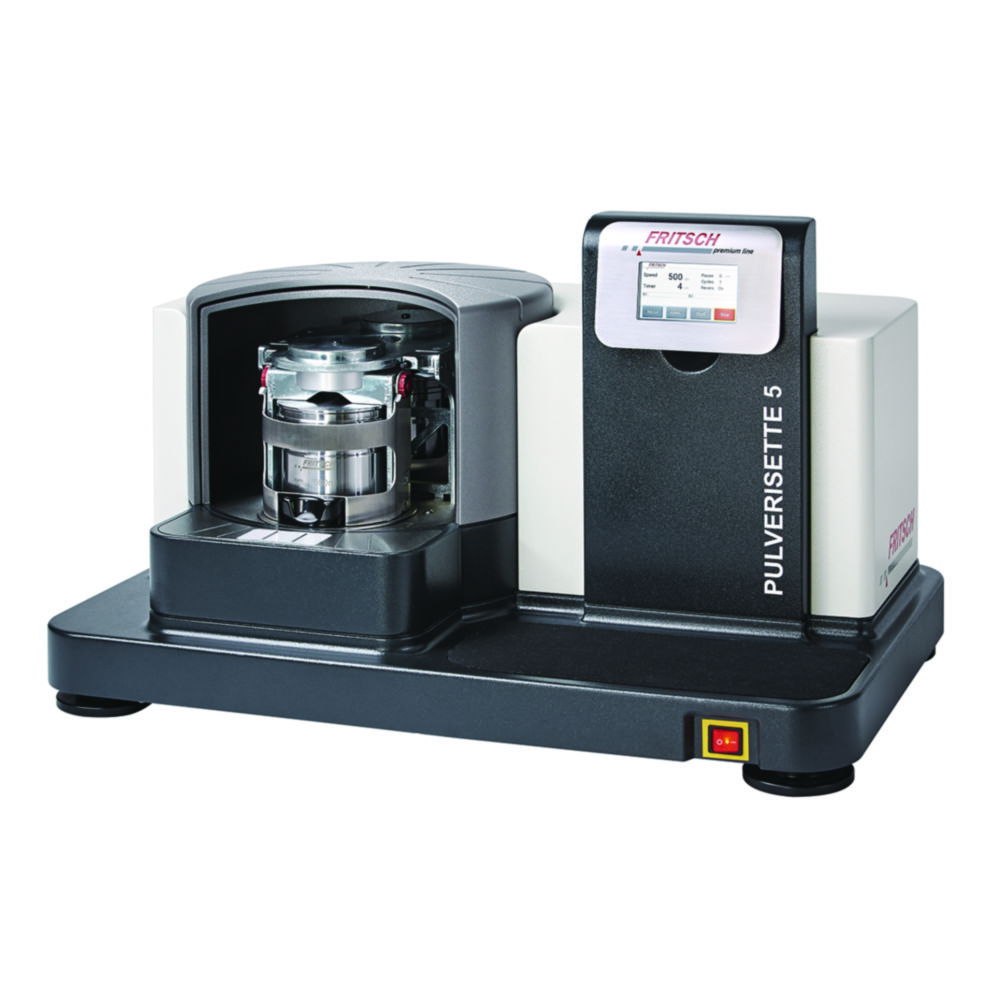

Planetary ball mills PULVERISETTE 5 premium line

Ideal for high-performance grinding down into the nano range of hard, medium-hard, brittle and fibrous materials with extremely short grinding times dry, in suspension or in inert gas in the areas of nanotechnology, geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying/activation, pharmaceuticals, chemistry, biology, sample preparation for analysis. They are also the perfect choice for highly efficient mixing and homogenizing.
Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.
The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.

Toote variatsioonid

DepthDimensions (WxDxH)Feed quantityHeightMax. feed quantityatr_llg_max_final_finenessMax. speedMax. voltageatr_llg_min_feed_quantityMin. speedMin. voltageCatalog numberPlug typePower supplyRated capacitySpeedatr_llg_type_of_grindingWeightWidthPKKogus
520 mm820 x 520 x 480 mm15 ... 450 ml480 mm450 ml100 nm1600 1/min240 V15 ml200 1/min200 V6.290 676EU200 ... 240 V, 50/60 Hz2800 W200 ... 1600 1/mindry/wet110 kg820 mm1.00
