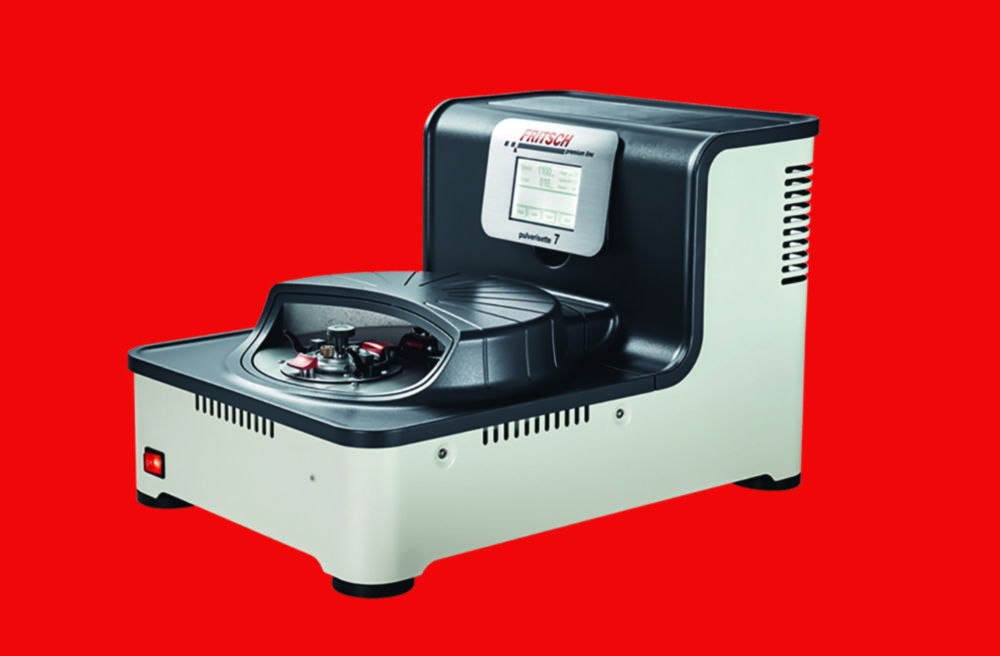

Planetary ball mills PULVERISETTE 7 premium line
Ideal for high-performance grinding down into the nano range of hard, medium-hard, brittle and fibrous materials with extremely short grinding times dry, in suspension or in inert gas in the areas of nanotechnology, geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying/activation, pharmaceuticals, chemistry, biology, sample preparation for analysis. They are also the perfect choice for highly efficient mixing and homogenizing.
Grinding bowls and balls are offered in different sizes for optimal adaption to the sample volume and desired final fineness as well as in different materials to provide maximum protection against undesired contamination.
The completely brand new clamping of the grinding bowls, the automatic check of the fastening of the bowls inside the mill, the blockage of the mill in the event of impermissible operating states or imbalance and the automatic bowl detection guarantee maximum safety.
Toote variatsioonid
Depth | Height | Max. feed quantity | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Rated capacity | Weight | Width | PK | atr_llg_max_final_fineness | atr_llg_min_feed_quantity | atr_llg_type_of_grinding | Dimensions (WxDxH) | Feed quantity | Power supply | Speed | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
580 mm | 360 mm | 60 ml | 2200 1/min | 230 V | 200 1/min | 115 V | 6.233 706 | EU | 1200 W | 44 kg | 400 mm | 1.00 | 100 nm | 1 ml | dry/wet | 400 x 580 x 360 mm | 1 ... 60 ml | 115 ... 230 V, 50/60 Hz | 200 ... 2200 1/min |
