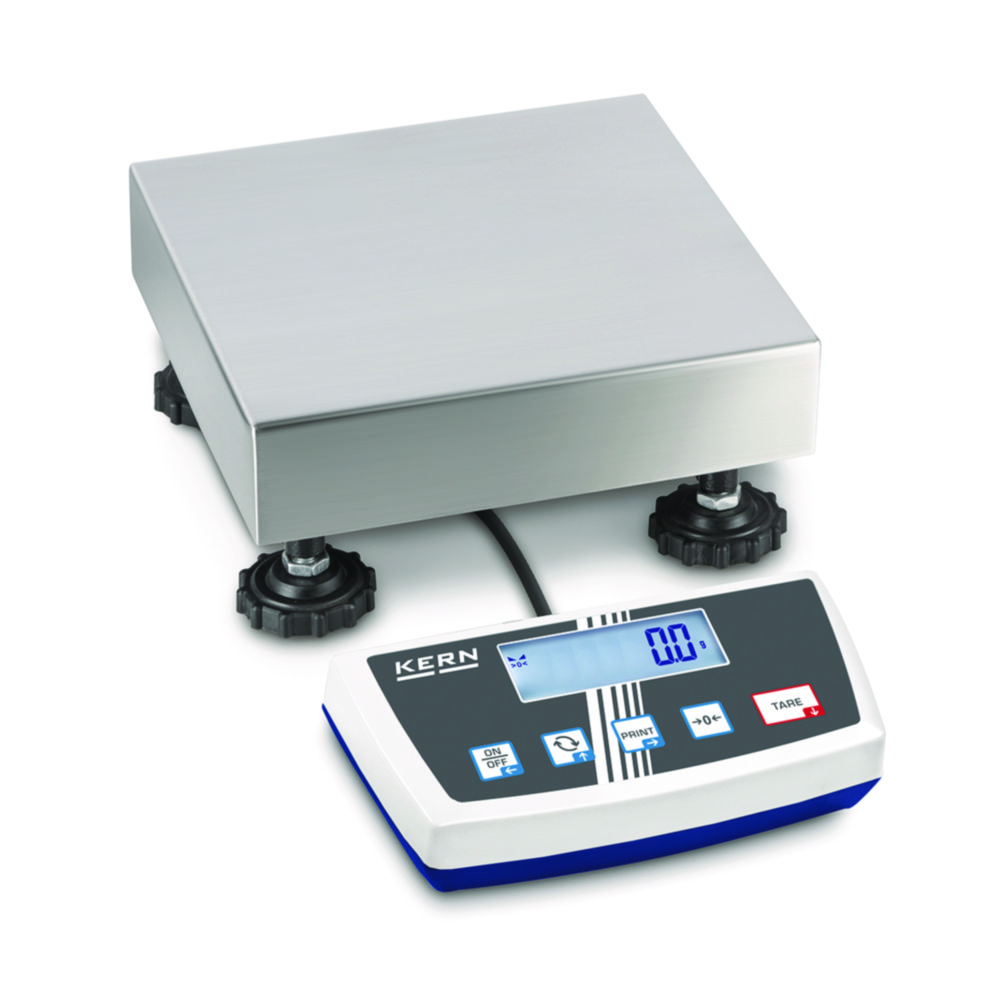

Platform scales DS, IoT-Line

High-capacity precision balance, ideal for high volume or heavy samples to be weighed with a high degree of accuracy. The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) enables searching and remote control of the balance using external control devices or computers.

Large backlit LCD display

Numerical subtraction of tare weight

Freely programmable weighing unit

Dimensions of display device (W×D×H): 225×115×60 mm

Scope of supply: Platform scale, protective working cover

Toote variatsioonid

Adjusting program	Depth	Depth weighing plate	Dimensions (WxDxH)	Height	Linearity	Material housing	Max. load	Max. voltage	Min. voltage	Catalog number	Plug type	Power supply	Readability	Reproducibility	Type	Waranty	Weighing plate (WxD)	Weight	Width	Width weighing plate	PK
External	318 mm	318 mm	308 x 318 x 75 mm	75 mm	±0,6 g	Plastic	36 kg	240 V·AC	100 V	6.231 638	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,2 g	0,2 g	DS 36K0.2	3 years	308 x 318 mm	10 kg	308 mm	308 mm	1.00
External	318 mm	318 mm	308 x 318 x 75 mm	75 mm	±0,3 g	Plastic	16 kg	240 V·AC	100 V	6.231 393	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,1 g	0,1 g	DS 16K0.1	3 years	308 x 318 mm	8 kg	308 mm	308 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±3 g	Plastic	150 kg	240 V·AC	100 V	4.660 122	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	1 g	1 g	DS 150K1	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	318 mm	318 mm	308 x 318 x 75 mm	75 mm	±0,5 g	Plastic	30 kg	240 V·AC	100 V	7.654 362	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,1 g	0,2 g	DS 30K0.1	3 years	308 x 318 mm	8 kg	308 mm	308 mm	1.00
External	230 mm	228 mm	230 x 230 x 103 mm	103 mm	±0,3 g	Plastic	10 kg	240 V·AC	100 V	6.253 034	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,1 g	0,1 g	DS 10K0.1S	3 years	228 x 228 mm	4.2 kg	230 mm	228 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±1,5 g	Plastic	65 kg	240 V·AC	100 V	7.639 034	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,5 g	0,5 g	DS 65K0.5	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±0,6 g	Plastic	36 kg	240 V·AC	100 V	7.619 921	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,2 g	0,2 g	DS 36K0.2L	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	318 mm	318 mm	308 x 318 x 75 mm	75 mm	±0.15 g	Plastic	8 kg	240 V·AC	100 V	6.235 614	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0.05 g	0.05 g	DS 8K0.05	3 years	308 x 318 mm	8 kg	308 mm	308 mm	1.00
External	318 mm	318 mm	308 x 318 x 75 mm	75 mm	±0,3 g	Plastic	20 kg	240 V·AC	100 V	7.629 878	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,1 g	0,1 g	DS 20K0.1	3 years	308 x 318 mm	8 kg	308 mm	308 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±0,5 g	Plastic	30 kg	240 V·AC	100 V	7.655 355	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,1 g	0,2 g	DS 30K0.1L	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±1,5 g	Plastic	100 kg	240 V·AC	100 V	7.616 116	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,5 g	0,5 g	DS 100K0.5	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	400 mm	400 mm	500 x 400 x 125 mm	125 mm	±1 g	Plastic	60 kg	240 V·AC	100 V	7.636 179	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0,2 g	0,4 g	DS 60K0.2	3 years	500 x 400 mm	19 kg	500 mm	500 mm	1.00
External	230 mm	228 mm	230 x 230 x 103 mm	103 mm	±0.05 g	Plastic	3 kg	240 V·AC	100 V	7.646 165	EU/CH/UK/US	100 ... 240 V·AC, 50 ... 60 Hz	0.01 g	0.02 g	DS 3K0.01S	3 years	228 x 228 mm	4.2 kg	230 mm	228 mm	1.00
