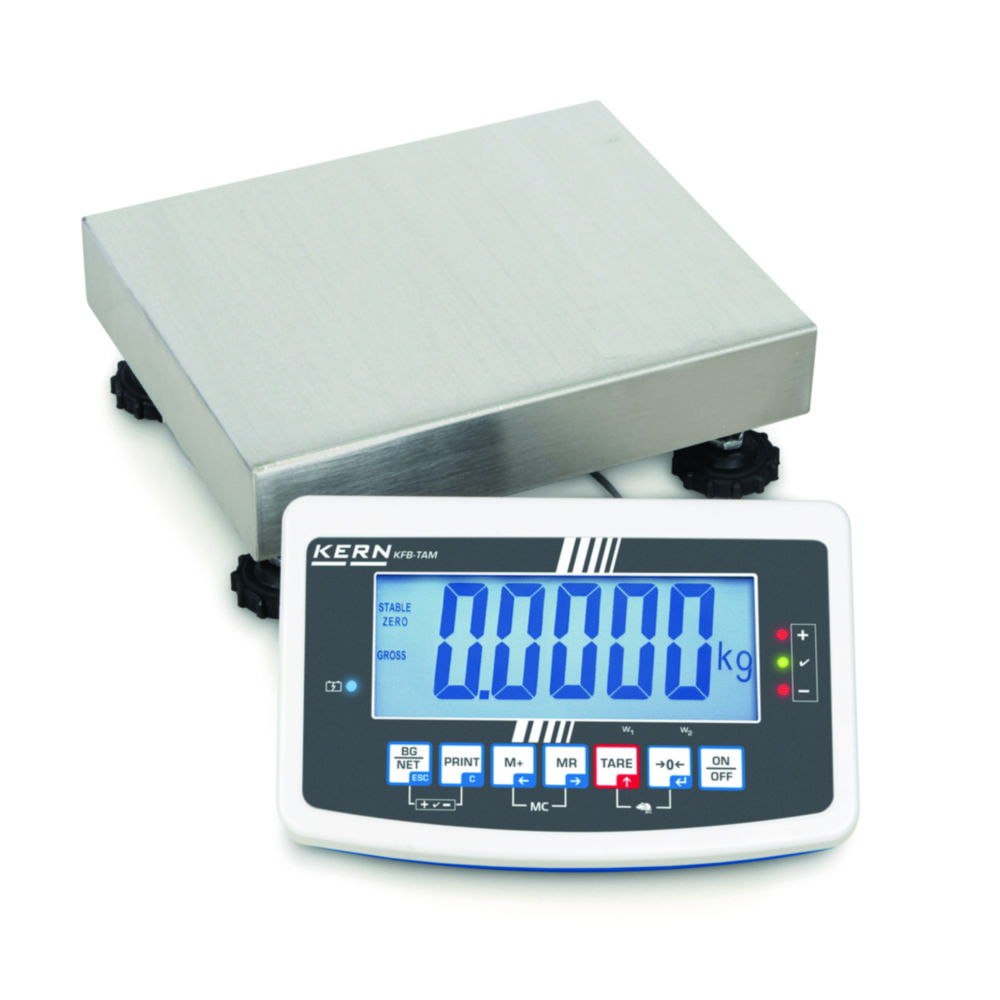

Platform scales IFB
High-resolution scale in heavy version.
- Weighing plate stainless steel, painted steel base, silicone-coated aluminium load cell
- Display device with large backlit LCD display, digit height 52 mm
- Level indicator and levelling feet for precise levelling of the scale
- Weighing with tolerance range (checkweighing)
- Totalising of weights and piece counts
- Hold function
- Interface RS-232
Scope of supply:
Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
Toote variatsioonid
| Depth weighing plate | IP code | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Type | Verified calibration | Weighing plate (WxD) | Weight | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 500 mm | IP 65 | 150 kg | 240 V | 100 V | 4.660 286 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 5 g | IFB 100K-3L | Not verifiable | 650 x 500 mm | 20 kg | 650 mm | 1.00 | ||
| 400 mm | IP 65 | 150 kg | 240 V | 100 V | 6.286 288 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 5 g | IFB 100K-3 | Not verifiable | 500 x 400 mm | 11 kg | 500 mm | 1.00 | ||
| 500 mm | IP 65 | 300 kg | 240 V | 100 V | 4.660 290 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 1,0 g | IFB 300K-2 | Not verifiable | 650 x 500 mm | 20 kg | 650 mm | 1.00 | ||
| 230 mm | IP 65 | 6 kg | 240 V | 100 V | 4.691 232 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 0,2 g | IFB 6K-4S | Not verifiable | 230 x 230 mm | 4.6 kg | 230 mm | 1.00 | ||
| 600 mm | IP 65 | 600 kg | 240 V | 100 V | 4.660 293 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 20 g | IFB 600K-2 | Not verifiable | 800 x 600 mm | 44 kg | 800 mm | 1.00 | ||
| 240 mm | IP 65 | 6 kg | 240 V | 100 V | 6.284 382 | EU/UK/US | 100 ... 240 V, 50/60 Hz | 0,2 g | IFB 6K-4 | Not verifiable | 300 x 240 mm | 5 kg | 300 mm | 1.00 |
