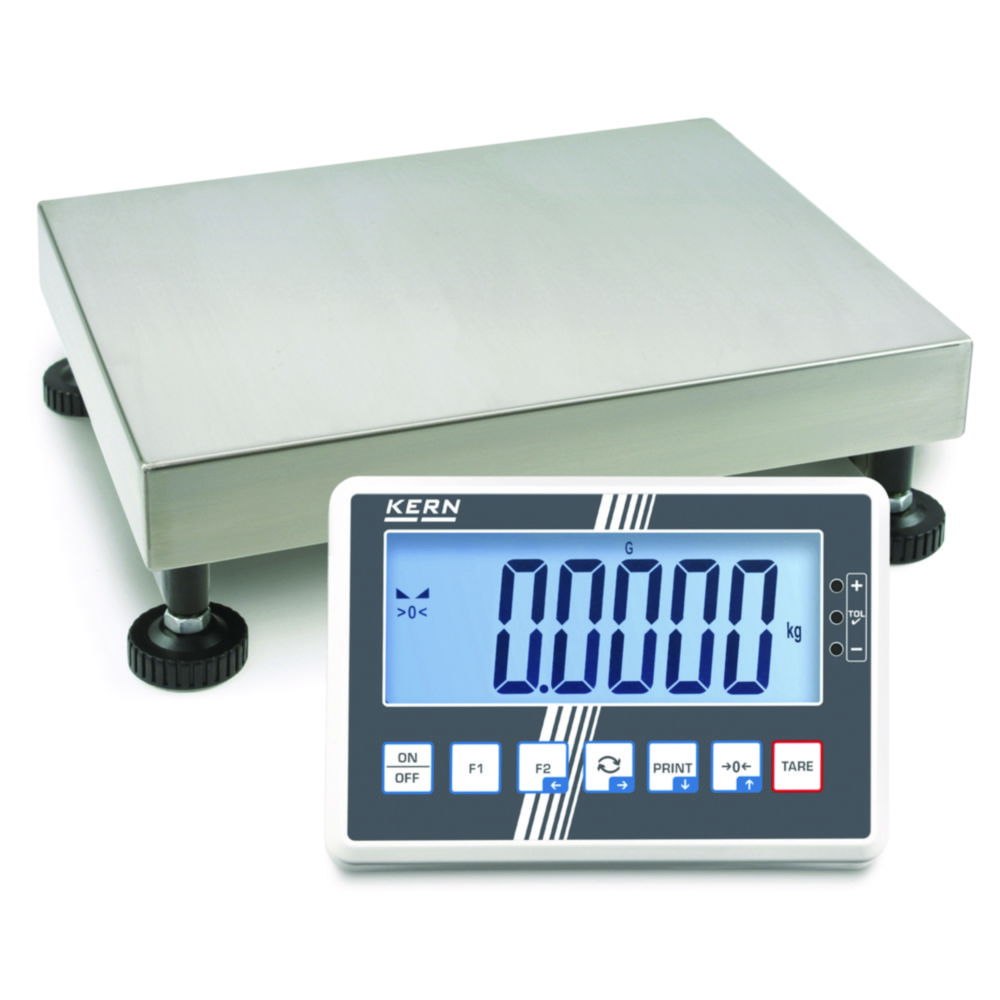

Platform scales IFC, IoT-Line
The KERN Universal Port (KUP) permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
- Large backlit LCD display, digit height 48 mm
- Real Time Clock
- Simplified battery replacement through easily-accessible housing
- Weighing plate of stainless steel, painted steel base, silicone-coated aluminium load cell
- Dimensions of display device (W×D×H) 220 × 145 × 65 mm
Scope of supply: Platform scale, protective working cover, benchtop stand incl. wall mount for display device, universal mains adapter
Toote variatsioonid
Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Battery/rechargeable battery | Waranty | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
External | 400 mm | 400 mm | 500 x 400 x 127 mm | 127 mm | ±1,5 g | 150 kg | 240 V | 100 V | 4.711 808 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 5 g | 5 g | IFC 150K-3 | 500 x 400 mm | 11 kg | 500 mm | 500 mm | 1.00 | - | 3 years | ||
External | 230 mm | 230 mm | 230 x 230 x 106 mm | 106 mm | ±0,3 g | 3 kg | 240 V | 100 V | 4.711 814 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | IFC 3K-4 | 230 x 230 mm | 4.6 kg | 230 mm | 230 mm | 1.00 | - | 2 years | ||
External | 240 mm | 240 mm | 300 x 240 x 109 mm | 109 mm | ±0,6 g | 6 kg | 240 V | 100 V | 4.711 817 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,2 g | 0,2 g | IFC 6K-4 | 300 x 240 mm | 5 kg | 300 mm | 300 mm | 1.00 | - | 2 years | ||
External | 500 mm | 500 mm | 650 x 500 x 139 mm | 139 mm | ±40 g | 300 kg | 240 V | 100 V | 4.711 812 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 1,0 g | 1,0 g | IFC 300K-2 | 650 x 500 mm | 20 kg | 650 mm | 650 mm | 1.00 | - | 3 years | ||
External | 400 mm | 400 mm | 500 x 400 x 127 mm | 127 mm | ±6 g | 60 kg | 240 V | 100 V | 4.709 020 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 2 g | 2 g | IFC 60K-3L | 500 x 400 mm | 10 kg | 500 mm | 500 mm | 1.00 | 3 V | 3 years | ||
External | 500 mm | 500 mm | 650 x 500 x 139 mm | 139 mm | ±2,0 g | 150 kg | 240 V | 100 V | 4.711 809 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 5 g | 5 g | IFC 150K-3L | 650 x 500 mm | 18 kg | 650 mm | 650 mm | 1.00 | - | 3 years | ||
External | 230 mm | 230 mm | 230 x 230 x 106 mm | 106 mm | ±0,6 g | 6 kg | 240 V | 100 V | 4.711 818 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,2 g | 0,2 g | IFC 6K-4S | 230 x 230 mm | 4.6 kg | 230 mm | 230 mm | 1.00 | - | 2 years | ||
External | 240 mm | 240 mm | 300 x 240 x 109 mm | 109 mm | ±1,5 g | 15 kg | 240 V | 100 V | 4.711 807 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,5 g | 0,5 g | IFC 10K-4 | 300 x 240 mm | 5 kg | 300 mm | 300 mm | 1.00 | - | 2 years |
