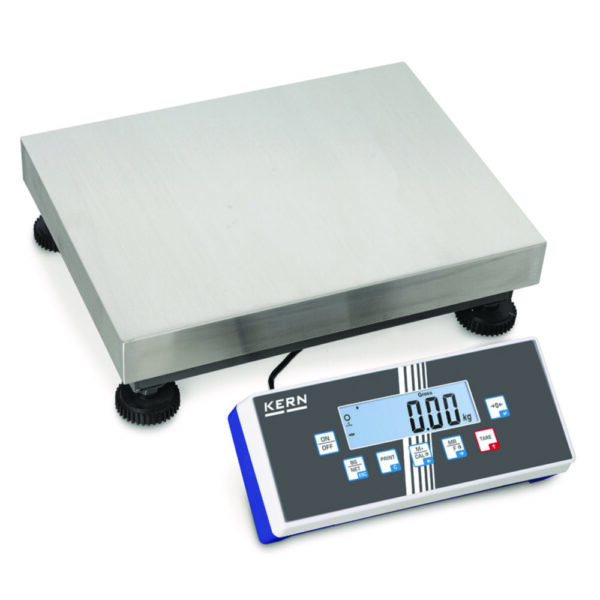

Platform scales IOC
The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers (only possible through data interface RS-232).
- Large LCD display
- Weighing plate stainless steel, painted steel base
- Silicone-coated aluminium load cell with protection against dust and water splashes IP65
- Level indicator and levelling feet for precise levelling
- Dimensions of display device (W×D×H): 268×115×80 mm
- Data interface RS-232
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | IP code | Linearity | Material housing | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | IP 65 | ±0.003/0.006 kg | Plastic | 30/60 kg | 240 V·AC | 100 V | 6.327 206 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.001/0.002 kg | 0.001/0.002 kg | IOC 60K-3L | Not verifiable | 3 years | 500 x 400 mm | 12 kg | 500 mm | 500 mm | 1.00 | ||
| External | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | IP 65 | ±0.01/0.02 kg | Plastic | 30/60 kg | 240 V·AC | 100 V | 4.662 822 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.01/0.02 kg | 0.01/0.02 kg | IOC 60K-2LM | Verifiable | 2 years | 500 x 400 mm | 12 kg | 500 mm | 500 mm | 1.00 | ||
| External | 300 mm | 300 mm | 300 x 300 x 110 mm | 110 mm | IP 65 | ±0.001/0.002 kg | Plastic | 3/6 kg | 240 V·AC | 100 V | 6.316 779 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.001/0.002 kg | 0.001/0.002 kg | IOC 6K-3M | Verifiable | 2 years | 300 x 300 mm | 6 kg | 300 mm | 300 mm | 1.00 | ||
| External | 300 mm | 300 mm | 400 x 300 x 110 mm | 110 mm | IP 65 | ±0.003/0.006 kg | Plastic | 30/60 kg | 240 V·AC | 100 V | 6.491 898 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.001/0.002 kg | 0.001/0.002 kg | IOC 60K-3 | Not verifiable | 2 years | 400 x 300 mm | 8 kg | 400 mm | 400 mm | 1.00 | ||
| External | 300 mm | 300 mm | 400 x 300 x 110 mm | 110 mm | IP 65 | ±0.005/0.01 kg | Plastic | 15/30 kg | 240 V·AC | 100 V | 6.313 714 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.005/0.01 kg | 0.005/0.01 kg | IOC 30K-3M | Verifiable | 2 years | 400 x 300 mm | 8 kg | 400 mm | 400 mm | 1.00 | ||
| External | 300 mm | 300 mm | 400 x 300 x 110 mm | 110 mm | IP 65 | ±0.0015/0.003 kg | Plastic | 15/30 kg | 240 V·AC | 100 V | 6.322 996 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.0005/0.001 kg | 0.0005/0.001 kg | IOC 30K-4 | Not verifiable | 2 years | 400 x 300 mm | 8 kg | 400 mm | 400 mm | 1.00 | ||
| External | 300 mm | 300 mm | 400 x 300 x 110 mm | 110 mm | IP 65 | ±0.0006/0.0015 kg | Plastic | 6/15 kg | 240 V·AC | 100 V | 6.322 995 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.0002/0.0005 kg | 0.0002/0.0005 kg | IOC 10K-4L | Not verifiable | 2 years | 400 x 300 mm | 8 kg | 400 mm | 400 mm | 1.00 | ||
| External | 240 mm | 240 mm | 300 x 240 x 110 mm | 110 mm | IP 65 | ±0.002/0.005 kg | Plastic | 6/15 kg | 240 V·AC | 100 V | 6.317 346 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.002/0.005 kg | 0.002/0.005 kg | IOC 10K-3M | Verifiable | 2 years | 300 x 240 mm | 6 kg | 300 mm | 300 mm | 1.00 | ||
| External | 500 mm | 500 mm | 650 x 500 x 150 mm | 150 mm | IP 65 | ±0.05/0.1 kg | Plastic | 150/300 kg | 240 V·AC | 100 V | 4.664 260 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.05/0.1 kg | 0.05/0.1 kg | IOC 300K-2M | Verifiable | 3 years | 650 x 500 mm | 22 kg | 650 mm | 650 mm | 1.00 | ||
| External | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | IP 65 | ±0.02/0.05 kg | Plastic | 60/150 kg | 240 V·AC | 100 V | 4.670 699 | EU/UK/US | 100 ... 240 V·AC, 50 ... 60 Hz | 0.02/0.05 kg | 0.02/0.05 kg | IOC 100K-2M | Verifiable | 2 years | 500 x 400 mm | 12 kg | 500 mm | 500 mm | 1.00 |
