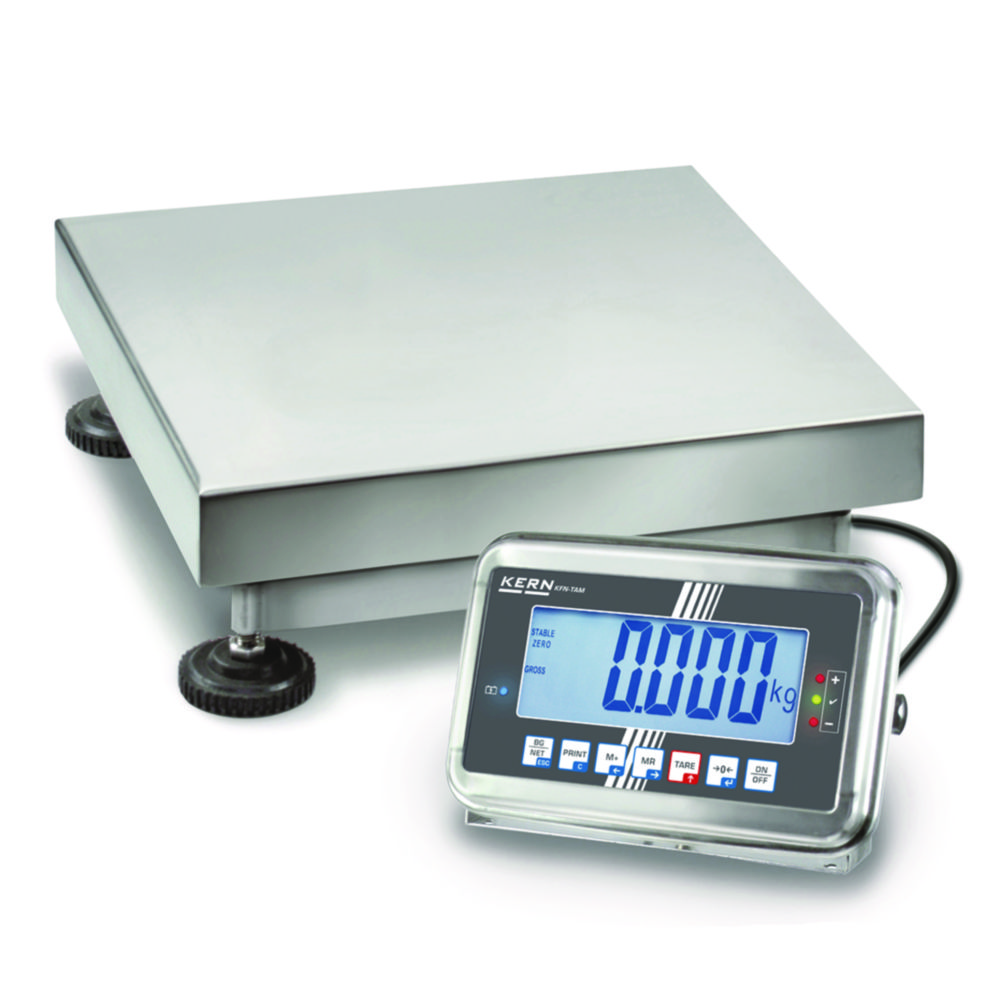

Platform scales SFB
Platform scale for use in industry.
- Large backlit LCD display
- Silicone-coated stainless steel load cell, dust and splash water protection IP67
- Display device: stainless steel, dust and splash water protection IP65, (battery operation only)
- Dimensions of display device (W×D×H): 266×165×96 mm
Toote variatsioonid
| Adjusting program | Battery/rechargeable battery | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Material housing | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 6 V, Pb | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | ±0.05 kg | Stainless steel | 150 kg | 230 V·AC | 110 V | 7.940 109 | EU/UK/US | 110 ... 230 V·AC | 0.05 kg | 0.05 kg | SFB 100K-2LM | Verifiable | 3 years | 500 x 400 mm | 14 kg | 500 mm | 500 mm | 1.00 | ||
| External | 6 V, Pb | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | ±0.01 kg | Stainless steel | 50 kg | 230 V·AC | 110 V | 7.940 533 | EU/UK/US | 110 ... 230 V·AC | 0.005 kg | 0.005 kg | SFB 50K-3XL | Not verifiable | 3 years | 500 x 400 mm | 13 kg | 500 mm | 500 mm | 1.00 | ||
| External | 6 V, Pb | 500 mm | 500 mm | 650 x 500 x 139 mm | 139 mm | ±0.02 kg | Stainless steel | 100 kg | 230 V·AC | 110 V | 4.660 445 | EU/UK/US | 110 ... 230 V·AC | 0.01 kg | 0.01 kg | SFB 100K-2XL | Not verifiable | 3 years | 650 x 500 mm | 24 kg | 650 mm | 650 mm | 1.00 | ||
| External | 6 V, Pb | 400 mm | 400 mm | 500 x 400 x 120 mm | 120 mm | ±0.02 kg | Stainless steel | 60 kg | 230 V·AC | 110 V | 4.660 452 | EU/UK/US | 110 ... 230 V·AC | 0.02 kg | 0.02 kg | SFB 60K-2XLM | Verifiable | 3 years | 500 x 400 mm | 14 kg | 500 mm | 500 mm | 1.00 |
