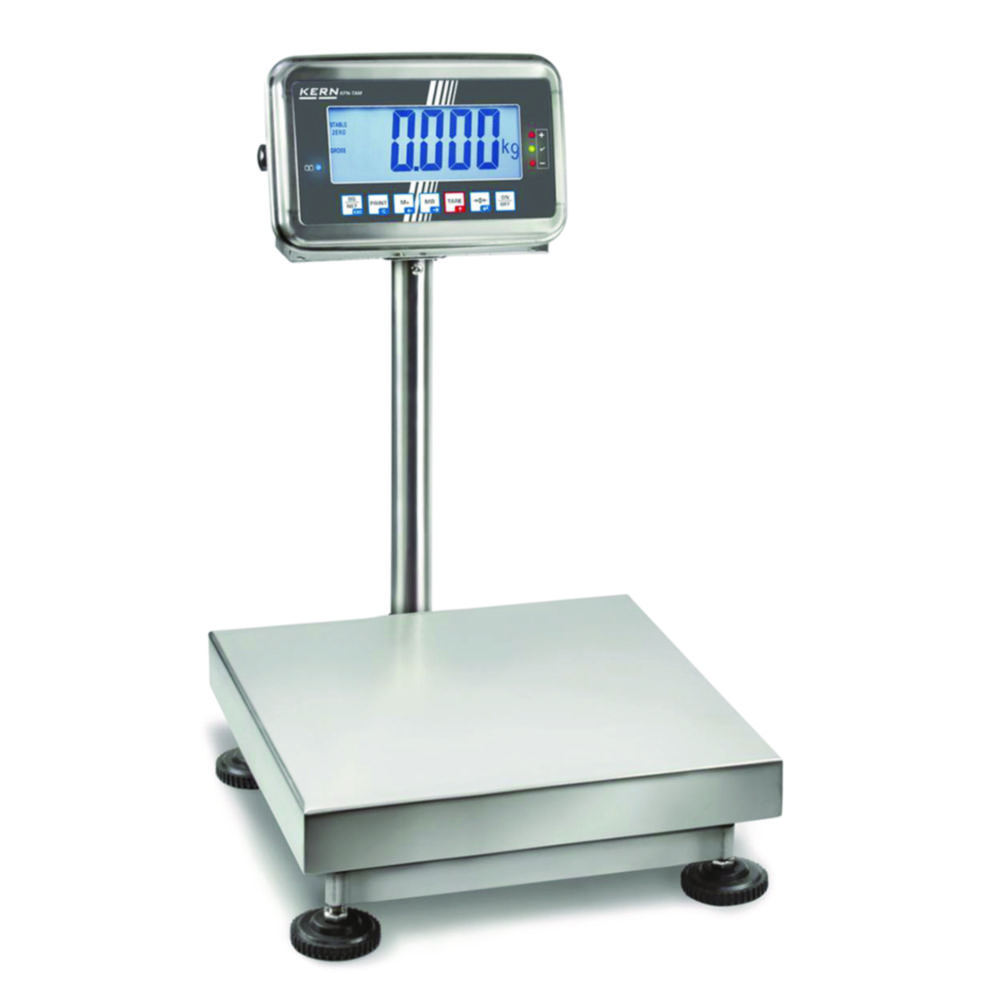

Platform scales SFB, with elevated display
Platform scale for use in industry.
- Large backlit LCD display
- Silicone-coated stainless steel load cell, dust and splash water protection IP67
- Display device: stainless steel, dust and splash water protection IP65, (battery operation only)
- Dimensions of display device (W×D×H): 266×165×96 mm
Toote variatsioonid
| Adjusting program | Battery/rechargeable battery | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Material housing | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Waranty | Weighing plate (WxD) | Weight | Width | Width weighing plate | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 6 V, Pb | 240 mm | 240 mm | 300 x 240 x 107 mm | 107 mm | ±0.005 kg | Stainless steel | 50 kg | 230 V·AC | 110 V | 4.660 450 | EU/UK/US | 110 ... 230 V·AC | 0.005 kg | 0.005 kg | SFB 50K5HIP | Not verifiable | 3 years | 300 x 240 mm | 8 kg | 300 mm | 300 mm | 1.00 | ||
| External | 6 V, Pb | 240 mm | 240 mm | 300 x 240 x 107 mm | 107 mm | ±0.01 kg | Stainless steel | 30 kg | 230 V·AC | 110 V | 4.660 449 | EU/UK/US | 110 ... 230 V·AC | 0.01 kg | 0.01 kg | SFB 30K10HIPM | Verifiable | 3 years | 300 x 240 mm | 8 kg | 300 mm | 300 mm | 1.00 | ||
| External | 6 V, Pb | 300 mm | 300 mm | 400 x 300 x 111 mm | 111 mm | ±0.05 kg | Stainless steel | 150 kg | 230 V·AC | 110 V | 4.660 443 | EU/UK/US | 110 ... 230 V·AC | 0.05 kg | 0.05 kg | SFB 100K-2HM | Verifiable | 3 years | 400 x 300 mm | 10 kg | 400 mm | 400 mm | 1.00 | ||
| External | 6 V, Pb | 240 mm | 240 mm | 300 x 240 x 107 mm | 107 mm | ±0.001 kg | Stainless steel | 10 kg | 230 V·AC | 110 V | 6.252 493 | EU/UK/US | 110 ... 230 V·AC | 0.001 kg | 0.001 kg | SFB 10K1HIP | Not verifiable | 3 years | 300 x 240 mm | 8 kg | 300 mm | 300 mm | 1.00 | ||
| External | 6 V, Pb | 300 mm | 300 mm | 400 x 300 x 111 mm | 111 mm | ±0.005 kg | Stainless steel | 50 kg | 230 V·AC | 110 V | 6.288 643 | EU/UK/US | 110 ... 230 V·AC | 0.005 kg | 0.005 kg | SFB 50K5LHIP | Not verifiable | 3 years | 400 x 300 mm | 10 kg | 400 mm | 400 mm | 1.00 | ||
| External | 6 V, Pb | 240 mm | 240 mm | 300 x 240 x 107 mm | 107 mm | ±0.002 kg | Stainless steel | 20 kg | 230 V·AC | 110 V | 6.264 127 | EU/UK/US | 110 ... 230 V·AC | 0.002 kg | 0.002 kg | SFB 20K2HIP | Not verifiable | 3 years | 300 x 240 mm | 8 kg | 300 mm | 300 mm | 1.00 | ||
| External | 6 V, Pb | 300 mm | 300 mm | 400 x 300 x 111 mm | 111 mm | ±0.02 kg | Stainless steel | 60 kg | 230 V·AC | 110 V | 6.283 532 | EU/UK/US | 110 ... 230 V·AC | 0.02 kg | 0.02 kg | SFB 60K20LHIPM | Verifiable | 3 years | 400 x 300 mm | 10 kg | 400 mm | 400 mm | 1.00 | ||
| External | 6 V, Pb | 300 mm | 300 mm | 400 x 300 x 111 mm | 111 mm | ±0.02 kg | Stainless steel | 100 kg | 230 V·AC | 110 V | 7.657 549 | EU/UK/US | 110 ... 230 V·AC | 0.01 kg | 0.01 kg | SFB 100K10HIP | Not verifiable | 3 years | 400 x 300 mm | 10 kg | 400 mm | 400 mm | 1.00 |
