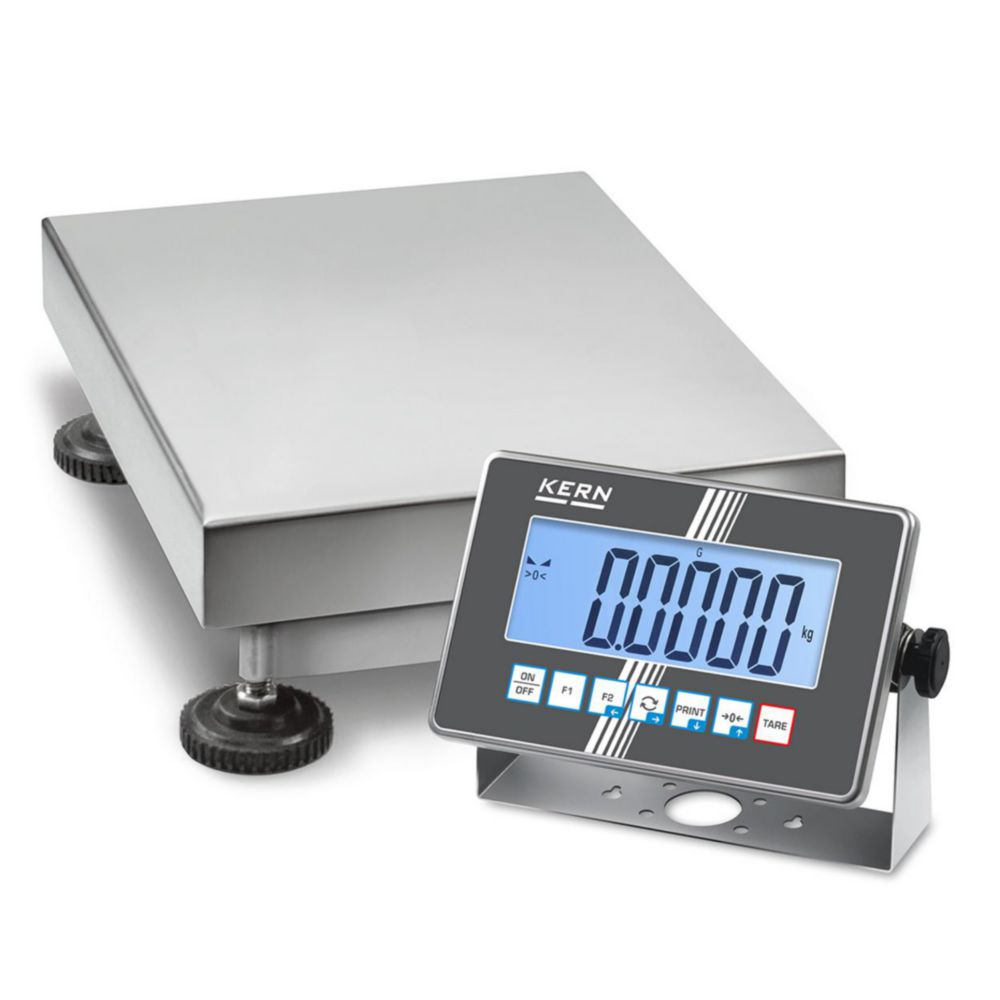

Platform scales SXC, IoT-Line

Stainless steel platform scale, with up to four data interfaces and optional alibi memory, for the increased hygienic requirements in the food industries. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.

Large backlit LCD display

Platform made entirely of stainless steel, hermetically welded stainless steel load cell with protection against dust and water splashes IP68

Display device: stainless steel, dust and splash water protection IP68

Dimensions of display device (W×D×H): 232×150×80 mm

Toote variatsioonid

Adjusting program	Depth	Depth weighing plate	Dimensions (WxDxH)	Height	IP code	Linearity	Material housing	Max. load	Max. voltage	Min. voltage	Catalog number	Plug type	Power supply	Readability	Reproducibility	Type	Verified calibration	Waranty	Weighing plate (WxD)	Weight	Width	Width weighing plate	PK
External	400 mm	400 mm	500 x 400 x 126 mm	126 mm	IP 68	±0,015 kg	Stainless steel	60 kg	240 V	110 V	6.522 912	EU	110 ... 240 V	0.005 kg	0.005 kg	SXC 60K-3L	Not verifiable	3 years	500 x 400 mm	22 kg	500 mm	500 mm	1.00
External	500 mm	500 mm	650 x 500 x 139 mm	139 mm	IP 68	±0,03 kg	Stainless steel	150 kg	240 V	110 V	4.711 877	EU	110 ... 240 V	0.01 kg	0.01 kg	SXC 100K-2L	Not verifiable	3 years	650 x 500 mm	20 kg	650 mm	650 mm	1.00
External	300 mm	300 mm	400 x 300 x 111 mm	111 mm	IP 68	±0,006 kg	Stainless steel	30 kg	240 V	110 V	4.711 884	EU	110 ... 240 V	0.002 kg	0.002 kg	SXC 30K-3	Not verifiable	3 years	400 x 300 mm	12 kg	400 mm	400 mm	1.00
External	400 mm	400 mm	500 x 400 x 126 mm	126 mm	IP 68	±0,02/0,05 kg	Stainless steel	60/150 kg	240 V	110 V	4.711 879	EU	110 ... 240 V	0.02/0.05 kg	0.02/0.05 kg	SXC 100K-2M	Verifiable	3 years	500 x 400 mm	12 kg	500 mm	500 mm	1.00
External	300 mm	300 mm	400 x 300 x 111 mm	111 mm	IP 68	±0,003 kg	Stainless steel	15 kg	240 V	110 V	4.711 881	EU	110 ... 240 V	0.001 kg	0.001 kg	SXC 10K-3L	Not verifiable	3 years	400 x 300 mm	12 kg	400 mm	400 mm	1.00
External	400 mm	400 mm	500 x 400 x 126 mm	126 mm	IP 68	±0,03 kg	Stainless steel	150 kg	240 V	110 V	4.711 876	EU	110 ... 240 V	0.01 kg	0.01 kg	SXC 100K-2	Not verifiable	3 years	500 x 400 mm	12 kg	500 mm	500 mm	1.00
External	300 mm	300 mm	400 x 300 x 111 mm	111 mm	IP 68	±0,002/0,005 kg	Stainless steel	6/15 kg	240 V	110 V	4.711 882	EU	110 ... 240 V	0.002/0.005 kg	0.002/0.005 kg	SXC 10K-3LM	Verifiable	3 years	400 x 300 mm	8 kg	400 mm	400 mm	1.00
External	240 mm	240 mm	300 x 240 x 107 mm	107 mm	IP 68	±0,003 kg	Stainless steel	15 kg	240 V	110 V	4.711 880	EU	110 ... 240 V	0.001 kg	0.001 kg	SXC 10K-3	Not verifiable	3 years	300 x 240 mm	7 kg	300 mm	300 mm	1.00
External	500 mm	500 mm	650 x 500 x 139 mm	139 mm	IP 68	±0,02/0,05 kg	Stainless steel	60/150 kg	240 V	110 V	4.711 878	EU	110 ... 240 V	0.02/0.05 kg	0.02/0.05 kg	SXC 100K-2LM	Verifiable	3 years	650 x 500 mm	20 kg	650 mm	650 mm	1.00
External	300 mm	300 mm	400 x 300 x 123 mm	123 mm	IP 68	±0,01/0,02 kg	Stainless steel	30/60 kg	240 V	110 V	4.711 889	EU	110 ... 240 V	0.01/0.02 kg	0.01/0.02 kg	SXC 60K-2M	Verifiable	3 years	400 x 300 mm	11 kg	400 mm	400 mm	1.00
External	400 mm	400 mm	500 x 400 x 120 mm	120 mm	IP 68	±0,006 kg	Stainless steel	30 kg	240 V	110 V	4.711 885	EU	110 ... 240 V	0.002 kg	0.002 kg	SXC 30K-3L	Not verifiable	3 years	500 x 400 mm	22 kg	500 mm	500 mm	1.00
External	300 mm	300 mm	400 x 300 x 111 mm	111 mm	IP 68	±0,005/0,01 kg	Stainless steel	15/30 kg	240 V	110 V	4.711 887	EU	110 ... 240 V	0.005/0.01 kg	0.005/0.01 kg	SXC 30K-3M	Verifiable	3 years	400 x 300 mm	11 kg	400 mm	400 mm	1.00
External	300 mm	300 mm	400 x 300 x 123 mm	123 mm	IP 68	±0,015 kg	Stainless steel	60 kg	240 V	110 V	4.711 890	EU	110 ... 240 V	0.005 kg	0.005 kg	SXC 60K-3	Not verifiable	3 years	400 x 300 mm	12 kg	400 mm	400 mm	1.00
External	400 mm	400 mm	500 x 400 x 126 mm	126 mm	IP 68	±0,01/0,02 kg	Stainless steel	30/60 kg	240 V	110 V	4.711 888	EU	110 ... 240 V	0.01/0.02 kg	0.01/0.02 kg	SXC 60K-2LM	Verifiable	3 years	500 x 400 mm	12 kg	500 mm	500 mm	1.00
External	400 mm	400 mm	500 x 400 x 120 mm	120 mm	IP 68	±0,005/0,01 kg	Stainless steel	15/30 kg	240 V	110 V	4.711 886	EU	110 ... 240 V	0.005/0.01 kg	0.005/0.01 kg	SXC 30K-3LM	Verifiable	3 years	500 x 400 mm	12 kg	500 mm	500 mm	1.00
External	240 mm	240 mm	300 x 240 x 107 mm	107 mm	IP 68	±0,0,015 kg	Stainless steel	6 kg	240 V	110 V	4.711 892	EU	110 ... 240 V	0.0005 kg	0.0005 kg	SXC 6K-4	Not verifiable	3 years	300 x 240 mm	6 kg	300 mm	300 mm	1.00
External	240 mm	240 mm	300 x 240 x 107 mm	107 mm	IP 68	±0,002/0,005 kg	Stainless steel	6/15 kg	240 V	110 V	4.711 883	EU	110 ... 240 V	0.002/0.005 kg	0.002/0.005 kg	SXC 10K-3M	Verifiable	3 years	300 x 240 mm	7 kg	300 mm	300 mm	1.00
External	240 mm	240 mm	300 x 240 x 107 mm	107 mm	IP 68	±0,001/0,002 kg	Stainless steel	3/6 kg	240 V	110 V	4.711 891	EU	110 ... 240 V	0.001/0.002 kg	0.001/0.002 kg	SXC 6K-3M	Verifiable	3 years	300 x 240 mm	7 kg	300 mm	300 mm	1.00
