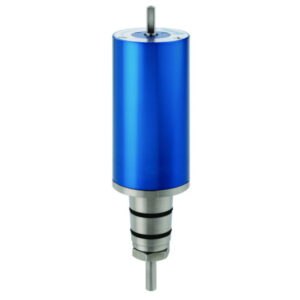

PLR compressed air laboratory stirrers up to 30 l for use in potentially explosive atmospheres, with tachometer
PLR compressed air laboratory stirrers are designed for all kinds of standard mixing tasks. The vane type, air-driven motor offers a high power density and is significantly lighter and smaller than an equivalent electric motor.
General specifications:
- operating pressure max. 6 bar
- air consumption 260 l/min. at 6 bar
- power output 200 W at 6 bar
- clockwise rotation
- ATEX certification
Basic models include:
- all-stainless steel housing
- continuously adjustable speed control valve
- support arm diam. 14 mm
- snap connection for NW 5
- output shaft L x diam. 26 x 10 mm
The viscosity data are intended as a guideline.
Toote variatsioonid
| ATEX certification | Display | Idle speed | Max. operating pressure | Max. Viscosity | Nominal torque | Operating press bar | Catalog number | Rated capacity | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ex II 2G Ex h IIC T5 Gb | Analogue | 1800 1/min | 6 bar | 50000 mPa·s | 3.5 Ncm | 6 bar | 9.778 961 | 200 W | PLR 11T | 1.00 | ||
| Ex II 2G Ex h IIC T5 Gb | Analogue | 950 1/min | 6 bar | 70000 mPa·s | 5.3 Ncm | 6 bar | 9.778 962 | 200 W | PLR 12T | 1.00 | ||
| Ex II 2G Ex h IIC T5 Gb | Analogue | 550 1/min | 6 bar | 100000 mPa·s | 10.4 Ncm | 6 bar | 9.778 964 | 200 W | PLR 28T | 1.00 | ||
| Ex II 2G Ex h IIC T4 Gb | Analogue | 15000 1/min | 6 bar | 1000 mPa·s | 0.3 Ncm | 6 bar | 9.778 960 | 200 W | PLR 10T | 1.00 |
