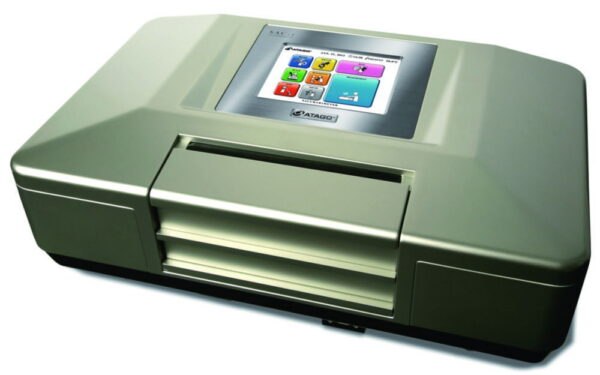

Polarimeter SAC-i 589/882

Measurement Scales: Angle of rotation, specific rotation, International Sugar Scale, concentration, purity.

• Wavelength measurement at 589 nm (equivalent to the sodium-D line spectrum) and 882 nm (near infra red)
• Measurement stability in 13 seconds (4 seconds in the high-speed and consecutive measurement mode)
• Resolution of up to 3 decimal places
• Repeatability of ±0.003° Angle of Rotation and ±0.009°Z
• Up to 999 automatic consecutive measurements followed by average value display
• Sleep and timer feature to take measurement later at specified time
• Improved usability due to touch screen technology
• Connectivity to RX Digital Refractometers for automatic purity measurement

• Specifications
• Measurement range
  Angle of rotation:
  International standard sugar scale: -89.999 to +90.000° or -360 to +360°
  -259 to +259°
• Resolution
  Angle of rotation:
  International standard sugar scale:
  0.001°
  0.001°Z
• Measurement accuracy
  Angle of rotation 589 / 882 nm:
  International standard sugar scale 589 / 882 nm:
  ±0.005° / ±0.010° (-45 to +45°)
  ±0.015°Z / ±0.0700°Z (-130 to +130°Z)
• Measurement temperature range: 5 to 40°C
• Observation tubes: 100mm (5ml), 200mm (10ml)
• Power supply: 100-240V, 50/60Hz a.c.
• Dimensions:
  Weight: 600 x 365 x 210mm
  20kg
