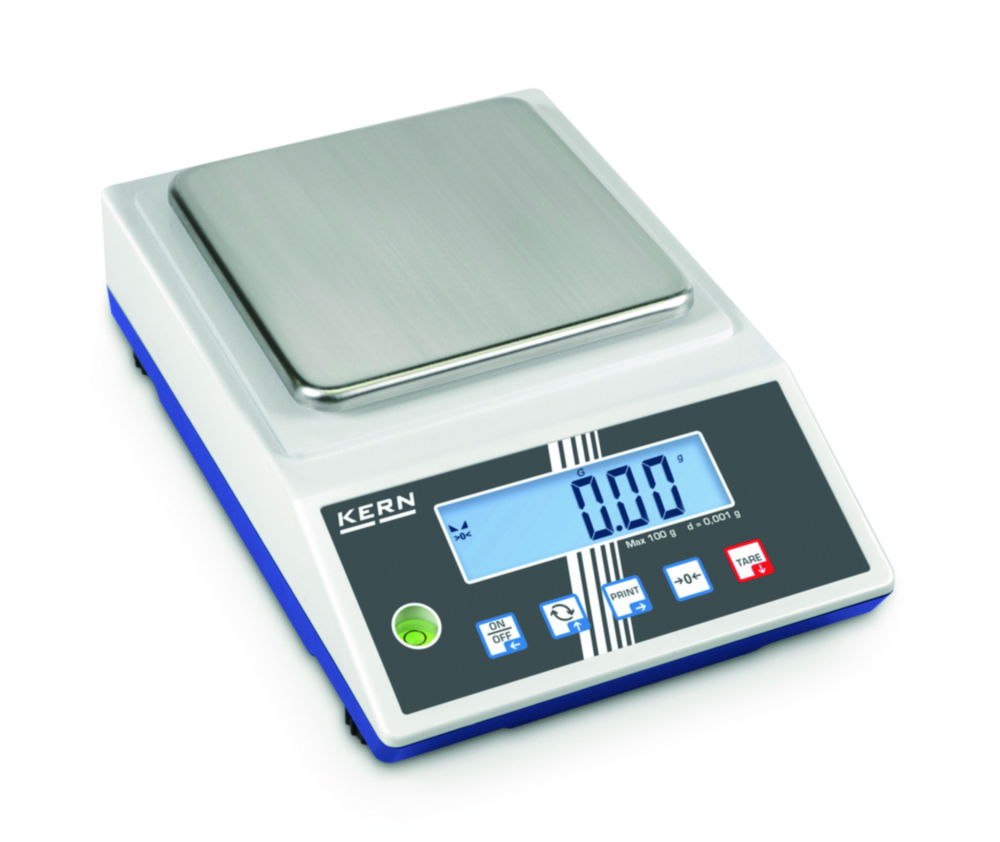

Precision balance PCB IoT-Line
The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is possible without opening the scale housing. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
- Backlit LCD display, digit height 21 mm
- PRE-TARE function
- Recipe function
- Weighing with tolerance range
- Freely programmable weighing unit
- Anti-Shock system
- AUTO-OFF function
- Battery operation possible (not included in scope of supply)
Scope of supply:
Precision balance, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Weighing plate (WxD) | Width | With draft shield | PK | Width weighing plate | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 245 mm | 82 mm | 163 x 245 x 79 mm | 79 mm | ±0,005 g | 360 g | 240 V | 100 V | 6.325 454 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PCB 300-3 | Ø 82 mm | 163 mm | Yes | 1.00 | - | ||
| External | 245 mm | 105 mm | 163 x 245 x 79 mm | 79 mm | ±0,02 g | 300 g | 240 V | 100 V | 6.325 905 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PCB 300-2 | Ø 105 mm | 163 mm | No | 1.00 | - | ||
| External | 245 mm | 170 mm | 163 x 245 x 79 mm | 79 mm | ±0,3 g | 6000 g | 240 V | 100 V | 4.691 684 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PCB 6000-1 | 150 x 170 mm | 163 mm | No | 1.00 | 150 mm | ||
| External | 245 mm | 82 mm | 163 x 245 x 79 mm | 79 mm | ±0,005 g | 200 g | 240 V | 100 V | 6.325 904 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PCB 200-3 | Ø 82 mm | 163 mm | Yes | 1.00 | - | ||
| External | 245 mm | 170 mm | 163 x 245 x 79 mm | 79 mm | ±0,3 g | 10000 g | 240 V | 100 V | 4.691 685 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PCB 10000-1 | 150 x 170 mm | 163 mm | No | 1.00 | 150 mm | ||
| External | 245 mm | 170 mm | 163 x 245 x 79 mm | 79 mm | ±2 g | 6000 g | 240 V | 100 V | 4.691 686 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 1 g | 1 g | PCB 6000-0 | 150 x 170 mm | 163 mm | No | 1.00 | 150 mm | ||
| External | 245 mm | 130 mm | 163 x 245 x 79 mm | 79 mm | ±0,2 g | 2000 g | 240 V | 100 V | 4.691 683 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PCB 2000-1 | 130 x 130 mm | 163 mm | No | 1.00 | 130 mm | ||
| External | 245 mm | 130 mm | 163 x 245 x 79 mm | 79 mm | ±0,05 g | 3600 g | 240 V | 100 V | 6.324 972 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PCB 3000-2 | 130 x 130 mm | 163 mm | No | 1.00 | 130 mm | ||
| External | 245 mm | 130 mm | 163 x 245 x 79 mm | 79 mm | ±0,03 g | 1000 g | 240 V | 100 V | 4.691 682 | EU/CH/UK/US | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PCB 1000-2 | 130 x 130 mm | 163 mm | No | 1.00 | 130 mm |
