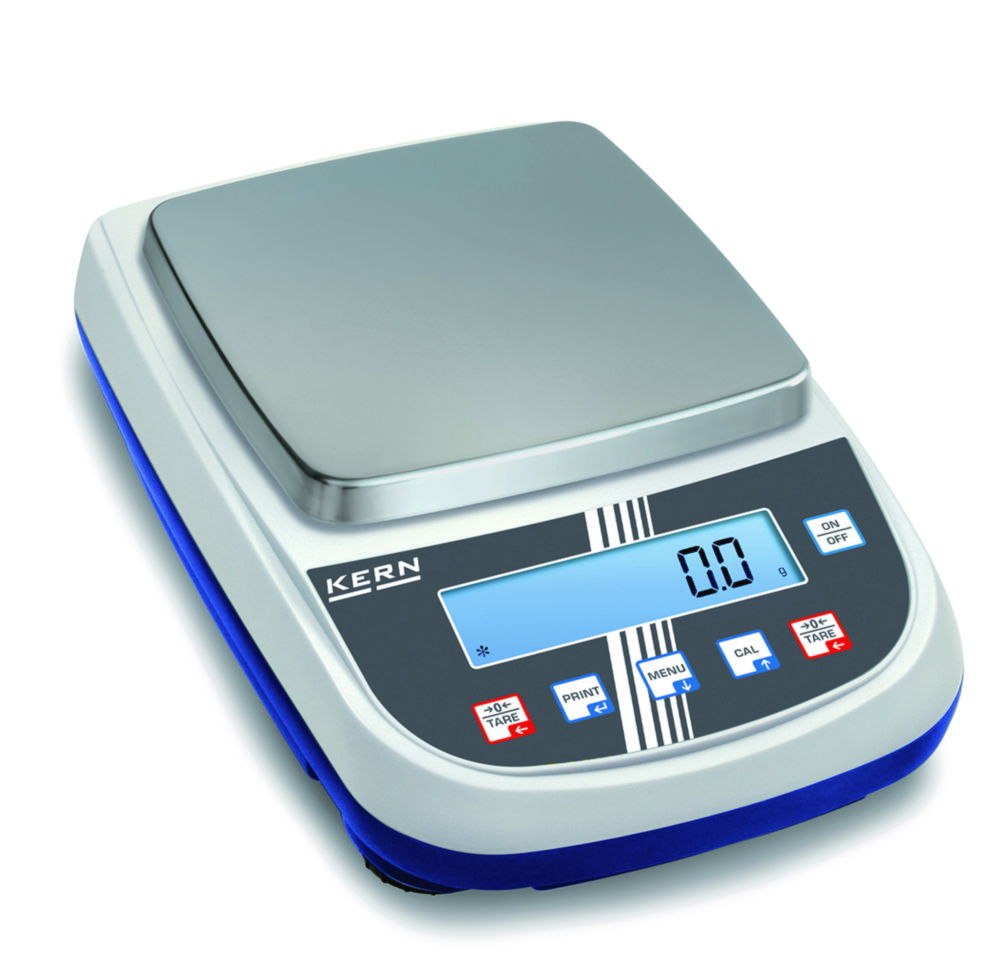

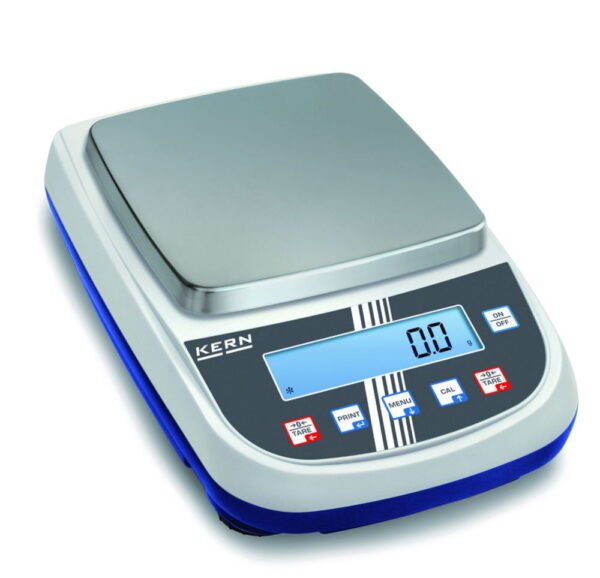

Precision balance Type PLS/PLJ
- ergonomically optimised keypad for left and right-handed users
- ring-shaped glass draught shield standard for all models with a weighing plate size of 110 mm dia. Removable metal cover with pipette opening. Weighing space 150 mm dia., height 60 mm
- The PLJ with a weighing plate size of 110 mm dia. also includes a rectangular draft shield with a weighing chamber of 160 x 140 x 205 mm
- count/weight switchover at the press of a button
- precise counting. The automatic optimisation of reference weight gradually improves the average value of the piece weight. The automatic optimisation of reference weight gradually improves the average value of the piece weight
- weighing with tolerance range Input of an upper/lower limit value. A visual signal assists with portion division, dispensing or grading
- percentage determination makes it possible to store a given weight value (100%) and to determine deviations from this target value in %
- density determination of liquids and solids with immediate display of the density on the display
- pre-Tare function for manual deduction of a known container weight. Useful for checking fill-levels
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Weighing plate (WxD) | Width | With draft shield | PK | Width weighing plate | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Internal | 340 mm | 110 mm | 210 x 340 x 330 mm | 330 mm | ±0,004 g | 2100 g | 240 V | 100 V | 6.270 252 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,002 g | PLJ 2000-3A | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| Internal | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,002 g | 720 g | 240 V | 100 V | 7.656 106 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLJ 720-3A | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| Internal | 340 mm | 160 mm | 210 x 340 x 120 mm | 120 mm | ±0,03 g | 6200 g | 240 V | 100 V | 7.627 832 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PLJ 6200-2A | Not verifiable | Ø 160 mm | 210 mm | No | 1.00 | - | ||
| Internal | 340 mm | 160 mm | 210 x 340 x 120 mm | 120 mm | ±0,04 g | 4200 g | 240 V | 100 V | 7.970 683 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,02 g | PLJ 4200-2F | Not verifiable | Ø 160 mm | 210 mm | No | 1.00 | - | ||
| External | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,004 g | 420 g | 240 V | 100 V | 9.901 442 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLS 420-3F | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| External | 340 mm | 175 mm | 210 x 340 x 120 mm | 120 mm | ±0,4 g | 20000 g | 240 V | 100 V | 9.901 444 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PLS 20000-1F | Not verifiable | 200 x 175 mm | 210 mm | No | 1.00 | 200 mm | ||
| Internal | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,003 g | 420 g | 240 V | 100 V | 6.257 142 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLJ 420-3F | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| External | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,003 g | 1200 g | 240 V | 100 V | 9.901 414 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLS 1200-3A | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| Internal | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,003 g | 1200 g | 240 V | 100 V | 7.655 341 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLJ 1200-3A | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| External | 340 mm | 110 mm | 210 x 340 x 160 mm | 160 mm | ±0,002 g | 720 g | 240 V | 100 V | 9.901 413 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,001 g | 0,001 g | PLS 720-3A | Not verifiable | Ø 110 mm | 210 mm | Yes | 1.00 | - | ||
| External | 340 mm | 160 mm | 210 x 340 x 120 mm | 120 mm | ±0,04 g | 8200 g | 240 V | 100 V | 9.901 443 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PLS 8000-2A | Not verifiable | Ø 160 mm | 210 mm | No | 1.00 | - | ||
| External | 340 mm | 160 mm | 210 x 340 x 120 mm | 120 mm | ±0,04 g | 4200 g | 240 V | 100 V | 9.901 422 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PLS 4200-2F | Not verifiable | Ø 160 mm | 210 mm | No | 1.00 | - | ||
| External | 340 mm | 160 mm | 210 x 340 x 120 mm | 120 mm | ±0,03 g | 6200 g | 240 V | 100 V | 9.901 418 | EU/UK/CH/US/AUS | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PLS 6200-2A | Not verifiable | Ø 160 mm | 210 mm | No | 1.00 | - |
