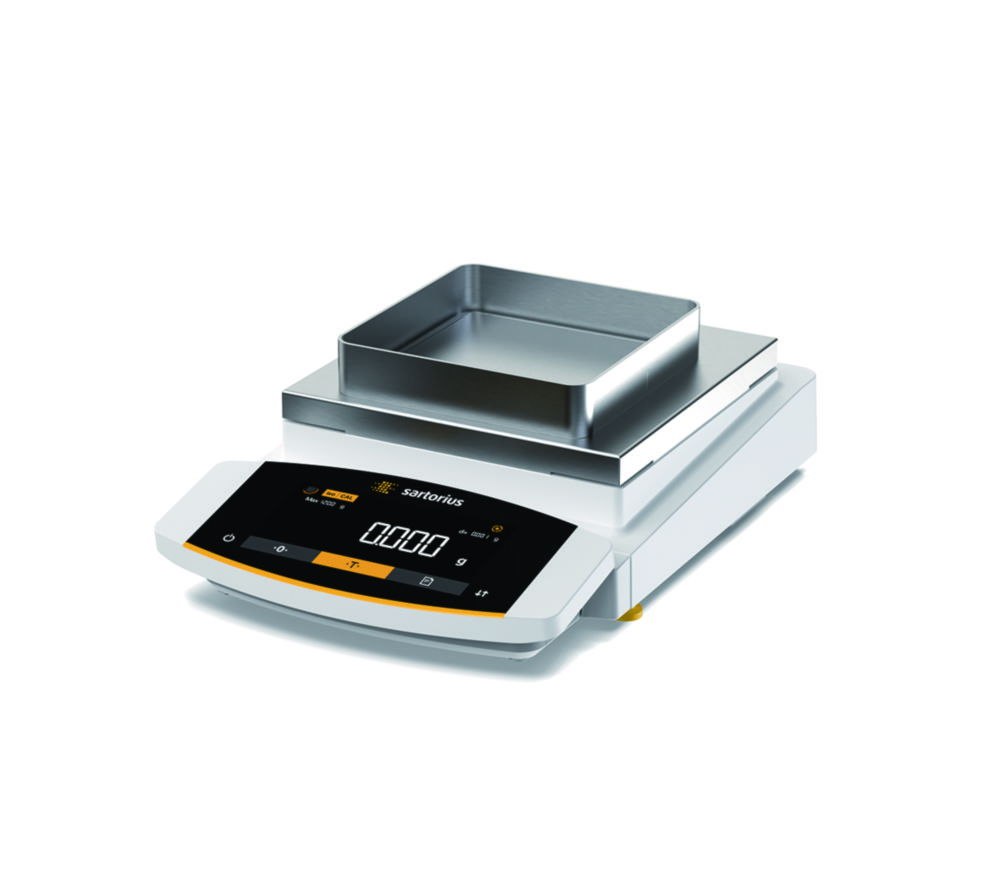

Precision balances Cubis® II, with stainless steel draft shield
- Automatic motorised leveling
Height and weight depending upon weighing pan size, filter weighing pan and draft shield.
Verified balances and other configurations are available online or on request.
Verified balance with EC Type Approval Certificate, for EU except France.
Toote variatsioonid
| Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Max. load | Catalog number | Readability | Type | Weighing plate (WxD) | Weight | Width | Width weighing plate | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 1200 g | 4.670 913 | 0,001 g | 1203S. MCA | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 2200 g | 4.670 948 | 0,001 g | 2203S. MCE | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 620 g | 4.670 959 | 0,001 g | 623S. MCE | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 3200 g | 4.670 928 | 0,001 g | 3203S. MCA | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 5200 g | 4.670 933 | 0,001 g | 5203S. MCA | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 1200 g | 4.670 942 | 0,001 g | 1203S, MCE | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 2200 g | 4.670 923 | 0,001 g | 2203S. MCA | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 620 g | 4.670 939 | 0,001 g | 623S. MCA | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 | ||
| 425 mm | 140 mm | 240 x 425 x 122 mm | 122 mm | 3200 g | 4.670 952 | 0,001 g | 3203S. MCE | 140 x 140 mm | 5.9 kg | 240 mm | 140 mm | Yes | 1.00 |
