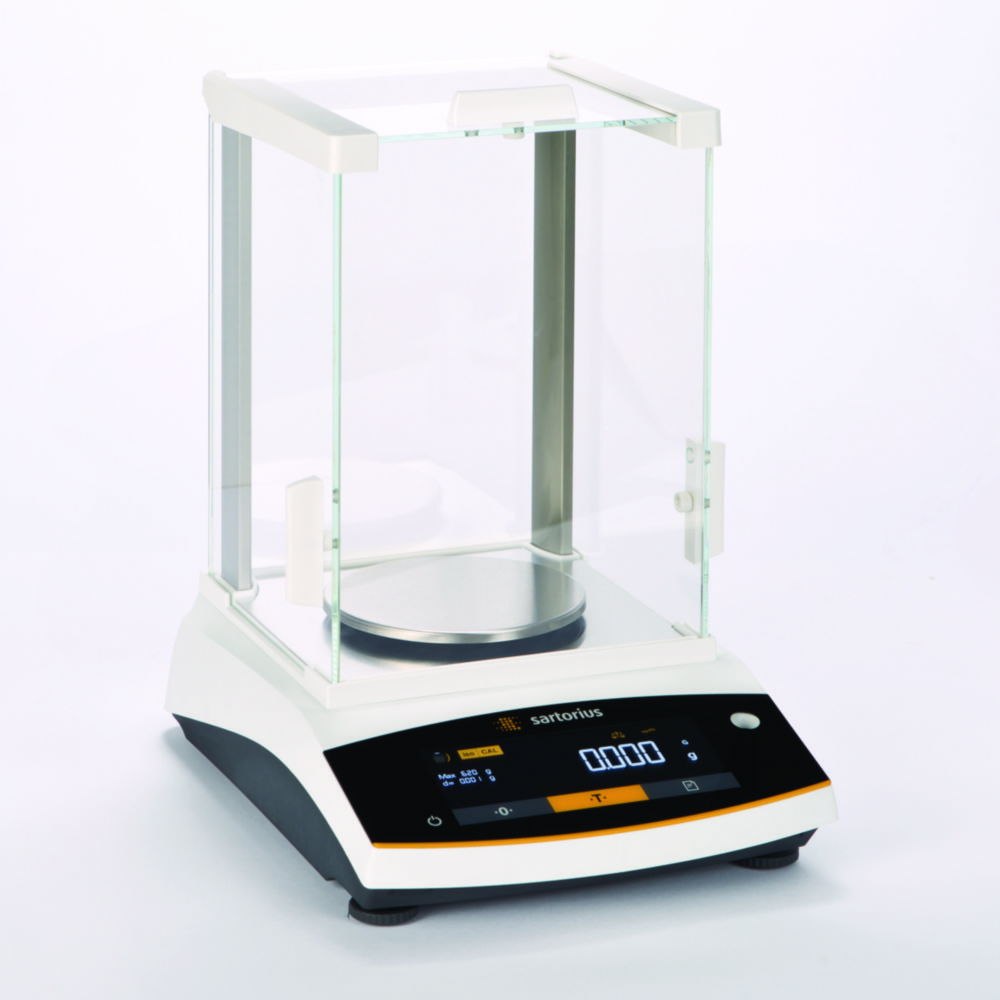

Precision balances Entris® II with square windshield
High weighing space, easy access to weighing platform through side doors and upper sliding door. Specially coated windscreen against electrostatic charge.
All models also available as approved versions for EU/France.
Scope of supply: Precision balance, power supply unit, display protection cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Power supply | Readability | Reproducibility | Type | Weighing plate (WxD) | Weight | Width | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 320 g | 240 V | 100 V | 4.669 133 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE323-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| Internal | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 220 g | 240 V | 100 V | 4.669 124 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE223i-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| Internal | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 620 g | 240 V | 100 V | 4.669 164 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE623i-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| External | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 220 g | 240 V | 100 V | 4.669 121 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE223-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| External | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 420 g | 240 V | 100 V | 4.669 141 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE423-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| External | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 620 g | 240 V | 100 V | 4.669 161 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE623-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| Internal | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 320 g | 240 V | 100 V | 4.669 136 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE323i-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 | ||
| Internal | 317 mm | 120 mm | 219 x 317 x 345 mm | 345 mm | ±0,6 mg | 420 g | 240 V | 100 V | 4.669 144 | 100 ... 240 V, 50/60 Hz | 1 mg | ± 1 mg | BCE423i-1S | Ø 120 mm | 6.3 kg | 219 mm | Yes | 1.00 |
