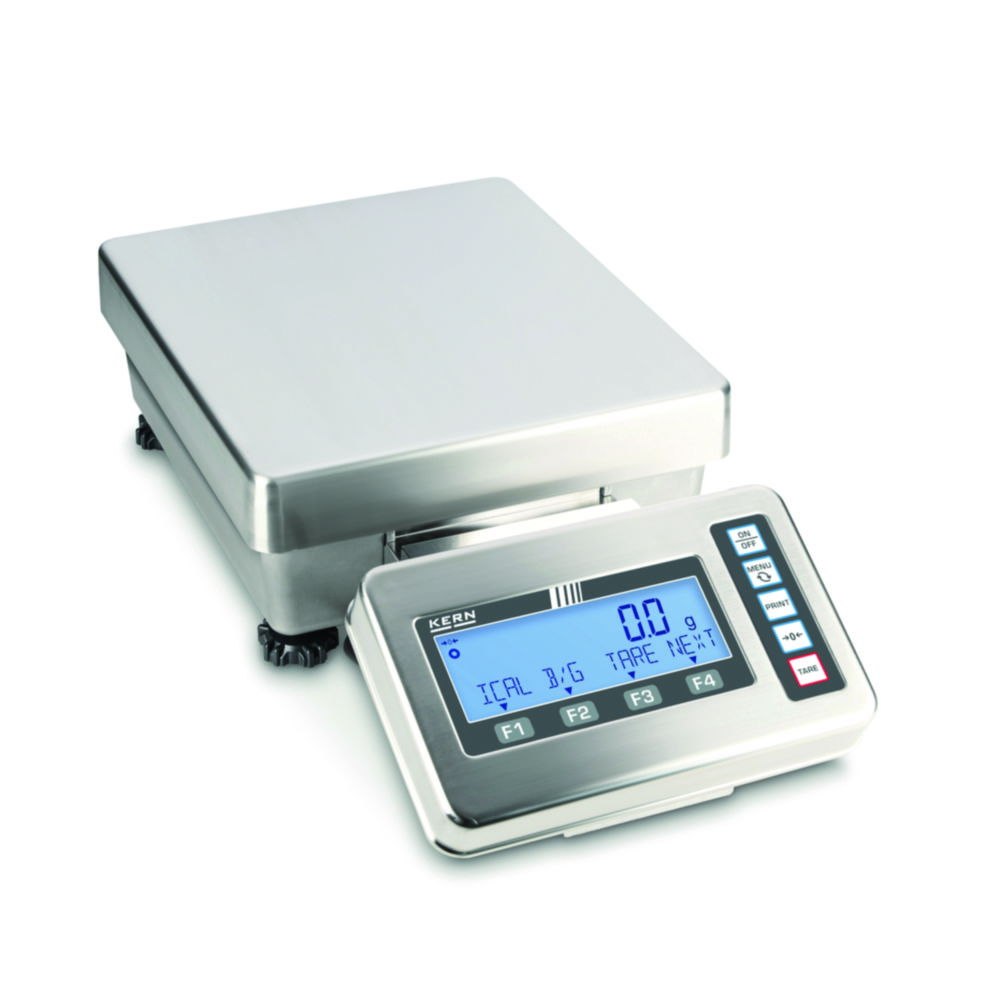

Precision balances FES
The balance is fitted with a user administration system, which enables unique assignment of users and protects against unauthorised access.
- Large backlit LCD display, digit height 16,5 mm
- Stainless steel display device, hygienic and easy to clean
- Metal housing, robust and sturdy
- With password-protected user administration
- Intuitive concept of operation through info line on the display
- Freely-assignable function keys
- IP65 dust and spray protection
- Interfaces digital I/O, RS-232
Scope of supply:
Precision balance, protective working cover
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Height | IP code | Max. load | Catalog number | Plug type | Readability | Reproducibility | Type | Weight | Width | Width weighing plate | PK | Dimensions (WxDxH) | Linearity | Weighing plate (WxD) | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 520 mm | 400 mm | 170 mm | IP 65 | 33 kg | 6.325 178 | EU/UK/CH/US/AUS | 0,1 g | 0,1 g | FES 33K-4 | 18 kg | 350 mm | 350 mm | 1.00 | 350 x 520 x 170 mm | ±0,3 g | 350 x 400 mm | ||
| External | 520 mm | 400 mm | 170 mm | IP 65 | 17 kg | 4.691 961 | EU/UK/CH/US/AUS | 0,1 g | 0,1 g | FES 17K-4 | 18 kg | 350 mm | 350 mm | 1.00 | 350 x 520 x 170 mm | ±0,3 g | 350 x 400 mm | ||
| External | 520 mm | 400 mm | 170 mm | IP 65 | 6,2/62 kg | 6.325 248 | EU/UK/CH/US/AUS | 0,1/1 g | 0,1/1 g | FES 62K4D | 18 kg | 350 mm | 350 mm | 1.00 | 350 x 520 x 170 mm | ±0,3/3 g | 350 x 400 mm |
