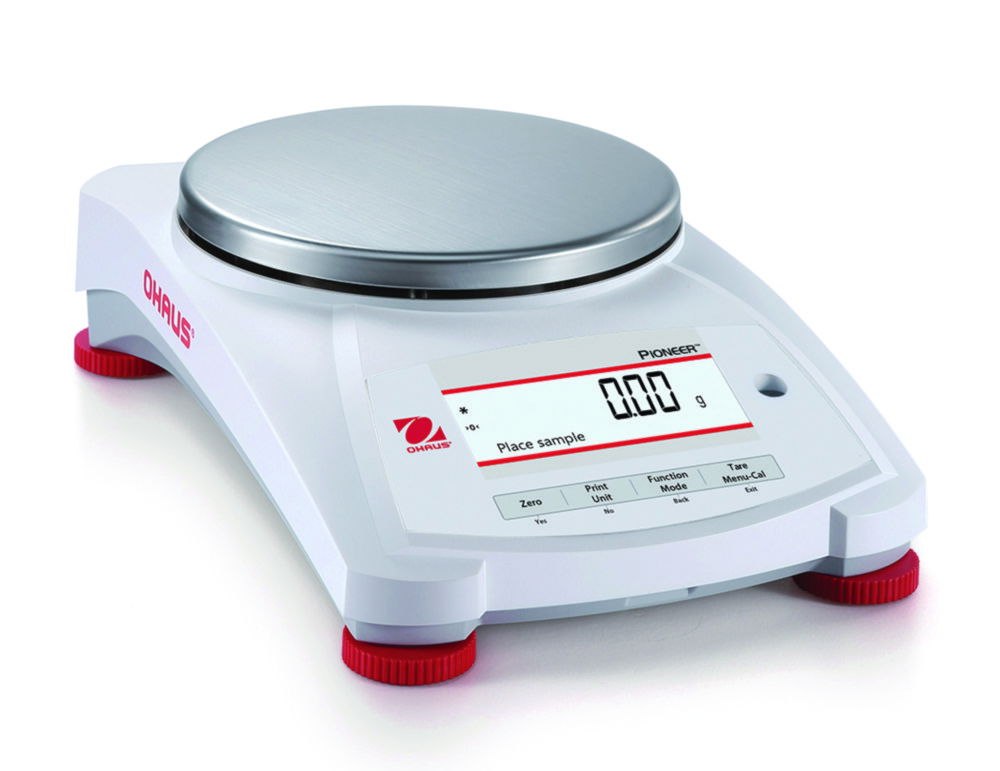

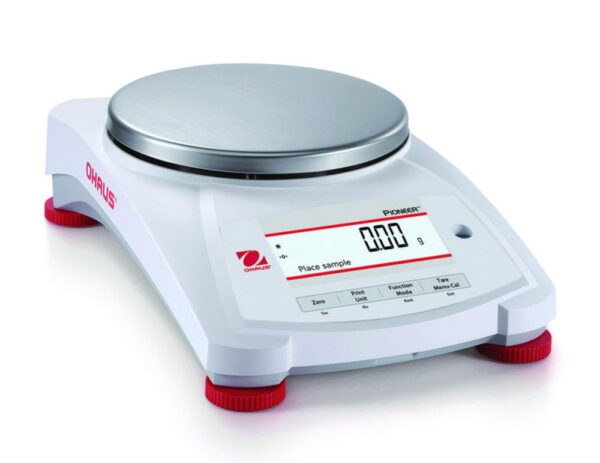

Precision balances Pioneer® PX
High-performance, economical balances with high accuracy and repeatability for applications in laboratories, industry and education. For basic weighing, parts counting, percent weighing, dynamic weighing and density determination.
- 2 line, backlit LCD display
- 4 quick keys enable the most common weighing modes
- USB and RS 232 interface for data exchange with PCs and PLCs
- User-selectable span calibration points
- Real time clock with GLP/GMP data
- Cast metal lower housing, removable stainless steel weighing pan
- Integrated weigh-below-hook
- Auto-tare
- Many weighing units selectable, a custom unit can be defined
- Overload, underload and stability indicator
- 4 menu languages
Please note:
Models with extra code M are approved instruments according to EN 45501; OIML R76.
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Min. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Weighing plate (WxD) | Weight | Width | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 6200 g | 240 V | 100 V | 4.681 175 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX6202/E | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| External | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 3200 g | 240 V | 100 V | 4.663 338 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX3202/E | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 6200 g | 240 V | 100 V | 4.685 014 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX6202M | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,2 g | 4200 g | 240 V | 100 V | 4.663 345 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PX4201 | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 3200 g | 240 V | 100 V | 4.663 339 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX3202 | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,2 g | 4200 g | 240 V | 100 V | 4.663 346 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PX4201M | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 3200 g | 240 V | 100 V | 4.663 340 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX3202M | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| External | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,2 g | 4200 g | 240 V | 100 V | 4.663 344 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,1 g | 0,1 g | PX4201/E | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 | ||
| Internal | 321 mm | 180 mm | 209 x 321 x 98 mm | 98 mm | ±0,02 g | 6200 g | 240 V | 100 V | 4.681 176 | EU/UK | 100 ... 240 V, 50/60 Hz | 0,01 g | 0,01 g | PX6202 | Ø 180 mm | 3.5 kg | 209 mm | No | 1.00 |
