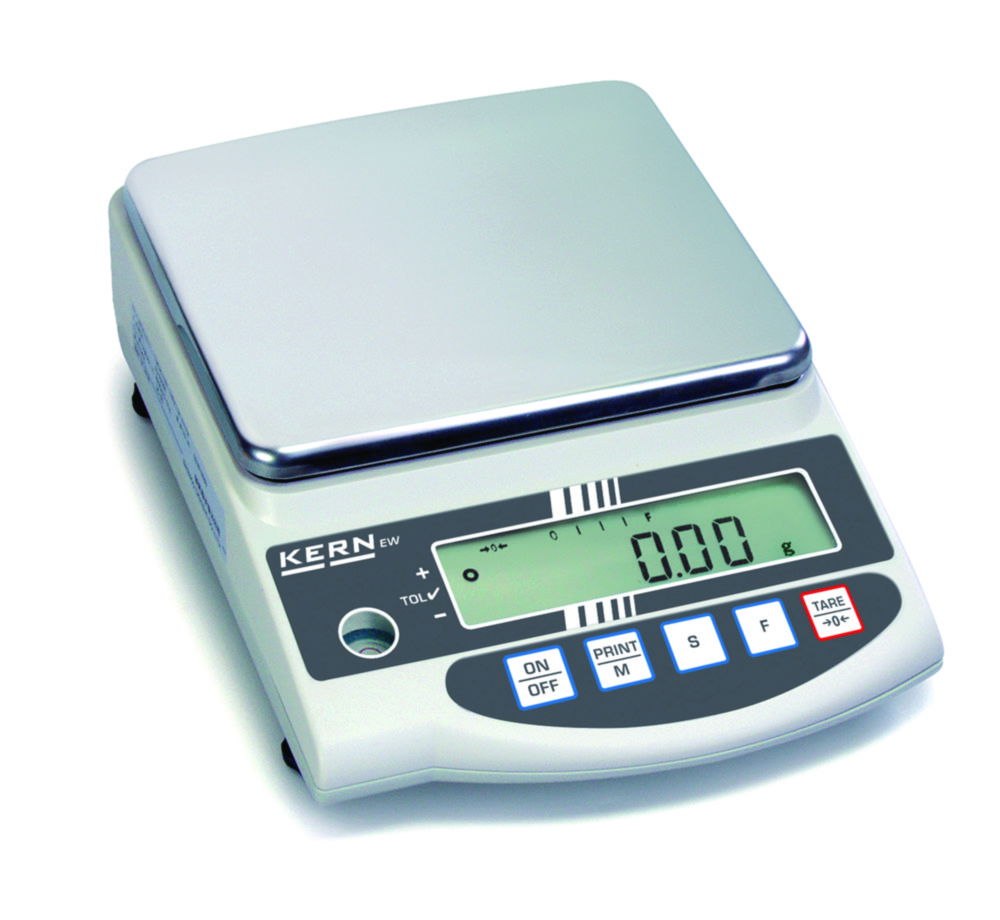

Precision balances type EW-N and EG-N
High quality laboratory balances, housed in a robust and stable plastic casing. With bar graph capacity display which shows the current available weighing range remaining.
- LCD display
- Internal automatic calibration (type EG-N)
- CAL adjustment programme (type EW-N)
- Draught shield supplied with all 0.001g readability models
- Parts counting facility, percentage weighing function, under-balance weighing facility
- Weighing with tolerance range
- RS-232 data interface
Scope of supply: Precision balance, protective working cover
Optional available: Thermal printer, statistics printer, internal Akku-Pack, DKD calibration certificate for balance and optional test weight
Toote variatsioonid
| Adjusting program | Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Linearity | Max. load | Max. voltage | Catalog number | Plug type | Power supply | Readability | Reproducibility | Type | Verified calibration | Weighing plate (WxD) | Width | Width weighing plate | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,2 g | 12000 g | 230 V | 9.901 014 | EU/CH | 230 V, 50 Hz | 0,1 g | 0,1 g | EW12000-1NM | Not verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| External | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,003 g | 620 g | 230 V | 9.901 009 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EW620-3NM | Not verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| External | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,003 g | 420 g | 230 V | 9.901 008 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EW420-3NM | Not verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| External | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,01 g | 2200 g | 230 V | 9.901 011 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EW2200-2NM | Not verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| Internal | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,004 g | 620 g | 230 V | 9.901 015 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EG620-3NM | Verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| External | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,02 g | 4200 g | 230 V | 9.901 012 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EW4200-2NM | Not verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| External | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,002 g | 220 g | 230 V | 9.901 007 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EW220-3NM | Not verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| Internal | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,01 g | 2200 g | 230 V | 9.901 016 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EG2200-2NM | Verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| Internal | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,003 g | 420 g | 230 V | 9.901 019 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EG420-3NM | Verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| Internal | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,02 g | 4200 g | 230 V | 9.901 017 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EG4200-2NM | Verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| Internal | 235 mm | 118 mm | 180 x 235 x 165 mm | 165 mm | ±0,002 g | 220 g | 230 V | 9.901 018 | EU/CH | 230 V, 50 Hz | 0,001 g | 0,001 g | EG220-3NM | Verifiable | Ø 118 mm | 180 mm | - | Yes | 1.00 | ||
| External | 235 mm | 160 mm | 180 x 235 x 75 mm | 75 mm | ±0,03 g | 6200 g | 230 V | 9.901 013 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EW6200-2NM | Not verifiable | 180 x 160 mm | 180 mm | 180 mm | No | 1.00 | ||
| External | 235 mm | 140 mm | 180 x 235 x 75 mm | 75 mm | ±0,01 g | 820 g | 230 V | 9.901 010 | EU/CH | 230 V, 50 Hz | 0,01 g | 0,01 g | EW820-2NM | Not verifiable | 170 x 140 mm | 180 mm | 170 mm | No | 1.00 |
