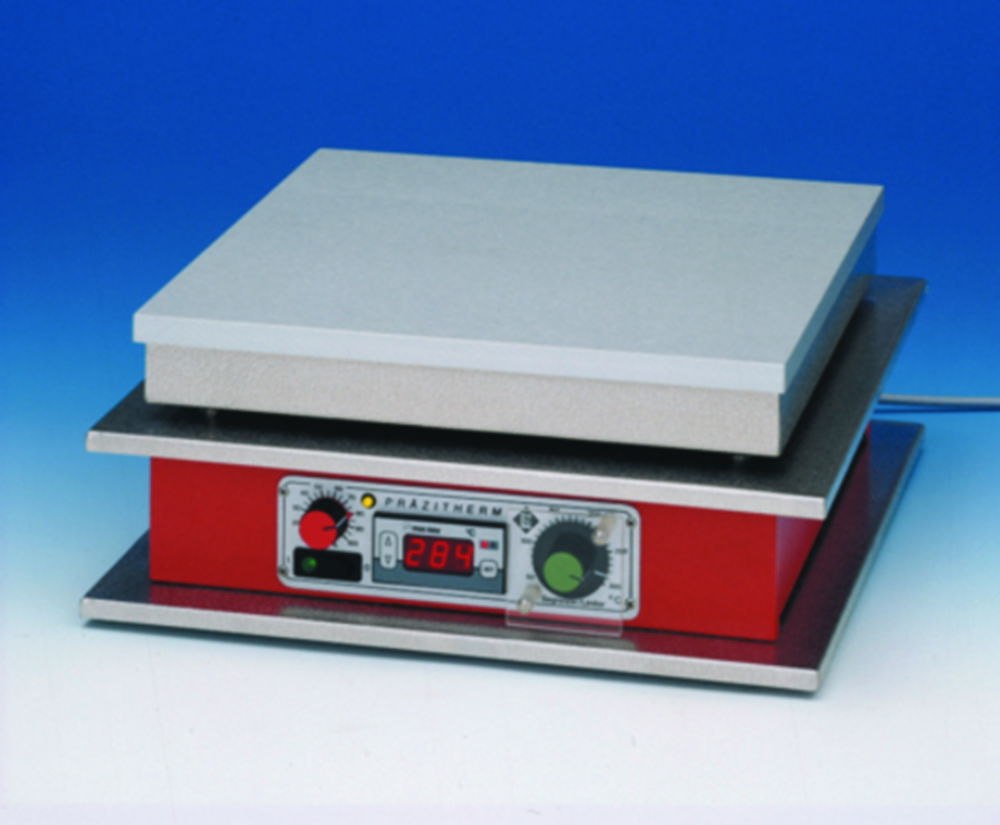

Precision hotplates PZ

For continuous operation. Provide extremely accurate, uniform temperatures, even in plate corners and on edges. Polished anodised aluminium heating surface. Microprocessor-controlled temperature controller with temperature setting up to 99.9 in 0.1 °C steps, over 99.9 in 1 °C steps. Actual temperature displayed continuously. With separate power controller for performance adjustment to the heating requirements from 10 to 100 %. Built-in relay allows direct connection of electronic contact thermometers.

Toote variatsioonid

Depth heating area	Depth	Dimensions (WxDxH)	Display	Heating capacity	Height	atr_llg_material_hotplate	Max. temperature	Max. voltage	Min. temperature	atr_llg_no_of_hotplates	Catalog number	Power supply	Type	Weight	Width heating area	Width	PK
280 mm	300 mm	210 x 300 x 135 mm	Digital	500 W	135 mm	Aluminium alloy	110 °C	230 V	-30 °C	1	9.645 827	230 V, 50...60 Hz	PZ 28-1	7 kg	200 mm	210 mm	1.00
350 mm	365 mm	365 x 365 x 155 mm	Digital	2200 W	155 mm	Aluminium alloy	300 °C	230 V	-50 °C	1	9.645 824	230 V, 50...60 Hz	PZ 35	14 kg	350 mm	365 mm	1.00
160 mm	200 mm	620 x 200 x 155 mm	Digital	2000 W	155 mm	Aluminium alloy	300 °C	230 V	-50 °C	1	9.645 829	230 V, 50...60 Hz	PZ 60	12 kg	610 mm	620 mm	1.00
280 mm	300 mm	210 x 300 x 135 mm	Digital	1100 W	135 mm	Aluminium alloy	300 °C	230 V	-50 °C	1	9.645 828	230 V, 50...60 Hz	PZ 28-2	7 kg	200 mm	210 mm	1.00
580 mm	610 mm	445 x 610 x 185 mm	Digital	3300 W	185 mm	Aluminium alloy	300 °C	230 V	-50 °C	1	6.201 063	230 V, 50...60 Hz	PZ 72-230	22 kg	430 mm	445 mm	1.00
